Ignition Blower

Product catalog summary

Introduction
The document discusses the TRIAC S ECONOMY ignition blower from Leister, designed for use in woodchip and pellet heating systems. It highlights the growing trend of using such systems due to their ecological benefits and independence from oil price fluctuations.

Specifications
The TRIAC S ECONOMY is available in two models: 1600 W and 1000 W. It operates at a voltage of 230 V and a frequency of 50/60 Hz, with a maximum temperature of 600°C. The airflow rate is 230 l/min at 20°C, with a static pressure of approximately 3000 Pa. The noise level is 65 dB, and the device weighs 1.3 kg. It conforms to Flicker Standards and RoHS Directives and has a protection class of II.

Features
The ignition blower is designed for fast and safe ignition, with electronic protection for the heating element. The blower and heating element can be controlled separately. Accessories include a connection adapter for the air hose, which is not included in the delivery.

Benefits of Wood Heating
Wood heating is CO2 neutral, supports local suppliers, and is not affected by oil price fluctuations. It ensures a long-term fuel supply.

Additional Products
Leister offers other devices like the ELECTRON, HOT JET S, and MISTRAL, catering to different space and power requirements.

Company Information
Leister Process Technologies is headquartered in Switzerland and is ISO 9001:2000 certified. They have a global network of over 120 sales and service centers in more than 60 countries.

Catalog excerpts

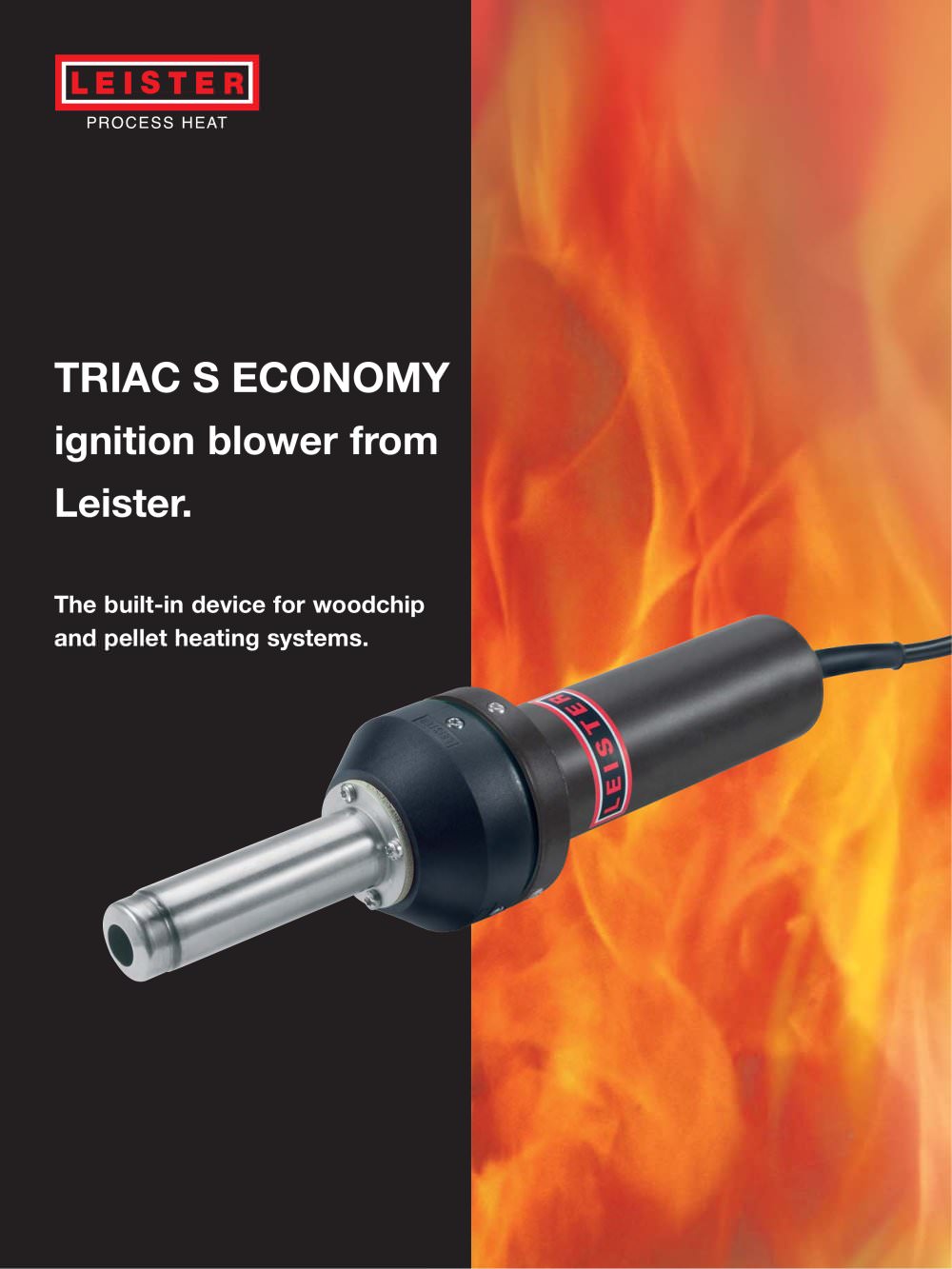

The built-in device for woodchip and pellet heating systems. >

Open the catalog to page 1

Heating with wood the right approach TRIAC S ECONOMY ignition blower b CO > 2 neutral: The same amount of CO > 2 is released on burningas the wood has absorbed during its growth b Built-in device for fast and safe ignition b Operational safety thanks to electronic protection of the heatingelement b Shorter transport routes b Regional resources are used and your local suppliers supportedas a result b Blower and heating element can be controlled separately b Fulfils Flicker Standards and RoHS Directives b No dependence on fluctuations in the price of oil b Long-term assured fuel supply Technical...

Open the catalog to page 2

Pellet / woodchip boiler principle 1 Pellet / woodchip silo2 TRIAC S ECONOMY ignition blower3 Combustion chamber4 Heat exchanger Accessories: Connection adapter for air hose (not included in scope of delivery) Leister every time. Besides the TRIAC S ECONOMY, there are other device types available depending on your space and power requirements. ELECTRON the most powerful in theteam. MISTRAL ֖ the long-distance runner. HOT JET S small and smart. It may sometimes be necessary for woodenbased materials to be dried. MISTRAL accomplishes this task with ease.On request Fits also in small house heaters....

Open the catalog to page 3

Leister Process Technologies is an ISO 9001:2000 Headquarters: certifiedenterprise. Leister Process Technologies Galileo-Strasse 10 6056 Kaegiswil/Switzerland phone:+41 41 662 74 74 fax: +41 41 662 74 16 [email protected] > Specifications are subject to change without prior notice Our close worldwide network of more than 120 Sales and Service Centres in more than 60 countries. Copyright by Leister > 4 Zɼndgeblse / ENG / 01.07 / 04.08 / Ident No. 128.346 size="-2">

Open the catalog to page 4
