Overview
The Leica T-Scan TS 50-a is an advanced line scanner integrated with the Leica Absolute Tracker, forming a robust measurement system for industrial metrology. This system offers six degrees of freedom and is capable of measuring large volumes without the need for photogrammetric targets after relocation, ensuring time efficiency and accuracy.

Key Features and Benefits

Improved Accuracy: The system boasts up to 25% better accuracy compared to previous models, with optimized laser optics for better data quality on dark or shiny surfaces.
Efficiency: The scanning process is faster, with a doubled data rate allowing large surfaces to be scanned in half the time.
Adaptability: The system automatically adjusts laser intensity for different surface types, eliminating the need for powdering and making it user-independent.
Environmental Resilience: Insensitive to environmental light, reducing the need for light adjustments.

System Specifications

Measurement Volume: Up to 50 m (164 ft) with T-Cam XR, with a 360° horizontal and ±45° vertical acceptance angle.
Performance: Tracking speed exceeds 1 m/s in all directions, with an acceleration of 1g.
Sensor Capabilities: Measuring depth of 78 mm, mean scan width of 90 mm, and a line frequency of up to 140 lines/second.
Accuracy: Measurement accuracy is ±20 μm, with specific uncertainties for spatial length, sphere radius, and plane surface.
Operating Conditions: Suitable for temperatures between +16°C to +24°C, with storage temperatures ranging from -10°C to +60°C.

Company Information
Hexagon Metrology, part of Hexagon, provides a wide range of metrology solutions across various sectors including automotive, aerospace, and medical. With extensive global facilities and distribution networks, Hexagon Metrology supports customers throughout the product lifecycle, enhancing manufacturing quality and efficiency.

For more information, visit www.hexagonmetrology.com.

Catalog excerpts

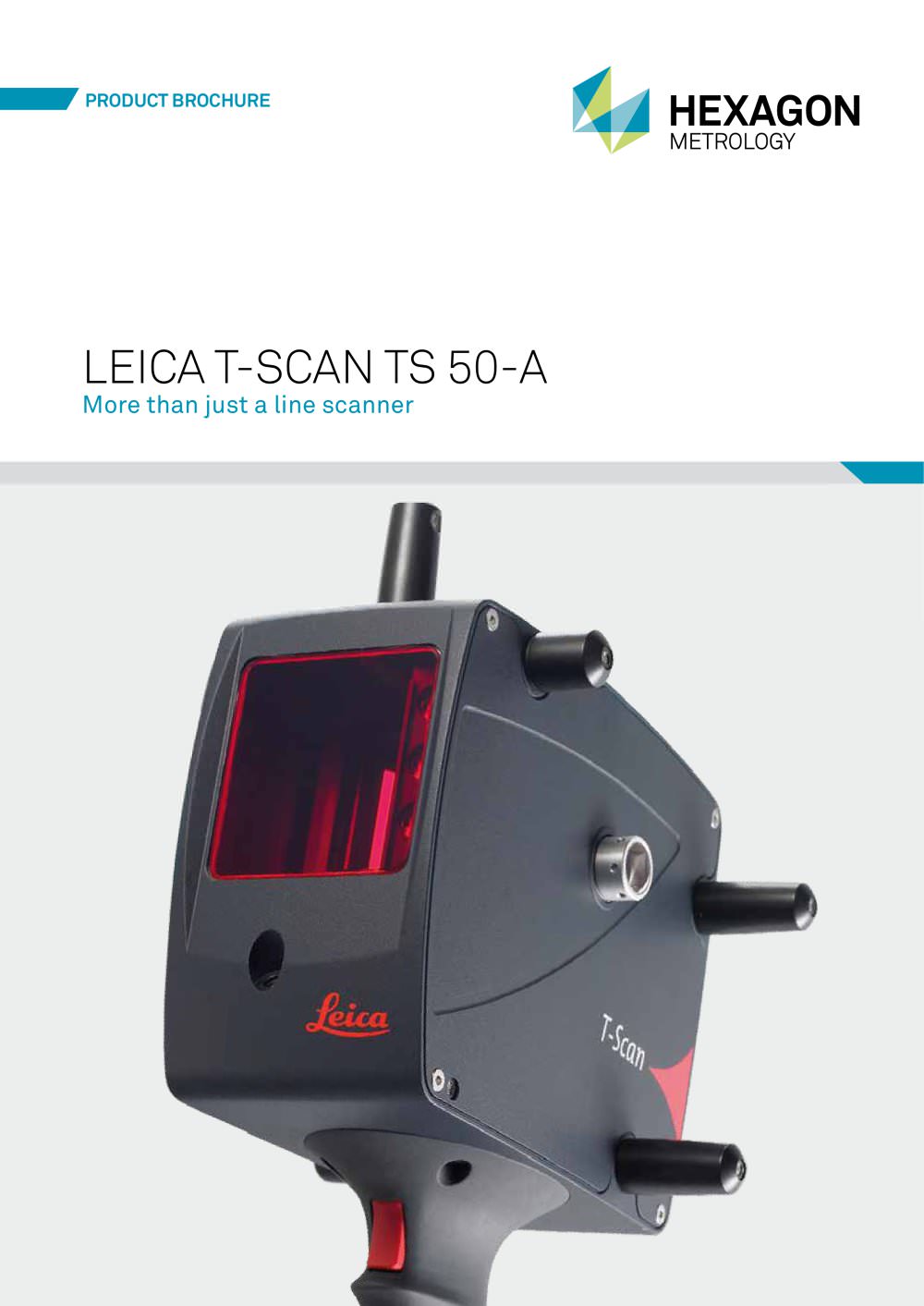

PRODUCT BROCHURE More than just a line scanner

Open the catalog to page 1

Advanced scanning technology in a 6DoF measurement system Leica T-Scan and Leica Absolute Tracker – the dream team of industrial metrology. This tracking solution offers 6 degrees of freedom and measures very large volumes. The Leica Absolute Tracker does not need to be relocated once it is set up. And if the measurement object is extremely large, no photogrammetric targets are required after the tracker relocation. Save time and do not compromise on accuracy. The Flying Dot technology is the only truly automated scanning solution. The adjustment of the laser power to obtain the best measurement...

Open the catalog to page 2

System specifications Leica T-Scan TS50-A Measurement volume Max. volume Leica AT 901-MR (ø) 18 m (59 ft) Max. volume Leica AT 901-LR (ø) 30 m (98 ft) Max. volume Leica AT 901-LR with T-Cam XR (ø) 50 m (164 ft) Horizontal 360° Vertical ± 45° Weight Leica T-Scan Acceptance angle (Freedom to rotate) Pitch angle Yaw angle Roll angle Measurement uncertainty of sphere radius (2 sigma) UR = ± 50 um if under 8.5 m (± 0.002” if under 27.9 ft) UR = ± 16 um + 4 um/m if greater than 8.5 m ((± 0.0006 “ + 0.00005”/ft if greater than 27.9 ft) US = ± 85 um + 1.5 um/m (±0.0033” + 0.00002”/ft) Measurement uncertainty...

Open the catalog to page 3

Laser Trackers & Stations Portable Measuring Arms Gantry CMMs Multisensor & Optical Systems Precision Measuring Instruments Hexagon Metrology offers a comprehensive range of products and services for all industrial metrology applications in sectors such as automotive, aerospace, energy and medical. We support our customers with actionable measurement information along the complete life cycle of a product – from development and design to production, assembly and final inspection. BRIDge CMMs White light scanners For more information, visit www.hexagonmetrology.com © 2013 Hexagon Metrology. Part...
