Overview:

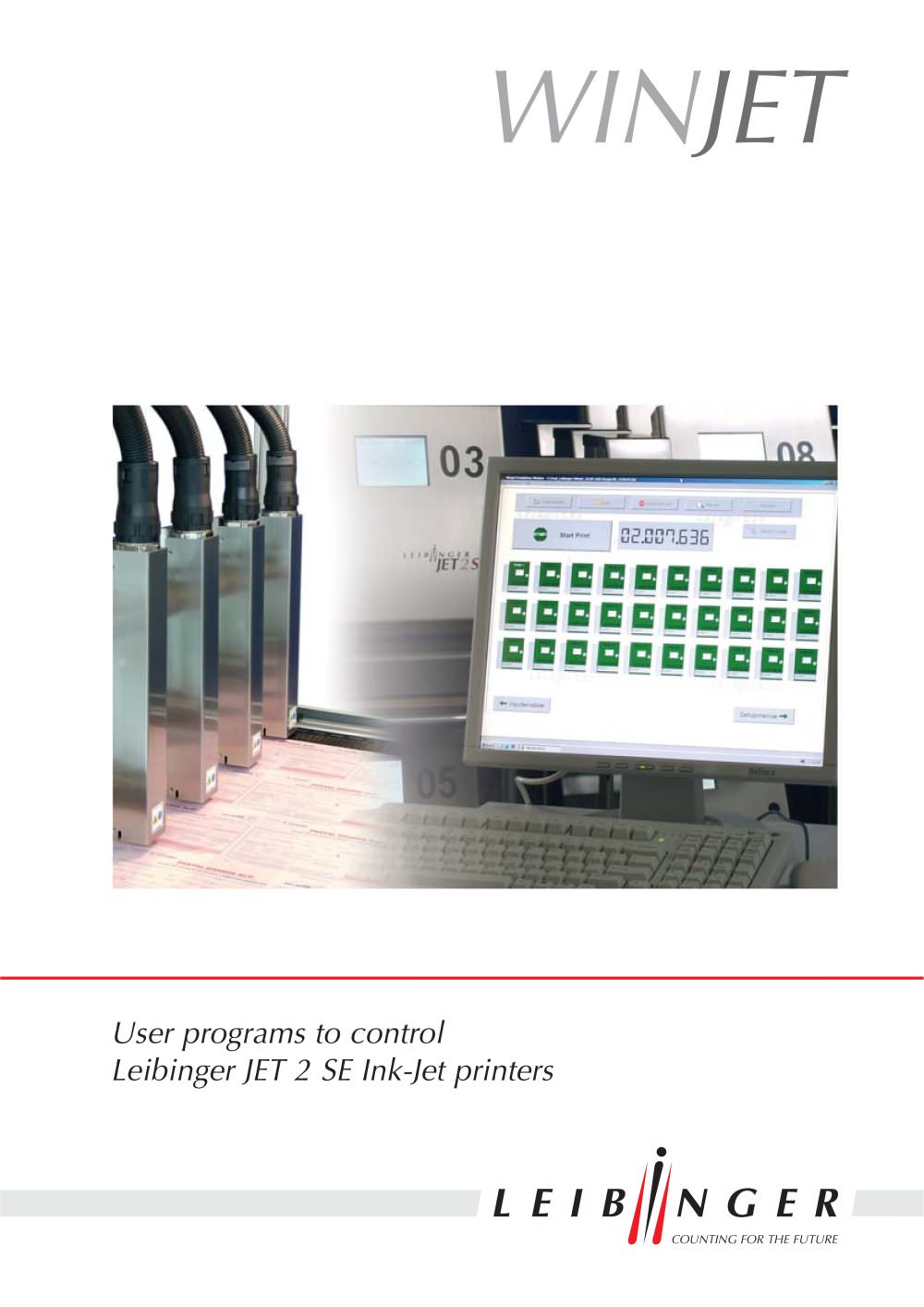

The document provides a detailed description of the user programs WINJET and WINJET Mailing, designed to control Leibinger JET 2 SE Ink-Jet printers. These programs allow for the preparation and management of printing tasks through a PC interface, offering enhanced control and functionality compared to the integrated touch screen display.

WINJET:
WINJET is a Windows-based program that enables operators to create and manage printing texts and jobs. It supports the integration of graphics created in an independent editor and allows for the connection and control of up to 30 printers via a serial interface. Key features include remote activation and deactivation of printers, status monitoring, and consumable alerts.

WINJET Mailing:
This software extends the capabilities of WINJET by allowing the printing of variable data from databases. It is suitable for applications such as mail addressing and printing lottery ticket numbers. WINJET Mailing supports various data formats and offers database management features, making it a reliable tool for complex printing tasks.

System Requirements:

• PC with Pentium™ IV-Processor (1.7 GHz) or higher
• Microsoft® XP® Professional
• Minimum 50 MB available hard disk space
• Minimum 20 MB RAM (512 MB recommended)
• Graphics card with at least 1024 x 768 resolution
• Double Speed CD drive or faster
• Mouse or compatible pointing device
• One available COM-interface (RS232) per printer

Text formats supported include TXT and XLS, with a maximum transfer rate of 38400 Baud.

Contact Information:
Paul Leibinger GmbH & Co. KG, Daimlerstr. 14, 78532 Tuttlingen, Germany. Phone: +49 (0) 74 61 / 92 86 - 0, Fax: +49 (0) 74 61 / 92 86 - 199, Website: www.leibinger-group.com, Email: [email protected]
