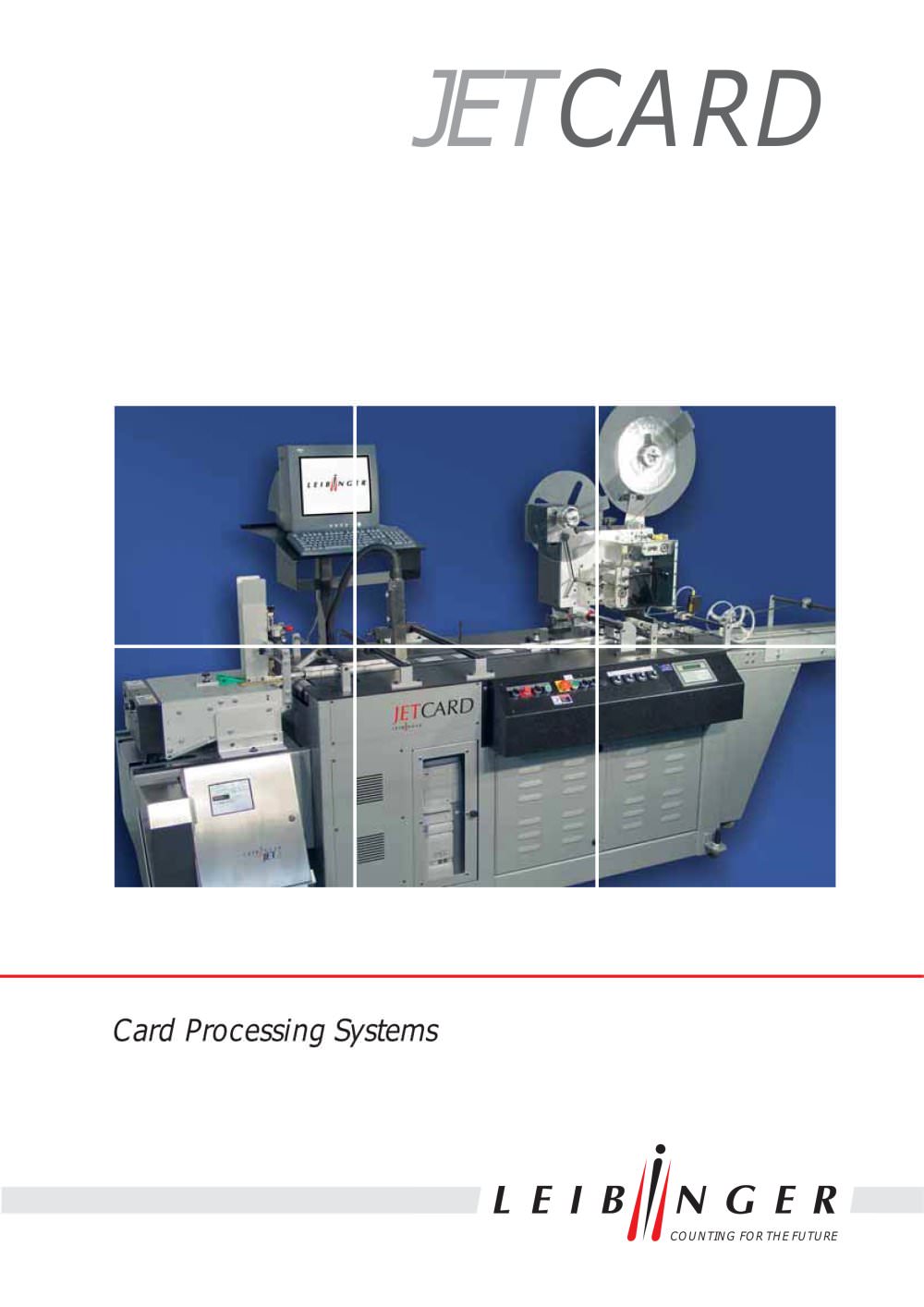

Overview: The Leibinger JETCARD is a versatile card processing system designed for plastic and cardboard cards. It includes a friction-feeder, vacuum transport base, label applicator, and shingle conveyor. The system is equipped with Leibinger JET 2 ink-jet print heads for printing on cards, controlled via a PC or integrated controller using the Leibinger WINJET Addressing software.

Printing and Verification: The system typically uses two print heads, with the option to add more. The unique nozzle seal ensures instant start and minimal maintenance. The Leibinger LKS camera system follows the ink-jet heads to verify printed data, ensuring 100% accuracy in variable data like barcodes and graphics.

Label Application: A label head applies scratch-off labels to cover sensitive information like pin numbers. The system includes automatic speed compensation for precise label placement.

Optional Features: Additional devices such as a divert gate for faulty cards and a shingle conveyor are available to meet specific needs.

Specifications: The JETCARD handles card sizes from 51 x 76 mm to 279 x 216 mm, with thicknesses from 0.18 mm to 4.8 mm. It supports various print fonts and inks, and the camera system facilitates easy setup. The system can process up to 30,000 pieces per hour, depending on the print matrix and material.

Physical and Electrical Requirements: The system measures 2363 x 1193 x 1778 mm and weighs 400 kg. It operates on 230 VAC, 50 Hz, 10 A or 120 VAC, 60 Hz, 20 Amps.

Contact Information: For more details, contact Paul Leibinger GmbH & Co. KG in Germany or Paul Leibinger Numbering Machine L.P. in the USA.
