Tube Squaring Machine Facing Tool
1 / 3 PagesView full catalog
Tube Squaring Machine Facing Tool
Product catalog summary
Overview: The LEFON SquareDevil is a portable tube squaring and facing machine designed for high purity and sanitary industry fabrication. It is ideal for industries such as Beverage, Dairy, Pharmaceutical, Water Treatment, Food, and Semi-Conductor.
Key Features:
- Capable of facing and beveling most metals including stainless steel, nickel and carbon steels, chrome, copper-nickel alloy, and aluminum.
- Offers a wide range of collets and OD Mounting Saddles to prevent tube distortion.
- Available in three models to accommodate tubes from 1/8” OD to 4 1/2” OD.
- High-quality collets made from stainless steel.
- Can handle tube wall thickness up to 10mm.
- Equipped with a powerful 120/220 volt Metabo electrical motor.
- Includes a micro feed system and a full range of beveling and squaring bits.
Model Specifications:
| Model | Pipe OD (inch) | Pipe OD (mm) | Max Wall Thickness (mm) | RPM | Drive Motor | Input Power | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SquareDevil-1.5 | 0.125”-1.5” | 3.175-38.1 | 4 | 400 | Metabo, 110/220v | 1020w | 4 |
| SquareDevil-2.0 | 0.1875”-2” | 4.76-50.8 | 10 | 160 | Metabo, 110/220v | 1020w | 11 |
| SquareDevil-4.5 | 0.25”-4.5” | 6.35-114.3 | 10 | 140 | Metabo, 110/220v | 1020w | 19 |
Certification: The product is CE Certified, ensuring quality and safety standards.
See more
Catalog excerpts

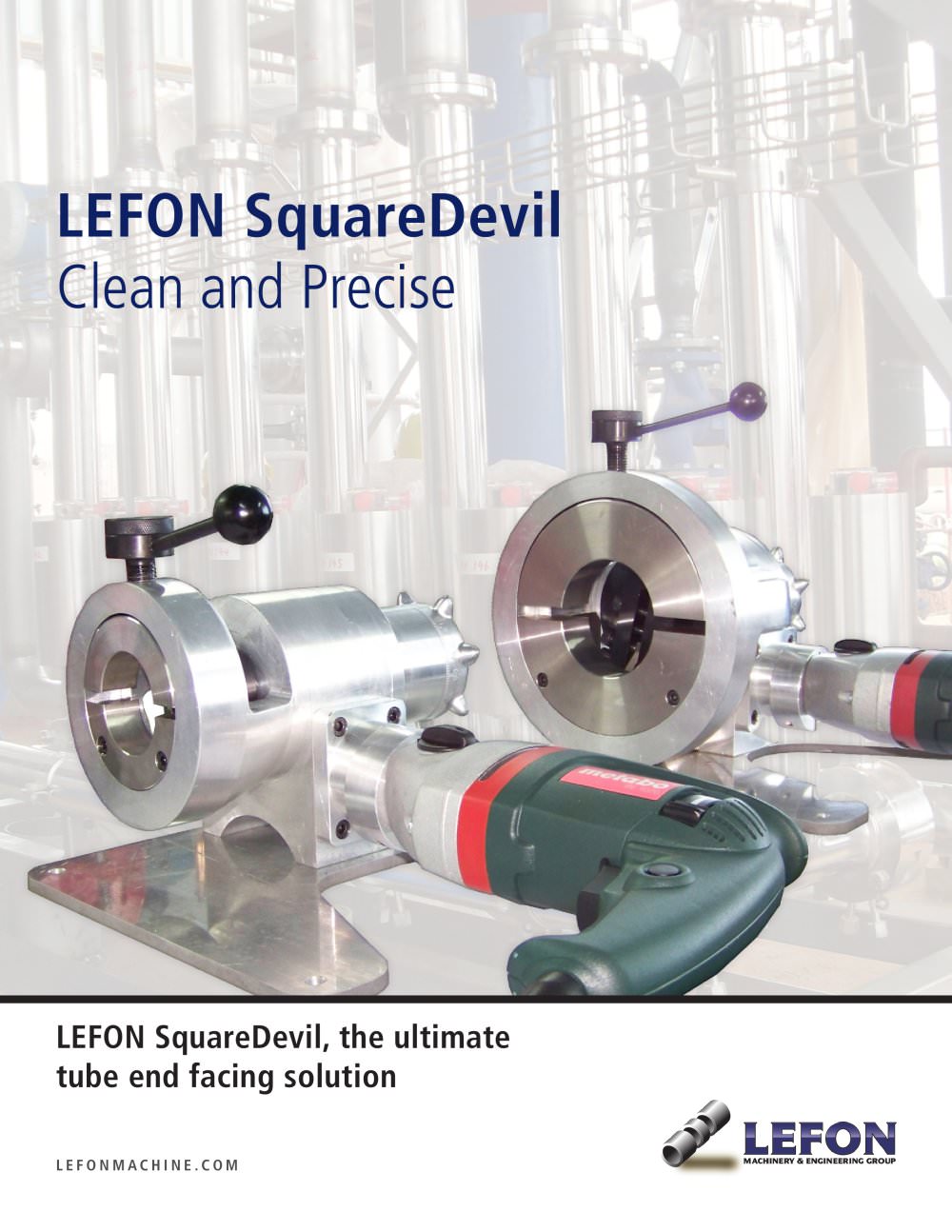

LEFON SquareDevil Clean and Precise > LEFON SquareDevil, the ultimate tube end facing solution LEFONMACHINE.COM size="-2">
Open the catalog to page 1
Facing and Beveling BitsCollet / OD Mounting Saddles SquareDevil (back view)SquareDevil (front view) >
