Pipe Beveling Machine Catalog

Product catalog summary

Overview: The Lefon ET/EV Beveling Machine is a portable device designed for efficient and precise weld preparation on pipes and tubes. It accommodates a range of pipe sizes from ¾” ID to 23 ¾” ID and wall thicknesses from 15mm to 70mm, depending on the model.

Key Features:

Quick Setup: The machine can be set up in under 5 minutes, with easy adjustments for clamping and centering inside the pipe.
Ease of Use: Operated via a motor switch, with a scale wheel for fine-tuning the bevel. Its compact design is suitable for small spaces.
Unique Design: Features ball bearings and self-lubrication for extended life, a high-strength shaft, and a large clamp extension leg for increased rigidity. Special treatments resist wear and erosion.

Specifications: The ET and EV series are powered by METABO electric motors, with models varying in pipe ID, OD, maximum wall thickness, RPM, input power, and weight. The ET series handles up to 20mm wall thickness, while the EV series can manage up to 70mm.

Model Details:

ET1: 3/4”-1” ID, 15mm max wall thickness, 58 RPM, 1020w, 9 kg.
ET3: 1 1/8”-3” ID, 15mm max wall thickness, 55 RPM, 1020w, 10 kg.
ET6: 2 1/2”-6 1/4” ID, 20mm max wall thickness, 35 RPM, 1020w, 22 kg.
ET10: 3 1/8”-9 1/2” ID, 20mm max wall thickness, 16 RPM, 2300w, 35 kg.
EV10: 3 1/8”-9 1/2” ID, 70mm max wall thickness, 16 RPM, 2300w, 44 kg.
ET14: 5 7/8”-13” ID, 20mm max wall thickness, 14 RPM, 2300w, 56 kg.
EV14: 5 7/8”-13” ID, 70mm max wall thickness, 14 RPM, 2300w, 65 kg.
ET24: 11 3/4”-23 5/8” ID, 20mm max wall thickness, 10 RPM, 2300w, 107 kg.
EV24: 11 3/4”-23 5/8” ID, 70mm max wall thickness, 10 RPM, 2300w, 117 kg.

Clamp Extension Leg Chart: Provides details on the range of pipe IDs that can be accommodated with different extension legs, ensuring compatibility across various models.

Catalog excerpts

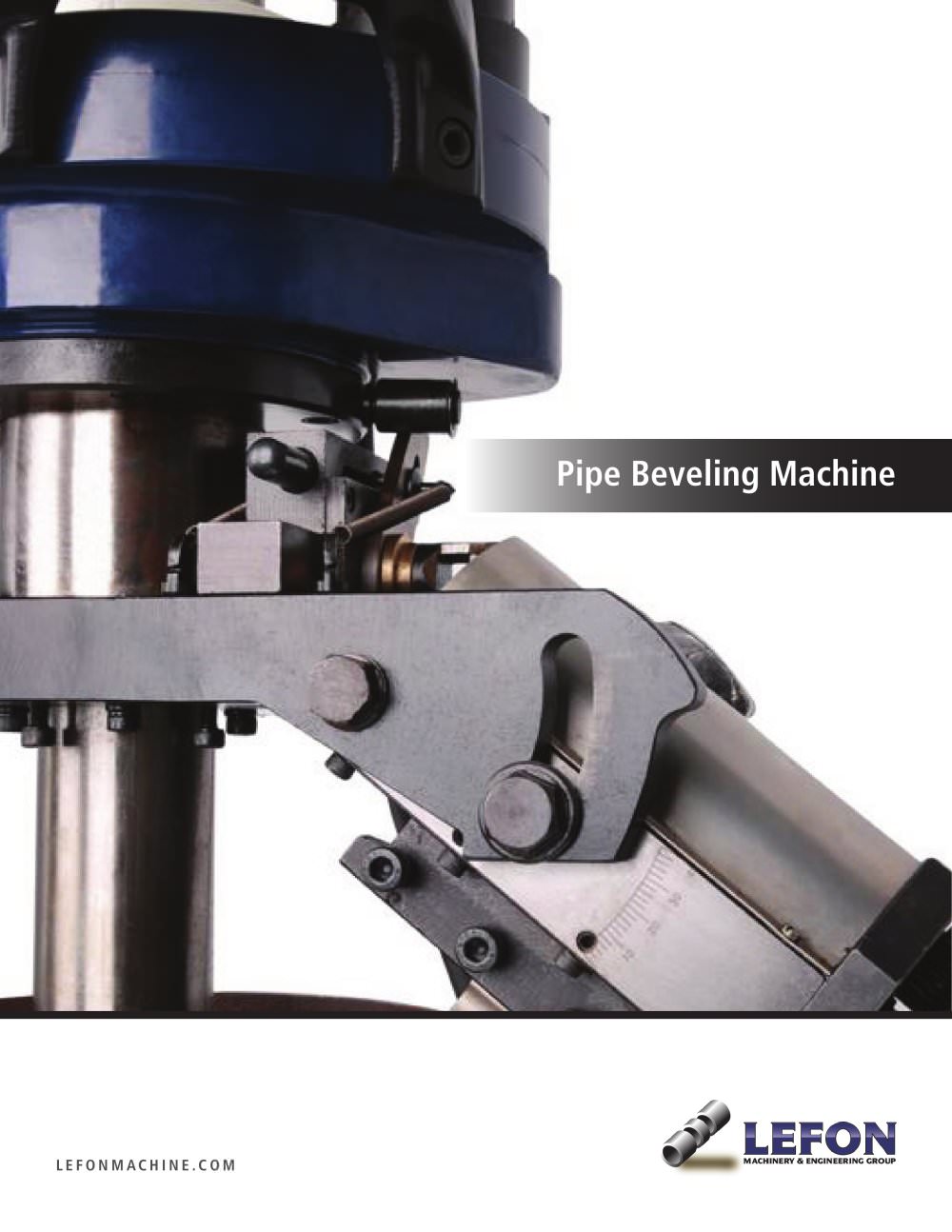

1 | Orbital Pipe Saws | www.lefonmachine.com Pipe Beveling Machine lefonmac h i n e . c om

Open the catalog to page 1

2 | Orbital Pipe Saws | www.lefonmachine.com The LEFON ET/EV Beveling Machine is a portable beveling machine for quick and accurate weld preparation on pipe and tube. A variety of models can meet the requirement to bevel from ¾” ID to 23 ¾” ID pipe. Please check the specifications section for model selection. Depending on the model, the beveling machine can bevel pipe or tube with wall thicknesses from 15mm (9/16”) to 70mm( 2 ¾”). The machines are all ID mounted by a three Clamp Extension Leg mandrel design for square, rigid installation. Different sized clamp legs are used to cover the machine’s...

Open the catalog to page 2
