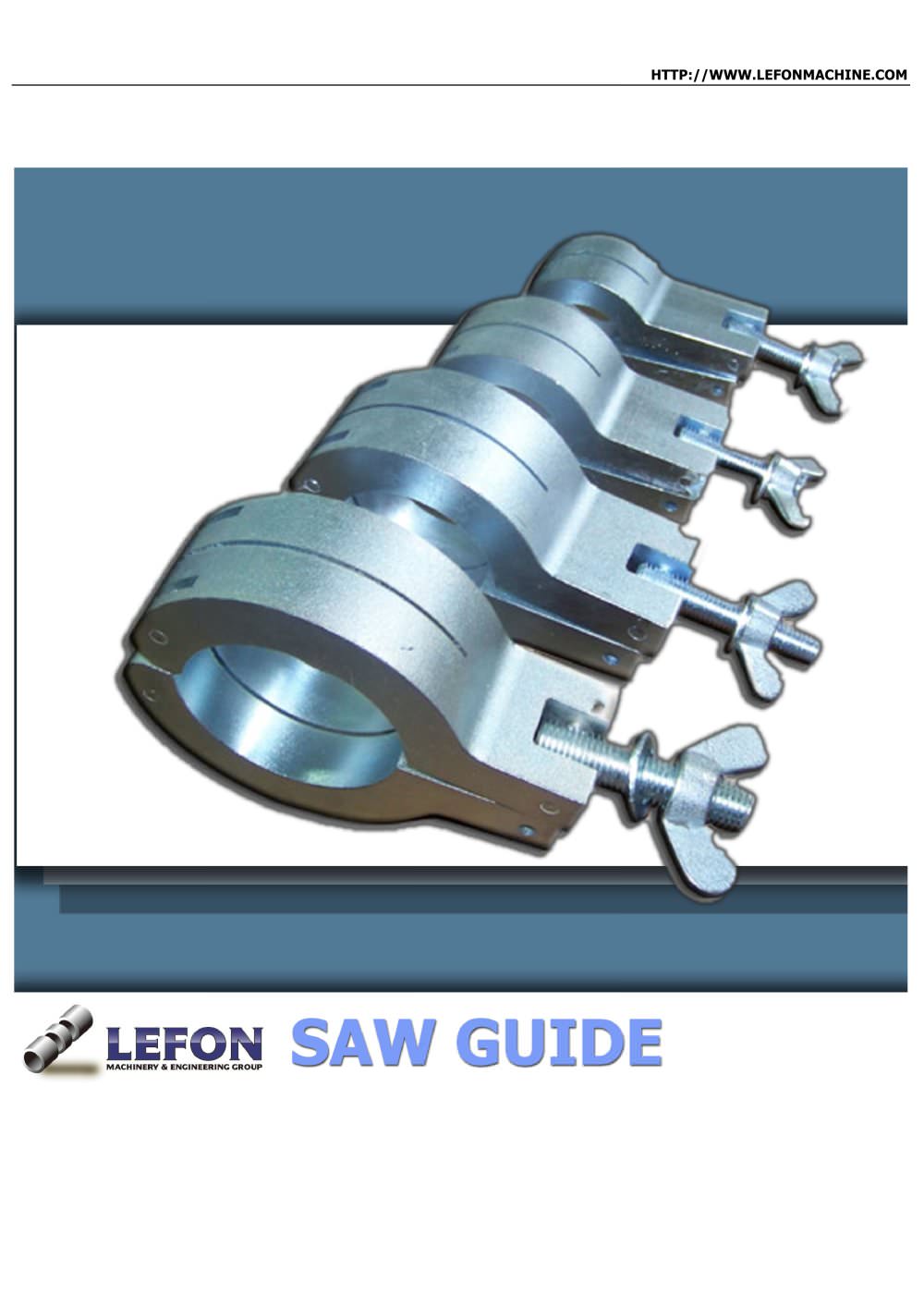

LEFON Saw Guide Catalog

Product catalog summary

Introduction: LEFON introduces a new design of Saw Guide, engineered for durability and ease of use. The guide features rugged hard facing and can double as rounding clamps for welding on non-round pipes.

Specifications: The Saw Guide is available in various models, each tailored for specific outer diameter (OD) sizes of tubes and pipes. The models range from SG050 for 1/2" pipes to SG450 for 4.5" pipes.

Model Details:

SG050: 1/2"
SG075: 3/4"
SG084: 0.840"
SG100: 1"
SG105: 1.050"
SG131: 1.315"
SG150: 1.5"
SG166: 1.660"
SG190: 1.90"
SG200: 2"
SG237: 2.375"
SG250: 2.5"
SG287: 2.875"
SG300: 3"
SG350: 3.5"
SG400: 4"
SG450: 4.5"

Catalog excerpts

HTTP://WWW.LEFONMACHINE.COM Based on customer need, LEFON presents the latest design of Saw Guide that adopts rugged hard facing to ensure durability and convenient usage. If the pipe is not round, this Saw Guide can also work as rounding clamps to facilitate welding. Variety of Saw Guide models are available, customized for different OD size tube/pipe. Tube/Pipe Size Model 1/2" SG050 3/4" SG075 0.840" SG084 1" SG100 1.050" SG105 1.315" SG131 1.5" SG150 1.660" SG166 1.90" SG190 2" SG200 2.375" SG237 2.5" SG250 2.875" SG287 3" SG300 3.5" SG350 4" SG400 4.5" SG450 >
