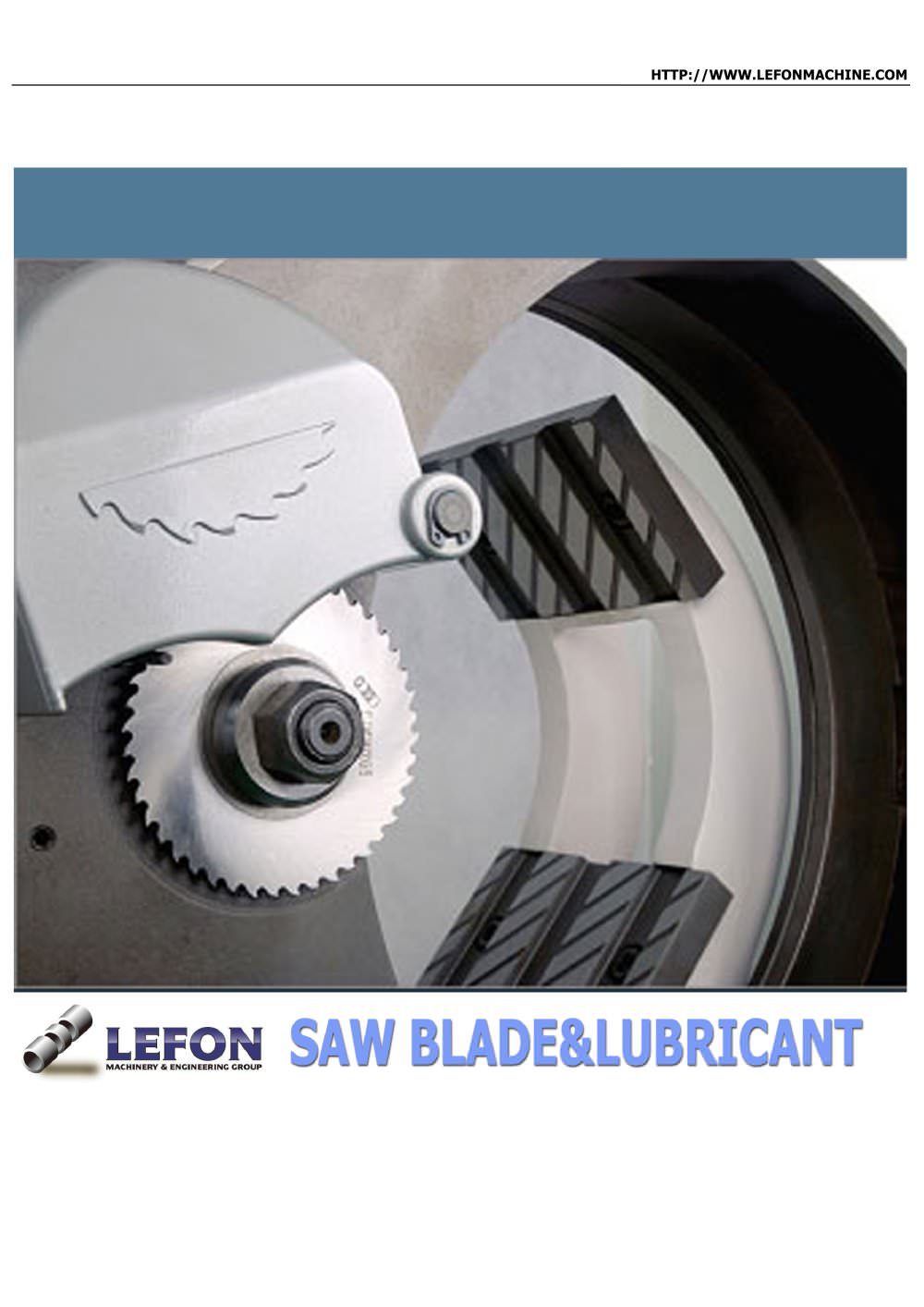

LEFON Saw Blade & Lubricant Catalog

Product catalog summary

Overview: LEFON cutting blades are manufactured in Europe and are compatible with various orbital pipe/tube cutting machines. They are suitable for cutting standard metal materials and come in three classes: Economical, Durable, and Extra-Durable.

Blade Specifications:

Economical Blade: Made from DMo5 Bright, suitable for cutting all kinds of materials, especially soft ones like copper and aluminum. Requires coolant or cutting oil.
Durable Blade: Made from DMo5 Black HAWK, offers high performance for cutting stainless steel and other steels. Suitable for dry cutting or misting fluid cooling.
Extra-Durable Blade: Made from Co5% Black HAWK, ideal for high-performance cutting of materials like titanium, Inconel, and stainless steel. Suitable for dry cutting or misting fluid cooling.

Material Composition: All blades are made from High-Speed Steel (HSS) with varying compositions of Mo, W, Cr, V, and Co.

Hardness: The blades have a hardness range of 63 to 66 Hrc, with surface hardness reaching up to 3400 HV for Durable and Extra-Durable blades.

Working Life: The working life of the blades varies based on the material being cut, with Durable blades lasting 40-60% longer than Standard blades, and Extra-Durable blades lasting 50-100% longer.

Instructions: Economical blades require coolant, while Durable and Extra-Durable blades can be used with dry cutting or misting fluid cooling.

Blade Dimensions and Applications:

Models vary in diameter (OD) and teeth number, suitable for different pipe wall thicknesses.
Popular models include L6364 and L6844, with specific applications for small square pipes and various wall thicknesses.

Operating Speed: Blade rotating speed varies based on the material of the tube/pipe, with specific speed settings for high alloy steel, stainless steel, low alloy steel, plastic, non-ferrous metal, carbon steel pipe, and zinc-coated pipe.

Lubricant/Coolant: Non-toxic lubricant is recommended to lower cutting temperature, extend blade life, and improve cutting results. Usage involves adding 1-2 drops on the blade teeth for every two lines of cutting.

Catalog excerpts

HTTP://WWW.LEFONMACHINE.COM LEFON cutting blade is made in Europe. Three class of blade are available: Economical, Durable, and Extra-Durable. Economical Blade is made from DMo5 Bright, Durable Blade is made from DMo5 Black HAWK, Extra-Durable Blade is made from Co5% Black HAWK The blades has been universally designed and developed for all kind of orbital pipe/tube cutting machine, i.e. this blade can be used on machine from other manufacturers. The blade is suitable for cutting all kind of standard metal material. Standard Durable Extra-Durable his blade is made by HSS This blade is made by...

Open the catalog to page 2

HTTP://WWW.LEFONMACHINE.COM Dimension Cutting Pipe Wall Thickness odel Remarks OD(mm) OD(inch) Teeth Number mm inch L6364 63 2.48 64 1.0--2.5 0.039--0.098 most popular L63100 63 2.48 100 0.7--1.5 0.0276--0.059 L6844 68 2.68 44 2.0--7.0 0.079--0.276 most popular L6872 68 2.68 72 1.0--2.5 0.039-0.098 L8044 80 3.15 44 5.0--10.0 0.197--0.394 L8080 80 3.15 80 1.0--2.5 0.039--0.098 small size of square pipe Operating Speed : Model Materials of Choosing speed Blade Rotating tube/pipe button Speed High alloy steel Lite4 Stainless steel 1-2 150-183 R4 Low alloy steel 3-4 183-216 R6 Plastic R8 non-ferrous...

Open the catalog to page 3
