LEFON Orbital Pipe Saw Catalog

Product catalog summary

Overview:
LEFON Orbital Pipe Saws are designed for precise, square, and clean cuts on various metal pipes, eliminating the need for additional preparation for orbital welding. They offer a cost-effective and reliable solution for cutting and beveling pipes.

Advantages:

Precise right-angle cuts.
Cold cutting to prevent thermal distortion.
Fast and deformation-free pipe clamping system.
Easy setup for different diameters.
Quick execution with a single rotation around the pipe.
Simultaneous cutting and beveling capabilities.
Adjustable cutting speed for different wall thicknesses.

Specifications:

Models: Lite4, R4, R6, R8, R12.
Pipe Outer Diameter (OD) Range: 1/4" to 12".
Wall Thickness Range: 0.02" to 0.4".
Motor Power: 1000W to 1600W.
Blade RPM: 30 to 250.
Voltage/Frequency: 110/220V, 50/60Hz.
Net Weight: 25 kg to 130 kg.
Applications: Suitable for thin-wall stainless steel tubes, stainless steel pipes, low and unalloyed steel, casting materials, non-ferrous metals, copper, aluminum, and plastic pipes.

Operation Procedure:
The cutting process involves manually rotating the machine housing 360 degrees around the pipe using a circular, toothed blade driven by a 1600W motor. The machine includes six-speed regulators for optimal performance.

Included Items:

Pipe cutting/beveling machine.
Base plate.
Three standard class blades.
Ring spanner (SW22).
Two hexagon socket head wrenches.
LEFON saw blade lubricant.
Operation manual.
Spare parts list.

Packaging:

Model dimensions and weights vary, with gross weights ranging from 31 kg to 155 kg.
CE Certified for quality assurance.

Catalog excerpts

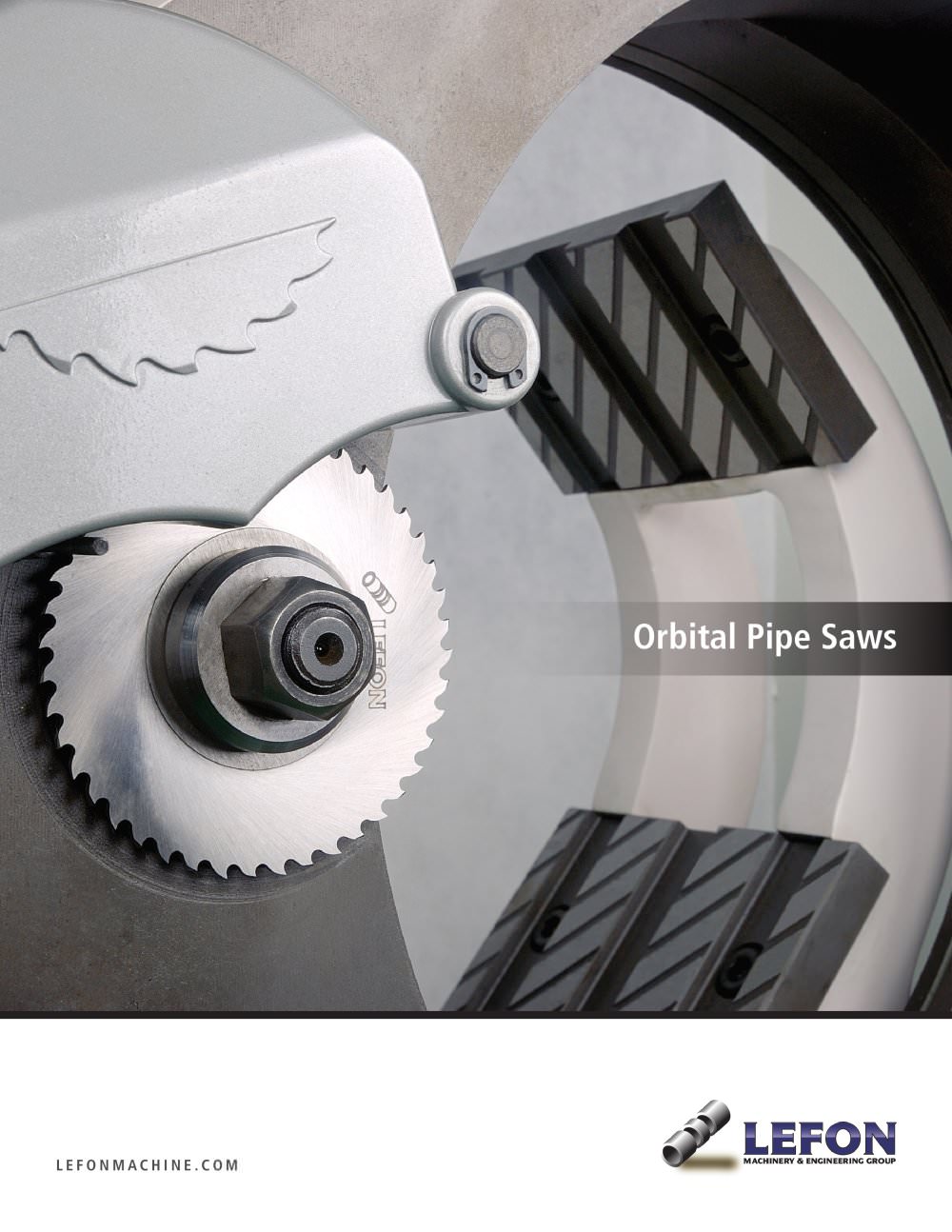

1 | ORBITAL PIPE SAWS | WWW.LEFONMACHINE.COM

Open the catalog to page 2

PART FEATURES: > 2 | ORBITAL PIPE SAWS | WWW.LEFONMACHINE.COM Speed regulatorBlade and cover Machine front view Machine side view Machine back view Rotating joint OPERATION PROCEDURE: Cutting is executed by manually rotating the machine housing 360 degrees around the pipe. With a circular, toothed blade driven by 1600 watt motor, the pipe is cut with one single rotation. It is driven by a powerful and sturdy electric motor equipped with six speed regulators. >

Open the catalog to page 3

ModelLxWxH (mm)Net Weight (kg)Gross Weight (kg)R4 820 x 540 x 470mm75100 > 3 | ORBITAL PIPE SAWS | WWW.LEFONMACHINE.COM Lite4 570x320x390mm2231 R6 920 x 870 x 570mm90117 Lite6 600x330x410mm2434 R8 1050 x 590 x 670mm105133 R12 1050 x 590 x 790mm123155 >

Open the catalog to page 4
