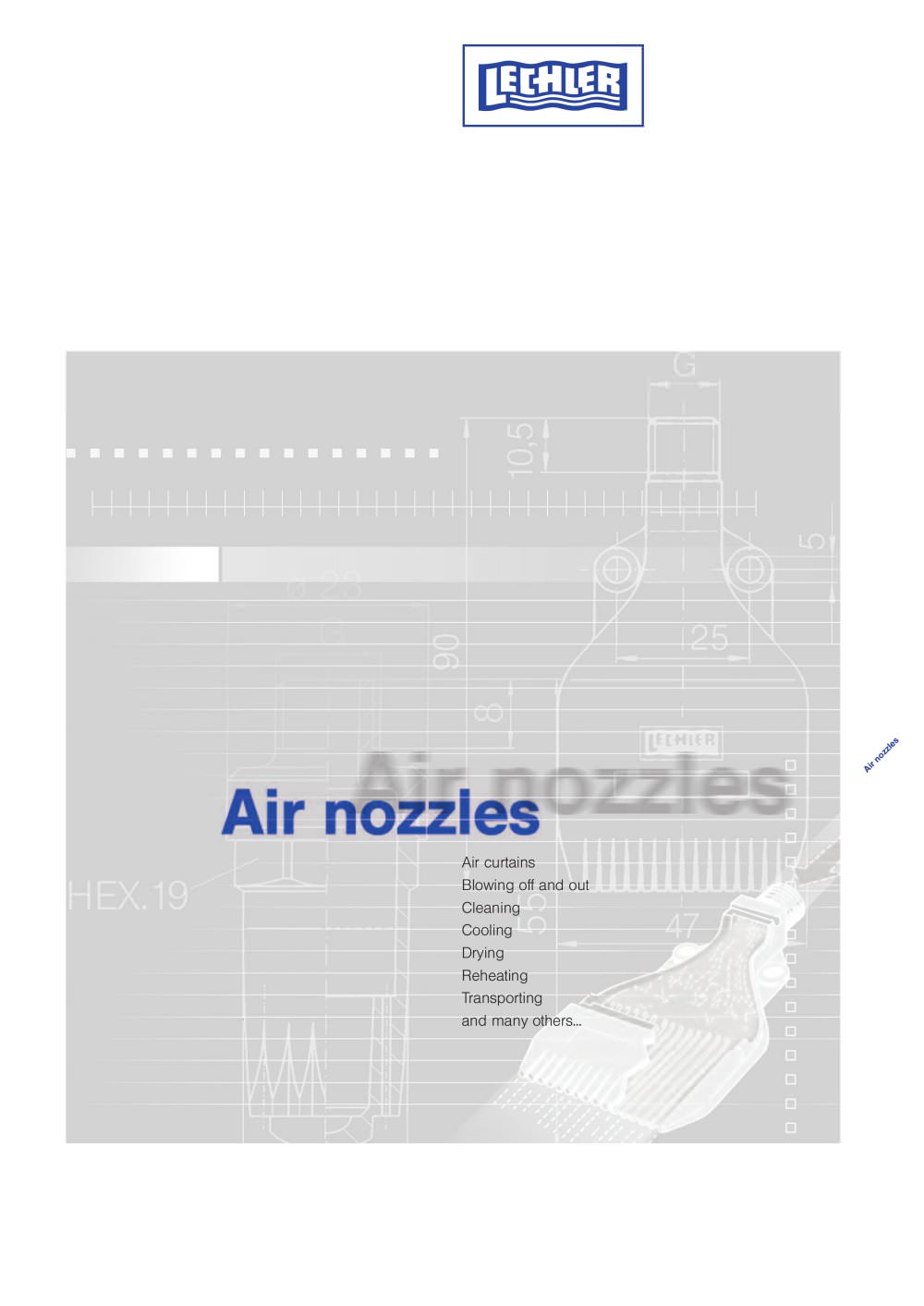

Compressed air nozzles

Product catalog summary

Overview: The document provides detailed information on air nozzles, specifically designed for applications involving compressed air or saturated steam. These nozzles are used in various industrial processes such as blowing off, cooling, drying, and cleaning.

Specifications: The document outlines different types of air nozzles, including multi-channel air nozzles, flat fan nozzles, and solid stream nozzles. Each type is designed to optimize air flow, reduce noise levels, and minimize air consumption.

Multi-channel Air Nozzles: These nozzles are highlighted for their ability to reduce noise levels by up to 12 dB while maintaining high blowing power and low air consumption. They achieve this by partitioning the air inflow into multiple channels, resulting in a uniform and powerful air jet.

Flat Fan Nozzles: These nozzles are suitable for applications such as blowing off liquids, cooling, reheating, and drying. They are designed for easy nozzle changing and simple jet alignment.

Solid Stream Nozzles: These nozzles are used for targeted blowing out and blowing off, producing a powerful air jet with a punctiform impact pattern. They are particularly effective for injecting steam into liquids and compressed air into bulk goods.

Noise and Air Consumption: The document includes comparative data on noise levels and air consumption for different nozzle types, emphasizing the efficiency of multi-channel designs in reducing operational costs and noise pollution.

Applications: The nozzles are applicable in various industrial settings for tasks such as cleaning, drying, cooling, and conveying materials. The document also mentions the use of air guns for targeted applications.

Materials and Design: The nozzles are available in various materials, including ABS, aluminum, and stainless steel, each suited for specific temperature and pressure conditions.

Conclusion: Lechler's range of air nozzles offers significant advantages in terms of noise reduction, air consumption, and operational efficiency, making them suitable for a wide range of industrial applications.

Catalog excerpts

600. 326. 5K/3Wmounted on a compressed air gun. 600. 326. 5K (ABS)T > max : 50踰C > Hex T > max : 90C600. 326. 3W (Zinc) > Material: POMMaterial: Brass 600. 388. 30 (Brass, POM) T > max : 50ӰC Ordering no.TypeCodeConnection thread GWeight > ACHGACHG600. 326. 5K(Material: ABS)600. 326. 3W(Material: Zinc) > 1 / > 4 BSPPM 12 x 1,25 > /h] /h] 3 3 1 / > 4 BSPPM 12 x 1,259 g47 g AAHG600. 388. 30(Material: Brass/POM) > 1 / > 8 BSPPM 12 x 1,2512 g > Blaskraft [N] Noise level [db(A)] Blowing power [N] Luftverbrauch [Nm Geruschpegel [dB(A)] 12345 54 3 2 10Luftdruck [bar] 12345 10090 80 70 600Luftdruck [bar]...
