UPS Futura series

Product catalog summary

Overview
The Futura series by Layer Electronics is a highly advanced industrial Uninterruptible Power Supply (UPS) designed to ensure total security from mains-related issues. Developed with over 50 years of experience, it represents state-of-the-art technology in energy stabilization and static conversion.

Specifications
The Futura series is available in both single-phase (1-Ph) and three-phase (3-Ph) versions, with power capacities ranging from 5 kVA to 1600 kVA. It features a sine wave output with less than 2% harmonic distortion and a crest factor of 3:1 for non-linear loads. The UPS is highly efficient, with an efficiency rate of over 92%, and includes a static switch for mains-UPS transfer with a transfer time of less than 2 ms.

Components and Technology
The UPS uses high-quality components and a Digital Signal Processor (DSP) for management, providing robust protection under harsh electrical and environmental conditions. It includes an insulation transformer for load protection and supports adaptive parallel connections for high load requirements.

Battery and Protection
The UPS supports sealed lead-acid batteries, with options for NiCd, Li-Ion, and NaNiCl2. It features electronic protection against overload, overtemperature, and voltage irregularities, along with EMI/RFI filtering.

Environmental and Compliance
The operating temperature range is 0°C to 50°C, with a non-condensing humidity tolerance of 0% to 95%. The noise level is below 60 dBA at 1 meter, and the protection rating is IP20. The UPS complies with various standards, including EN 62040-3, and holds CE Marking for EMC and low voltage directives.

Applications
The Futura series is used in diverse applications, including civil and military sectors, and is installed on Italian Military Navy aircraft carriers. Its reliability and robustness make it suitable for critical environments.

Catalog excerpts

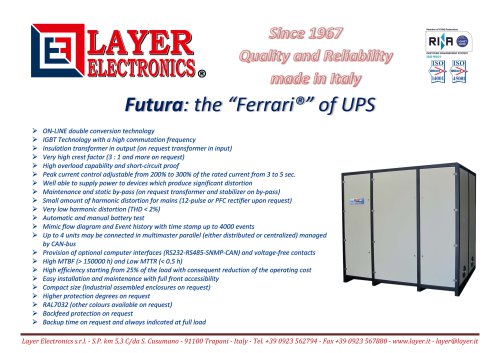

ON-LINE double conversion technology IGBT Technology with a high commutation frequency Insulation transformer in output (on request transformer in input) Very high crest factor (3:1 and more on request) High overload capability and short-circuit proof Peak current control adjustable from 200% to 300% of the rated current from 3 to 5 sec. Well able to supply power to devices which produce significant distortion Maintenance and static by-pass (on request transformer and stabilizer on by-pass) Small amount of harmonic distortion for mains (12-pulse or PFC rectifier upon request) Very low harmonic distortion (THD < 2%) Automatic and manual battery test Mimic flow diagram and Event history with time stamp up to 4000 events Up to 4 units may be connected in multimaster parallel (either distributed or centralized) managed Provision of optional computer interfaces (RS232-RS485-SNMP-CAN) and voltage-free contacts High MTBF (> 150000 h) and Low MTTR (< 0.5 h) High efficiency starting from 25% of the load with consequent reduction of the operating cost Easy installation and maintenance with full front accessibility Compact size (Industrial assembled enclosures on request) Higher protection degrees on request RAL7032 (other colours available on request) Backfeed protection on request Backup time on request and always indicated at full load Layer Electronics s.r.l. - S.P. km 5,3 C/da S. Cusumano -91100 Trapani - Italy - Tel. +39 0923 562794 - Fax +39 0923 567880 - www.layer.it - [email protected]
