Overview
The Next Generation Nd:YAG Laser Cutting Head by DurableLaser Mech is designed for enhanced durability and reliability, suitable for integration into existing robotic systems or OEM designs. It features a compact design that withstands harsh environments and offers advanced laser processing technology.

Key Features

Internally plumbed wiring and assist gas lines to prevent snags and breaks.
External height sense motion to avoid lens contamination.
Cartridge style lens drawer for easy access and maintenance.
Remote Actuation Drive System (patent pending) for reduced size and weight, offering flexibility in motor and drive selection.

Specifications

Power Rating: Up to 1.5 kW
Recollimating Lens: 70 mm
Focusing Lens: 70 mm focal length, 28 mm diameter
Clear Aperture: 25 mm
Nozzle Tip: Cold Formed, 1.2 mm exit hole
Assist Gas Pressure: Up to 20 BAR (300 psi)
Weight: Less than 5 kg (10.75 lbs.)
Length: 340 mm (13.385 in.)
Slide Travel: 50 mm (2 in.)
Max. Travel Speed: 100 mm/sec.
Standoff Distance: Recommended 1-2 mm, Range 0.5 mm to 3.5 mm
Electrical Supply: 120 VAC, 1-Phase, 47-63 Hz
Interface Inputs/Outputs: 24 VDC, optically isolated
Interlocks: Adjustable from 4-40 psid for head integrity monitoring

Contact Information
Laser Mechanisms, Inc., 25325 Regency Drive, Novi, Michigan 48375 USA. Phone: (248) 474-9480, Fax: (248) 474-9277. In Europe: Phone: +32(0)92 18 70 70, Fax: +32(0)92 18 70 79. Web: www.lasermech.com, E-Mail: [email protected]

Catalog excerpts

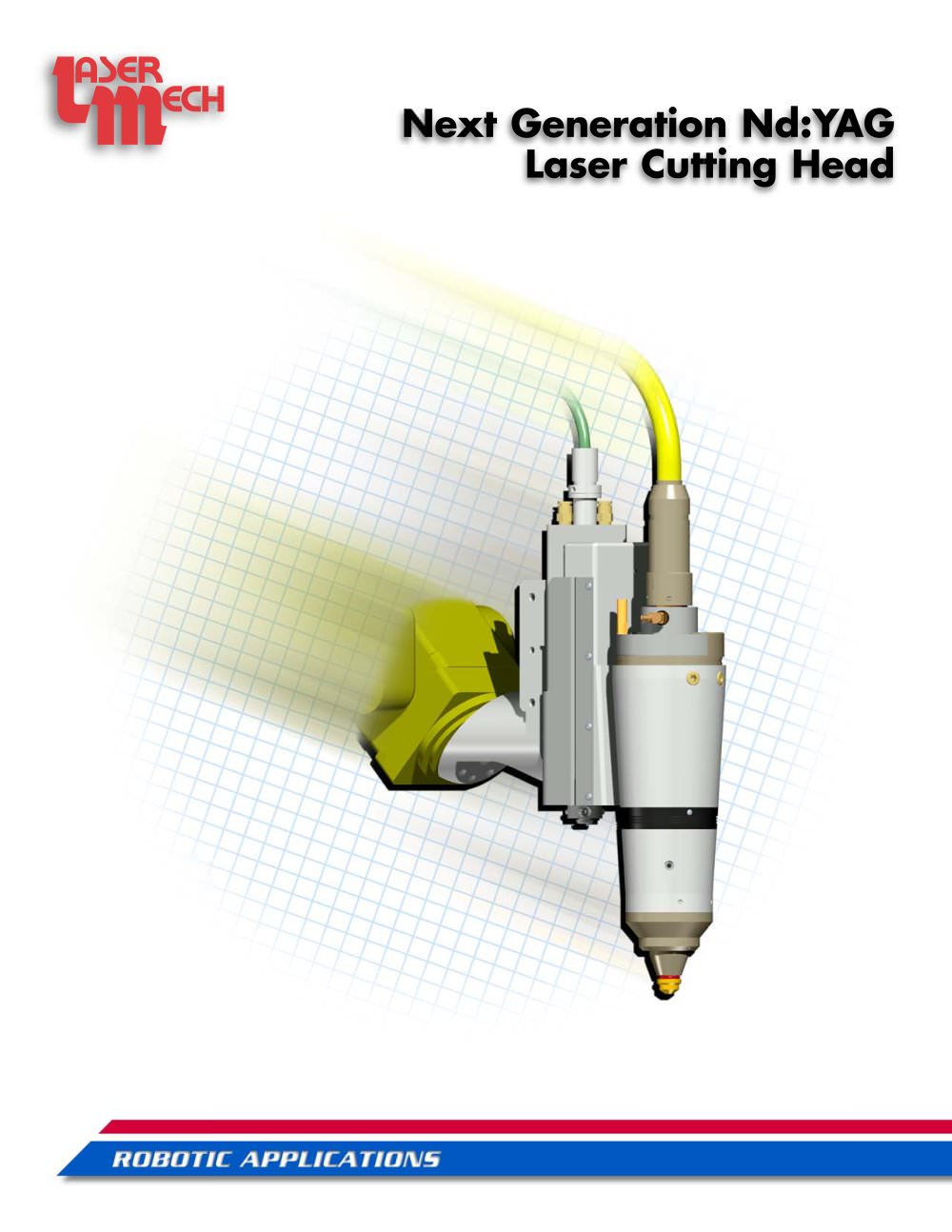

Next Generation Nd:YAG Laser Cutting Head

Open the catalog to page 1

Durable Laser Mech Next Generation Nd:YAG Laser Cutting Head Cartridge style lens drawer provides quick and easy access to the cover glass slide. Cleaning and replacement requires no tools and can be performed in a matter of seconds. Key Features • All wiring and assist gas lines are internally plumbed – avoiding costly snags and breaks • External height sense motion eliminates the chance of lens contamination from dust pumping or potentially dirty purge air • Cartridge style lens drawer provides quick and easy access to the cover glass slide • Remote Actuation Drive System (patent pending) isolates...

Open the catalog to page 2

Maintenance Friendly e Specifications Power Rating up to 1.5 kW Recollimating Lens 70 mm Focusing Lens (Focal Length) 70 mm Focusing Lens (Diameter) 28 mm Clear Aperture 25 mm Nozzle Tip Cold Formed, exit hole 1.2 mm Assist Gas Pressure up to 20 BAR (300 psi) Assist Gas Connection 1/8" NPT Weight < 5 kilograms (10.75 lbs.) Length 340 mm (13.385 in.) Slide Travel 50 mm (2 in.) Max. Travel Speed 100 mm/sec. Standoff Distance (Recommended) 1-2 mm Standoff Distance Range 0.5 mm to 3.5 mm Number of Standoff Settings 8 Non-Contact Sampling Rate 0.5 msec. to 10 msec. Electrical Supply 120 VAC, 1-Phase,47-63...

Open the catalog to page 3

Laser Mechanisms, Inc. 25325 Regency Drive • Novi, Michigan 48375 USA Phone: (248) 474-9480 • Fax: (248) 474-9277 In Europe: Phone: +32(0)92 18 70 70 • Fax: +32(0)92 18 70 79 Web: www.lasermech.com • E-Mail: [email protected]

Open the catalog to page 4
