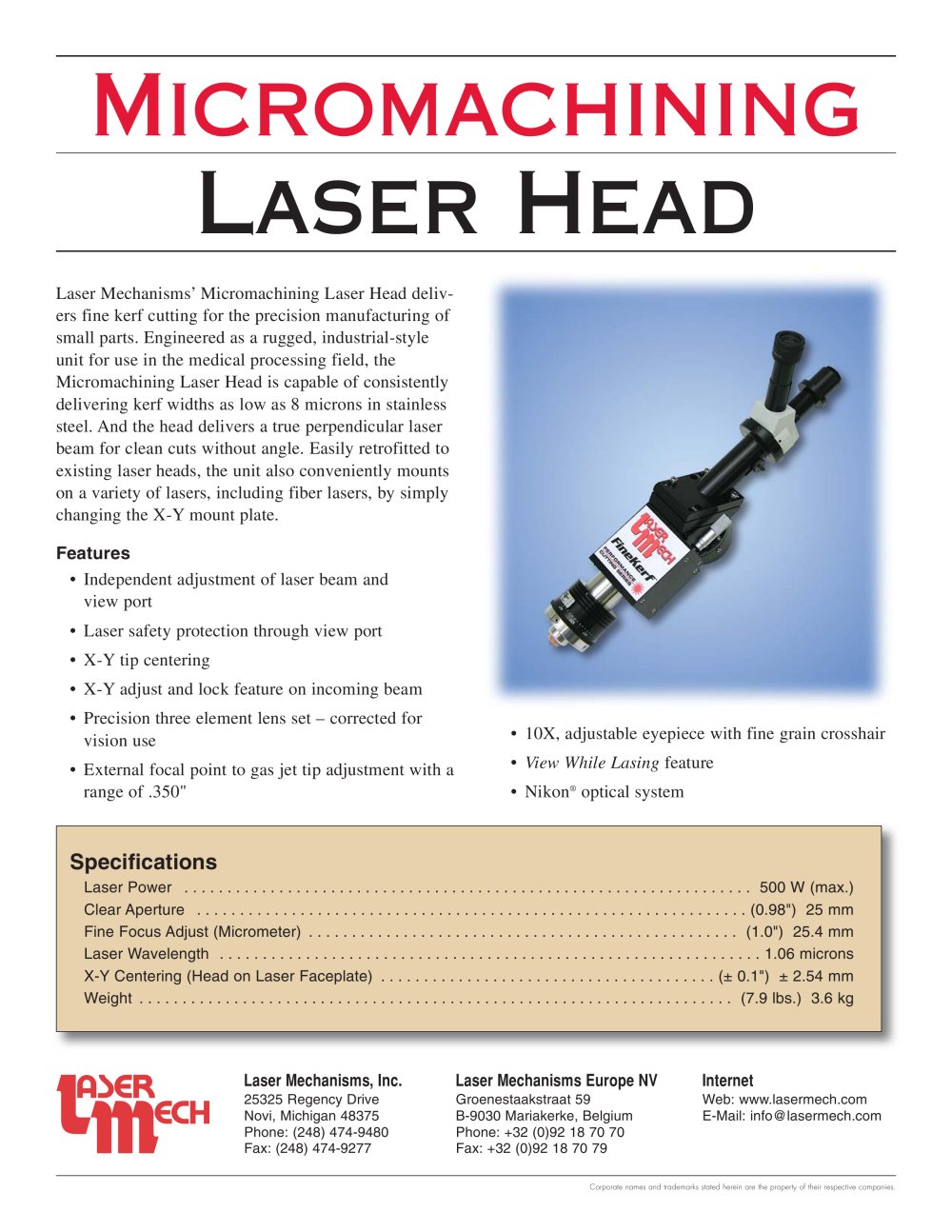

Micromachining Laser Head Laser Mechanisms’ Micromachining Laser Head delivers fine kerf cutting for the precision manufacturing of small parts. Engineered as a rugged, industrial-style unit for use in the medical processing field, the Micromachining Laser Head is capable of consistently delivering kerf widths as low as 8 microns in stainless steel. And the head delivers a true perpendicular laser beam for clean cuts without angle. Easily retrofitted to existing laser heads, the unit also conveniently mounts on a variety of lasers, including fiber lasers, by simply changing the X-Y mount plate. Features • Independent adjustment of laser beam and view port • Laser safety protection through view port • X-Y tip centering • X-Y adjust and lock feature on incoming beam • Precision three element lens set – corrected for vision use • External focal point to gas jet tip adjustment with a range of .350" Specifications Laser Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 W (max.) Clear Aperture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (0.98") 25 mm Fine Focus Adjust (Micrometer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1.0") 25.4 mm Laser Wavelength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.06 microns X-Y Centering (Head on Laser Faceplate) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (± 0.1") ± 2.54 mm Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (7.9 lbs.) 3.6 kg Laser Mechanisms, Inc. 25325 Regency Drive Novi, Michigan 48375 Phone: (248) 474-9480 Fax: (248) 474-9277 Laser Mechanisms Europe NV Groenestaakstraat 59 B-9030 Mariakerke, Belgium Phone: +32 (0)92 18 70 70 Fax: +32 (0)92 18 70 79 Internet Web: www.lasermech.com E-Mail: info@lasermech.com Corporate names and trademarks stated herein are the property of their respective companies. • 10X, adjustable eyepiece with fine grain crosshair • View While Lasing feature • Nikon® optical system
