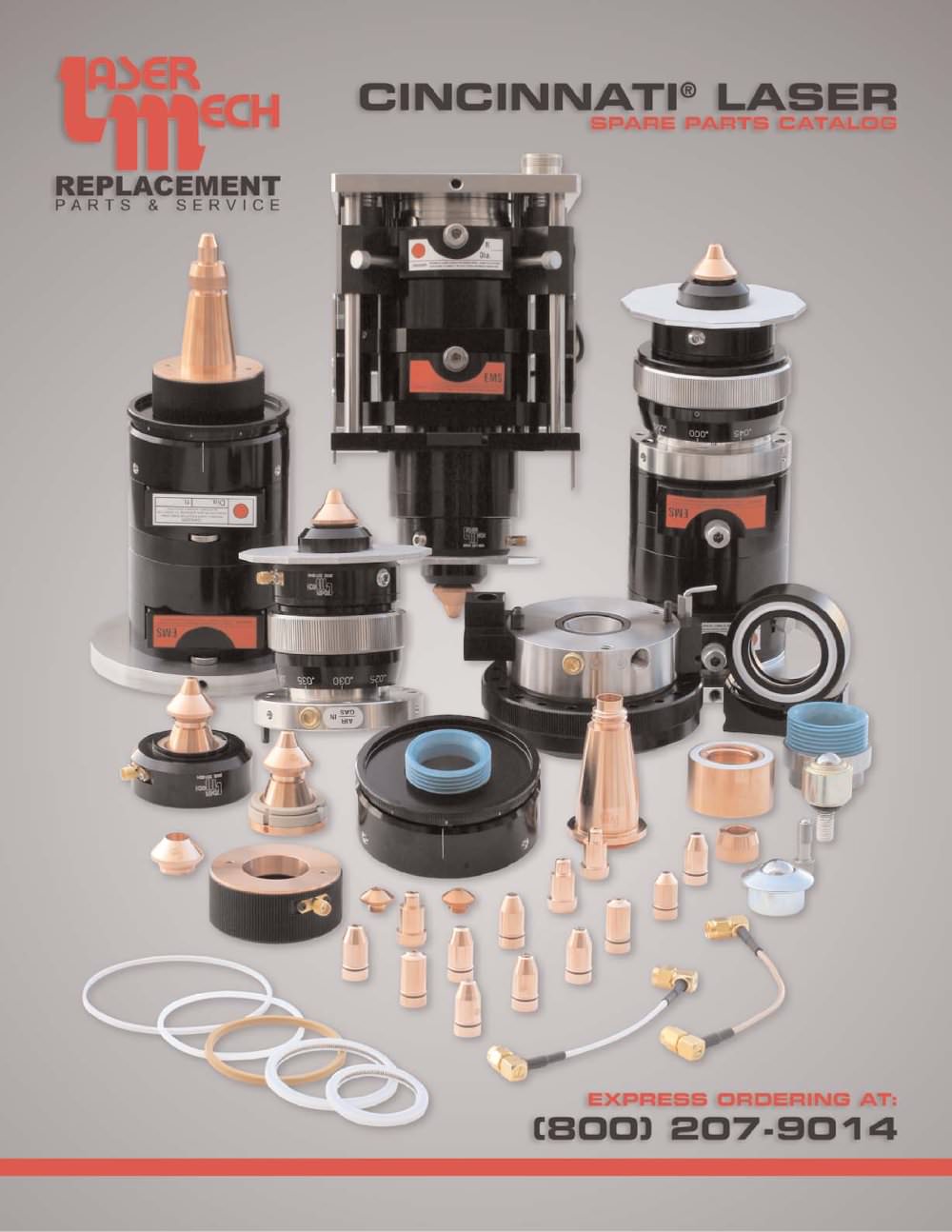

Cincinnati Laser Spare Parts Catalog
20Pages

CINCINNATI LASER SPARE PARTS CATALOG withyour process requirements.While this catalog includes a comprehensive list of our Cincinnati laser spareparts and optics, it is by no means our entire product line. If there is an item you dont see or if you just have a question, give us a call at on target on time and it will be , it will be delivered to you . At LaserMech RPS we are always ready to exceed your expectations.Sincerely,Charles FredrickGeneral Manager . . . . . . . . . . . . . . . . . . . . . . . . > on hand (800) 207-9014 Dear Cincinnati Laser System Owner:Welcome to our all-new...

PLLPZ0033B 5.00" WD 1.5" Dia.,Black Lens PLLPZ0052B 7.50" WD ֖ 1.5" Dia.,Black Lens > PLZRS0002 907971 Total Reflector Si,2.0" Dia. PLZRC0002 907464 Total Reflector ֖ Cu,50 mm x 10 mm PLZRC0003 909976 Total Reflector Cu,2.25" Dia. PLZRC0006 910341 Total Reflector ֖ Cu,3.0" Dia. PLZRC0008 922769 Total Reflector Cu,2.25" Dia.,Water-Cooled > PLRRC0004 907463 Phase Shift Mirror ֖ Cu,50 mm x 10 mm PLRRC0005 909975 Phase Shift Mirror Cu,2.25" Dia. PLRRC0009 922515 Phase Shift Mirror ֖ Cu,2.50" Dia. PLRRC0012 922768 Phase Shift Mirror Cu,2.25" Dia.Water-Cooled > PLIRC0006 923414 Anti-Reflective...

PLTRA0346PLTRA0328 923257 Tip Assembly with Shield Tip Assembly without Shield PLTRA0320 923022 Tip Retainer Assembly PLFRK0011 923411 Field Repair Kit for PLTRA0328,PLTRA0346 PLTRA0321 923021 Tip Retainer Nut Tapered PLTRA0163 925284 Tip Retainer Nut for High Capacitance Nozzles PLTRA0051 909657 Tip Retainer Nut Assembly PLTRE0055 PLTRE0057 909658 909681 Tip Retainer Extension (Long 2.357") Tip Retainer Extension (Short 0.857") PLTRA0069 909659 Tip Retainer Locking Nut PLTRA0009 907677 Tip Retainer Nut w/Seal Ring for Surface Follower Guard > PLTTA0009 841836 Tip Transformer Assembly...

PLKIT0051 Saturn IIISeal Kit PLKIT0052 Saturn IV Seal Kit PLKIT0065 Standard Non-Contact Seal Kit > PLSPW0018 923890-X Tip Spanner Wrench for PLTRA0328,PLTRA0346 PLLIT0017 925210 1.5"/2.0" Lens Insertion Tool PLMAT0002 Manifold Alignment Tool for PLTRA0051 PLJAT0002 921915 Jet Alignment Tool for Non-Contact Heads PLTRT0001 909267 Tip Retainer Tool for PLTRA0009 > PLOCK0001 Optics Cleaning Kit PLOCK0002 Optics Cleaning Tissue Booklet (25 count) PLOCK0003 Lens Cleaner (8 oz.) PLOCK0005 Cotton Swabs 6" (100 count) PLOCK0006 Optics Cleaning Tissue ֖ Box (50 booklets) > PLLUB0006 922822...

PLMDL0010 924694 Motor-Driven Non-Contact Head,5.0"/7.5" FL (1.5"/2.0" Dia.Lens) > 1 PLCON0025 Connector Assembly 2 PLEMS0018 924742 Empty Manifold Seal 2A PLMSR0012 912777 Manifold Seal Ring 2B PLAJS0015 Locking Screw Front Adjusting Lens Holder > 3 PLALH0088 924709 1.5" Lens Holder 3A PLLRN0002 909320 1.5" Lens Retainer Nut 3B PLLOR0001 912778 1.5" Lens O-ring 3C PLLSR0001 909321 1.5" Lens Seal Ring 3D PLMSR0012 912777 Manifold Seal Ring 3E PLAJS0003 Lens Adjuster Screw 3F PLAJS0015 Locking Screw ֖ Front Adjusting Lens Holder 4 PLALH0089 924710 2.0" Lens Holder 4A PLLRN0023 2.0" Lens...

PLACF0153 924729 Saturn IV Non-Contact Head,5.0"/7.5" FL (1.5"/2.0" Dia.Lens) > 1 PLADR0330 Magnetic Breakaway Flange 1A PLSCR0005 908532 SHCS 1/4-20 X 4.5" Long 2 PLSBA0156 925001 Air-Cooled Spacer Block 0.250" Thick 2A PLMOR0002 Spacer Block O-ring 3 PLLMB0084 Lens Manifold Block 3A PLDLP0002 922466 Dowel Pin (Round) 3B PLDLP0001 922470 Dowel Pin (Diamond) 4 PLEMS0018 924742 Empty Manifold Seal 4A PLMSR0012 912777 Manifold Seal Ring 4B PLAJS0015 Locking Screw ֖ Front Adjusting Lens Holder 5 PLSBA0144 Air-Cooled Spacer Block 1.00" Thick 5A PLMOR0017 Spacer Block O-ring 5B PLMOR0020 Spacer...

PLACF0132 923602 Saturn IIINon-Contact Head,5.0"/7.5" FL (1.5" Dia.Lens) > 1 PLADR0130 Adapter Ring 1A PLSCR0013 SHCS 1/4-20 X 4.25" Long > 2 PLALH0034 909359 Adjustable Lens Holder 2A PLLRN0002 909320 1.5" Lens Retainer Nut 2B PLLOR0001 912778 1.5" Lens O-ring 2C PLLSR0001 909321 1.5" Lens Seal Ring 2D PLMSR0001 922239 Manifold Seal Ring For focusing lenses,see page 2. 3 PLSBA0001 909357 Air-Cooled Spacer Block 1.00" Thick 3A PLSBS0002 Air-Cooled Spacer Block Seal Kit 3B PLDLP0001 909307 Dowel Pin (Diamond) 3C PLDLP0002 922466 Dowel Pin (Round) 4 PLSBW0036 922882 Water-Cooled Spacer Block...

CINCINNATI LASER SPARE PARTS CATALOG

1 PLADR0130 Adapter Ring 1A PLSCR0011 SHCS 1/4-20 X 4.00" Long > 2 PLALH0034 909359 Adjustable Lens Holder 2A PLLRN0002 909320 1.5" Lens Retainer Nut 2B PLLOR0001 912778 1.5" Lens O-ring 2C PLLSR0001 909321 1.5" Lens Seal Ring 2D PLMSR0001 922239 Manifold Seal Ring For focusing lenses,see page 2. 3 PLSBA0001 909357 Air-Cooled Spacer Block 1.00" Thick 3A PLSBS0002 Air-Cooled Spacer Block Seal Kit 3B PLDLP0001 909307 Dowel Pin (Diamond) 3C PLDLP0002 922466 Dowel Pin (Round) 4 PLSBW0036 922882 Water-Cooled Spacer Block ֖ 0.50" Thick,1/8" NPT 4A PLSBS0001 908575 Water-Cooled Spacer Block Seal...

CINCINNATI LASER SPARE PARTS CATALOG 13Visit us online at www.lasermech-rps.com Email info@lasermech-rps.com >

2 PLALH0034 909359 Adjustable Lens Holder 2A PLLRN0002 909320 1.5" Lens Retainer Nut 2B PLLOR0001 912778 1.5" Lens O-ring 2C PLLSR0001 909321 1.5" Lens Seal Ring 2D PLMSR0001 922239 Manifold Seal Ring For focusing lenses,see Page 2. 3 PLSBW0036 922882 Water-Cooled Spacer Block 0.50" Thick,1/8" NPT 3A PLSBS0001 908575 Water-Cooled Spacer Block Seal Kit 3B PLFTG0020 Jumper 1/8" Tubing w/Fittings 4 PLLMB0001 909360 Lens Manifold Block 4A PLAJS0001 909330 Lens Adjuster Screw 4B PLLTS0001 908121 Lens Thumb Screw 5 PLEMS0001 909361 Empty Manifold Seal 5A PLMSR0001 922239 Manifold Seal Ring 6...

CINCINNATI LASER SPARE PARTS CATALOG 15Visit us online at www.lasermech-rps.com Email info@lasermech-rps.com >

25325 Regency Drive Novi,MI 48375 Phone (800) 207-9014 Օ Fax (248) 474-5598 E-Mail info@lasermech-rps.com Web www.lasermech-rps.com Laser Mech RPS stocks component parts andoptics for all ofthe following manufacturers: ՕAdige Sala > Ε > * Lasercut > ΕAmada > ΕLaser Lab > ΕBalliu > Ε > * Laser Mechanisms > ΕBehrens > ΕLVD > ΕBystronic > ΕMazak > Ε > * Cincinnati > ΕMesser Griesheim > ΕConvergent Prima > ΕMitsubishi > Ε > * Data Technology > Ε > * Strippit > ΕESAB > ΕTanaka > ΕFinn-Power > ΕTrumpf > ΕHankwang > * Original Equipment Replacement Parts Corporate names and trademarks stated...
