Boring Heads & Trepanners

Product catalog summary
Overview: Laser Mechanisms' Boring Heads are designed for efficient cutting and welding of circular shapes, offering high-speed sheet metal hole drilling and boring capabilities. They are available in both automatic and manual configurations.
Specifications:
  • Drilling rates can reach up to 10 holes per second.
  • Hole drilling up to 2 mm diameter with gas jet, and hole boring up to 50 mm diameter without gas jet.
  • Utilizes a unique offset rotating wedge design for beam steering.
  • Wedges are made of Zinc Selenide (ZnSe) for CO2 wavelengths and high-grade fused silica for YAG wavelengths.
  • Requires a collimated beam for optimal laser processing efficiency.
  • Standard configuration includes a 2.5" focal length lens mount, with additional options for 3.75" and 5" focal lengths.
Features:
  • Available in both automatic and manual configurations.
  • Variety of apertures available.
  • Can retrofit to existing laser systems for hole boring operations.
  • Easily interfaced for computer control.
Models:
  • Model PLBHA0001: Automatic Boring Head; 1.1" Nom. Optics
  • Model PLBHM0001: Manual Boring Head; 1.1" Nom. Optics
  • Model PLBHM0007: Manual Boring Head; 2.0" Nom. Optics
  • Model PLBHA0009: Automatic Boring Head; 2.0" Nom. Optics
Contact Information: Distributed by Laser Mechanisms, located at 25325 Regency Drive, Novi, Michigan, USA. Phone: (248) 474-9480, Fax: (248) 474-9277. In Europe, Phone: +32(0)92 18 70 70, Fax: +32(0)92 18 70 79. Website: www.lasermech.com, Email: [email protected].
See more

Catalog excerpts

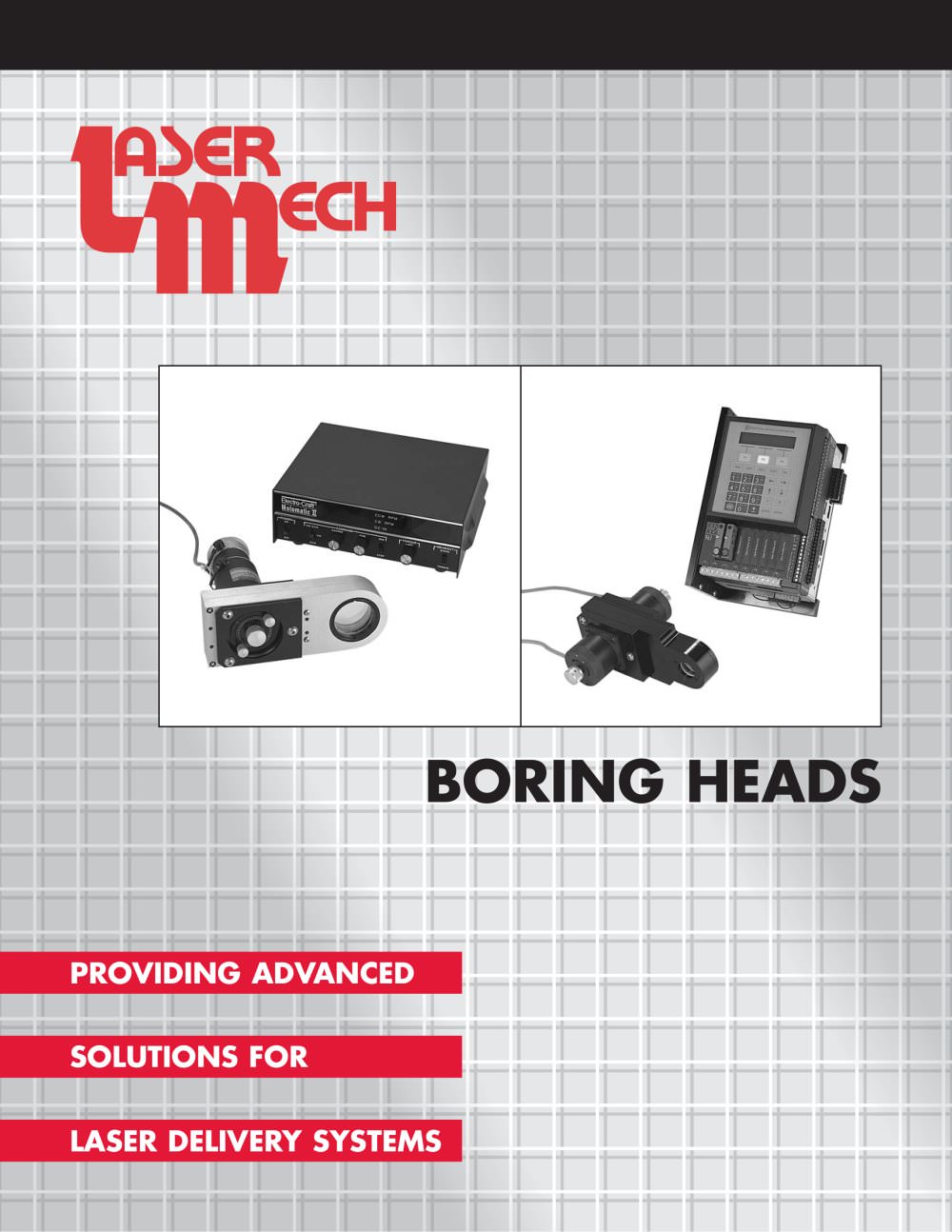

Boring Heads & Trepanners -1

PROVIDING ADVANCED SOLUTIONS FOR LASER DELIVERY SYSTEMS BORING HEADS

 Open the catalog to page 1
Boring Heads & Trepanners -2

LASER MECH BORING HEADS Laser Mechanisms’ Boring Heads provide an effective solution for both cutting and welding circular shapes. High-speed sheet metal hole drilling up to 2 mm diameter with gas jet, and hole boring up to 50 mm diameter without gas jet. Available in both automatic and manual configurations, Laser Mechanisms’ Boring Heads utilize a unique, offset rotating wedge design for beam steering. For CO2 wavelengths, the wedges are made of Zinc Selenide (ZnSe). At YAG wavelengths, rotating wedges are high-grade fused silica. For best laser processing efficiency, the wedge configuration...

 Open the catalog to page 2
