Beam Benders

Product catalog summary

Overview: The document provides detailed information on Laser Mechanisms' Beam Benders, which are part of the AccuCutter modular component line. These components are designed to divert laser beams at a 90-degree angle and are available in various models and configurations to suit different applications.

Specifications: The Beam Benders come in interlocked and non-interlocked versions, with clear apertures of 35 mm, 50 mm, and 70 mm. They support both English and Metric diameter mirrors, accommodating a range of thicknesses and materials. The mirrors are not included in the assembly.

Design Features: The Beam Benders feature an air or liquid-cooled design with a unique mirror heat sink to maintain alignment and dissipate heat. The adjustable mirror holder allows for fine orthogonal adjustment of ±2 degrees, with a resolution of 10 micro-Radians. The design also includes hermetic seals for beam path sealing and precise adjustment screws.

Models: Various models are available, including PLBBA0084, PLBBA0088, PLBBA0091, and PLBBA0092 for interlocked types, and PLBBA0083, PLBBA0087, PLBBA0050, PLBBA0053, and PLBBA0093 for non-interlocked types. Each model is tailored for specific aperture sizes and mirror diameters.

Safety Warning: The document emphasizes the danger of invisible laser radiation and advises avoiding eye or skin exposure to direct or scattered radiation.

Company Information: Laser Mechanisms, Inc. specializes in laser beam delivery components, offering a wide range of products for various wavelengths and beam diameters. They provide complete system analysis, CAD drawings, customized delivery components, and guaranteed performance delivery systems.

Contact Information: The company is located in Novi, Michigan, USA, with contact details provided for both the USA and Europe.

Catalog excerpts

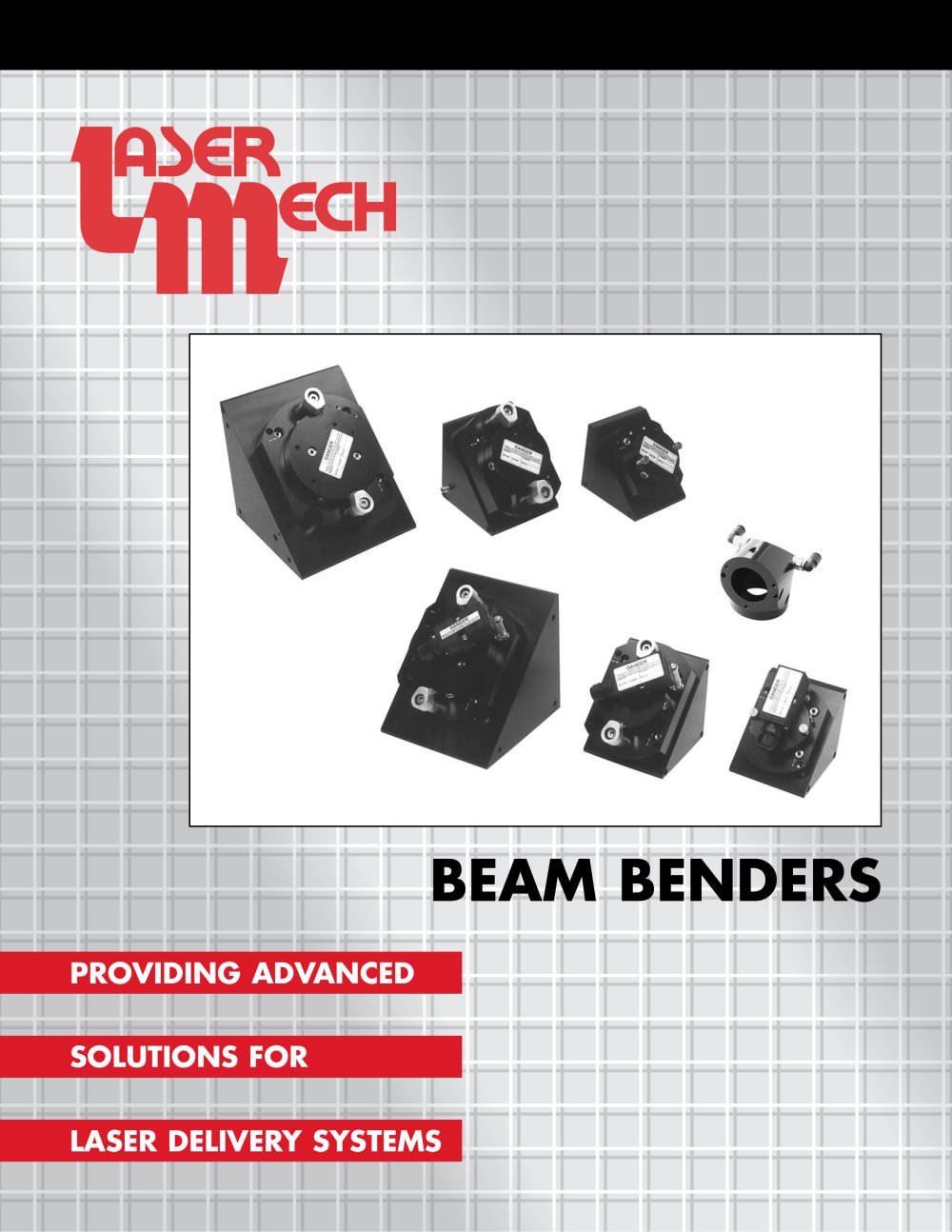

PROVIDING ADVANCED SOLUTIONS FOR LASER DELIVERY SYSTEMS >

Open the catalog to page 1

The Beam Bender is part of Laser MechanismsAccuCutter modular component line and is used to pro- vide an adjustable means to divert a laser beam through a 90 degree angle.Laser Mechanisms offers two types of adjustable beambenders. One is an interlocked version, sensing mirror presence, for use outside the workstation enclosure. The second is the non-interlocked version for use inside protected enclosures. With 65 different beam benders currently offered, there is a beam bender to fit virtually any size system or application.Each type is available in either 35 mm, 50 mm or 70 mmclear apertures....

Open the catalog to page 2

Non Par-Focal AccuCutterPar-Focal AccuCutter Laser MechanismsŒ Beam Bendersare integral components of thestate-of-the-art AccuCutter System 25325 Regency Drive ԕ Novi, Michigan 48375 USAPhone: (248) 474-9480 Fax: (248) 474-9277In Europe: Phone: +32(0)92 18 70 70 Օ Fax: +32(0)92 18 70 79Web: www.lasermech.com E-Mail: [email protected] >

Open the catalog to page 4
