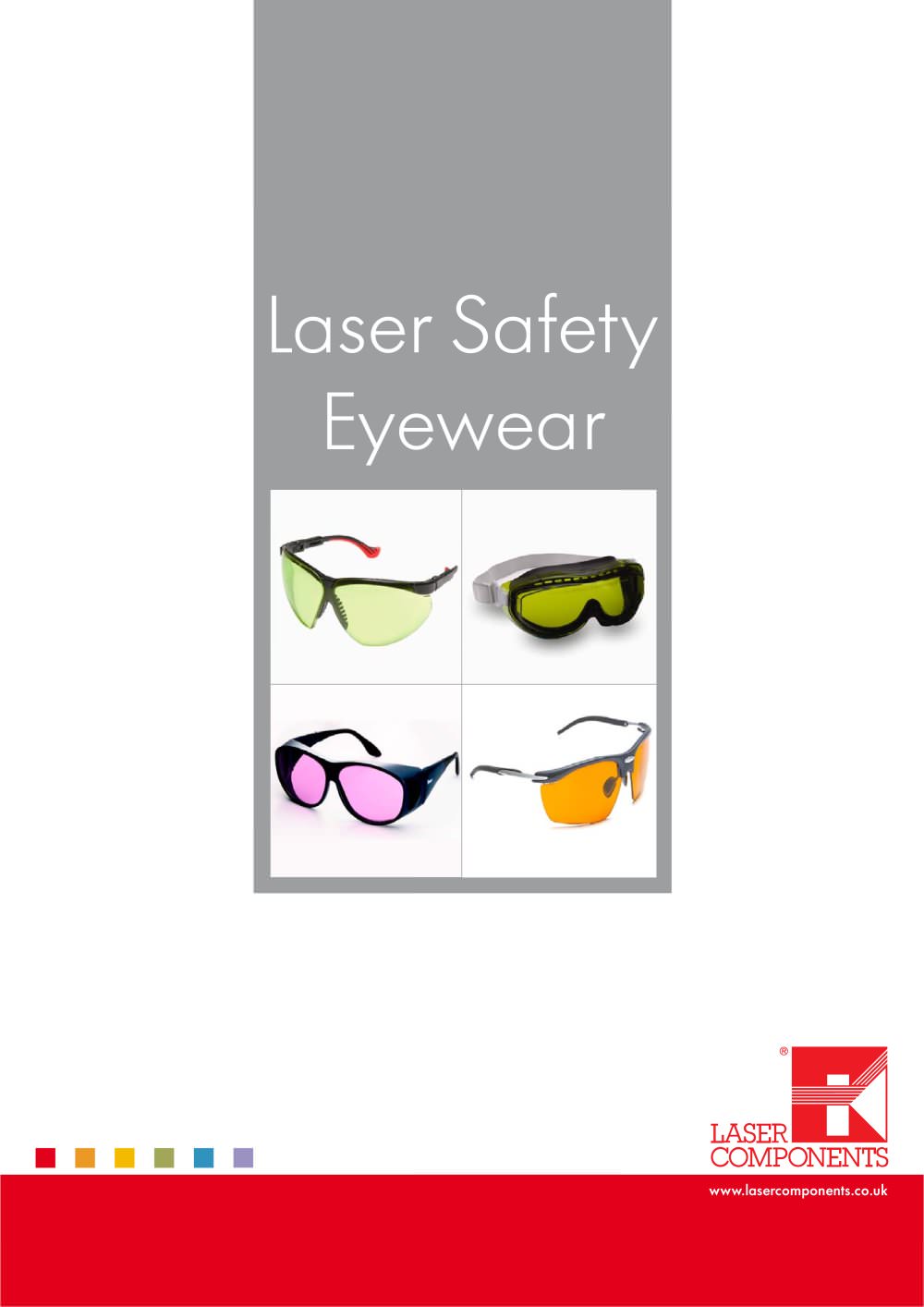

www.lasercomponents.co.uk Laser Safety Eyewear

Selecting laser Safety Eyewear What should I look for when selecting laser Safety Eyewear? • First of all determine the laser safety level you require, (your Laser Components Safety specialist can help you with this) • If more than one filter is available for the same protection select the highest possible VLT (visible light transmission) • Look to see if you need multiple wavelength protection, these tend to be darker than single wavelengths. • Check the filter colour, do you need to see specific colours for warning lights or coloured wires? • Look closely at the frame styles, important factors...

What is the difference between OD and EN207 L-rating The lens of the eyewear is a filter designed to reduce light transmittance to a specific band of wavelengths, while allowing other wavelengths to pass through the lens. This filtering of the lens can be defined by the Optical Density. The required OD is the minimum necessary to reduce the beam to a non-hazardous level. In Europe the EN207 L-ratings incorporate not only the OD, but also laser stability. It is defined on a scale from L1 to L10. Signifying the power density up to which the eye wearer will withstand the laser radiation for at least...

Care • Before using any eyewear, check for any mechanical damage such as small scratches and breaks or colour changes to the filter. Replace if required • Keep your eyewear in the case it came in when not in use. • Always check the correct wavelength and safety level are suitable for the laser you are operating. • Never look directly into the beam even when wearing safety eyewear. Request for quotation We would be glad to assist you in selecting the best eyewear for your application. For this purpose, please fax us with the following laser data (where applicable) and contact details. Note that...

Frame Styles XC A tough but stylish wraparound frame which cushions every point of contact with your face for all day comfort. Being approximately 8 times stronger than most frames makes this a durable and long lasting frame. Milan This contemporary styled frame is light but strong, which can be fully adjusted for you to create a personalised comfortable fit. New York This laser resistant frame offers very high protection and comfort in a classic tortoise shell look. LGF The one piece polymer lens offers clear unrestricted wide angled view. The contoured frame offers a comfortable fit even with...

Flex Seal A goggle with a ventilation system to enhance comfort and minimise fogging. The flex seal is light and fits over prescription frames. BM Light The Metal frame offers a high level of protection and a very good fit around the eye. BM Low A robust and high quality polymer frame with and excellent field of view. Ideally used with glass lenses for high power applications. KB Low A lightweight and robust frame with large lenses which offer an optimum field of view. LS6 The Aluminium insert in this frame offers high protection against. Laser radiation. The anti-fog design provides a free flow...

Spectra Shield A lightweight alloy which offers a compact comfort fit, and due to the adjustable straps can fit to any facial size. Now available with a fully cleanable silicon strap. I-Block II An ultra lightweight eyeshield allowing easy access to all areas around the eyes, while providing full and comfortable protection. Polymer and Glass windows A range of windows which cover the most common wavelengths and are available as standard. Custom wavelengths and sizes are available. www.lasercomponents.co.uk Laser Components (UK) Ltd Tel: 01245 491 499 Fax: 01245 491 801 Email: [email protected]...

WAVELENTH LASER TYPE Filter Material Filter Colour VLT OPTICAL DENSITY PROTECTION LEVEL FRAME STYLE ARTICLE NUMBER Laser Eyewear polymer 190-380nm OD>9 180-315 D L7 + IR L4 Encore large G0739 light pink 9000-11000nm OD>5 9000-11000 D L3 LGF G1039 70% 190-315 D L7 + IR L4 >315-532 DI L6 + R L5 190-315 D L7 + IR L4 >315-532 DR L5 + I L6 190-315 D L7 + IR L4 Flex Seal G0340 >315-532 DIR L6 XC G1240 180 - 315 D L7 + IR L4 >315 - 532 DIR L6 glass 180-315 D L7 + IR L4 yellow >315 - 505 D L5 + IR L7 60% >505-515 D L5 + IR L6 glass 180 - 315 D L7 + R L4 red >315 - 560 D L5 + IR L7 17% >560 - 570 DIR...

WAVELENTH LASER TYPE Filter Material Filter Colour VLT OPTICAL DENSITY PROTECTION LEVEL FRAME STYLE ARTICLE NUMBER polymer 2760-3740nm OD>7 2760 - 3000 DI L3 clear 10600nm OD>7 10600 DI L3 90% 2940 DI L2 Encore Large LGF G1060 polymer Encore Large G0760 clear 5000-11000nm OD>7 9000-11000 D L3 M i la n G0160 89% Flexseal G0360 XC G1260 glass not marked with ODs clear 90% polymer light blue 625 - 680 OD 1 - 2 625 - 680 R 1 LGF 52% polymer 1064 DL6 + IR L7 1064 + 532 align orange-brown OD 3.0 - 3.5 @532nm 532 R3 40% OD 7 1064nm 1064 D L6 + I L7 + R L5 532 R3 polymer 532 align orange-brown 532 OD...

WAVELENTH LASER TYPE Filter Material Filter Colour VLT OPTICAL DENSITY PROTECTION LEVEL FRAME STYLE ARTICLE NUMBER Laser patient eye protection New improved design! UV - IR SpectraView Nd:YAG green G8893 visible SpectraView PDT blue G8992 SpectraView Erbium-Nd:YAG-Holmium visible-IR LED-Aid opaque 50 pairs per box (price per box) G8790 Microdermabrasion products 50 pairs per box (price per box) IPL Products IPL-LightSpeed light stage: grey Pouch with cleaning cloth and headband. IPL-Aid opaque 50pairs per box (price per box) IPL-Shade, LGF style green Carton (price per piece). medium green dark...

WAVELENTH LASER TYPE Filter Material Filter Colour VLT OPTICAL DENSITY PROTECTION LEVEL FRAME STYLE ARTICLE NUMBER Glass Windows Glass 940 - 1000 D L6 + IR L7 greenish grey 1000 - 1100 D L7 + IR L8 65% 1100 - 1400 D L6 + IR L7 Glass EN 207 certified to greenish grey 1064-1400 D L5 + IR L6 70% >1400-3000 DIR L4 Nd:YAG High Laminated glass EN 207 certified to G8540 greenish grey 900-1000 DIR L5 G8541 65% >1000-1400 D L7 + IR L8 10600 DI L4 Diode Glass EN 207 certified to light blue 900 - 1000 DIR L5 60% >1000 - 1400 D L7 + IR L8 Polymer Windows The following polymer windows are certified to EN...
