LARYEE micro vickers hardness tester HVM-1000
1 / 1 PageView full catalog
LARYEE micro vickers hardness tester HVM-1000
Product catalog summary
Overview: The HVM-1000 is a touch screen digital micro hardness tester designed for measuring the hardness of various metals using the micro indentation hardness principle, compliant with ISO 6507 and ASTM E384 standards. It features a large LCD screen for displaying measurement methods, test force, indentation length, hardness value, dwell time, and measurement count.
Applications: This instrument is applicable in industries such as metallurgy, forging, casting, hardness steel, nonferrous metals, IC thin sections, coatings, ply-metals, glass, ceramics, agate, precious stones, and thin plastic sections. It is also used in laboratories, universities, colleges, and scientific research institutes.
Key Specifications:
- Model: HVM-1000
- Test Load: Ranges from 0.098N (10gf) to 9.8N (1000gf)
- Lens/Indenter Switch: Motorized Turret
- Carriage Control: Automatic (loading/dwell-time/unloading)
- Dwell Time: 0 to 60 seconds
- Magnification of Microscope: 400× (object lens 40×, eyepiece 10×)
- Minimum Measuring Unit of Microscope: 0.06μm
- Eyepiece/Objective: 10× Digital Measuring Eyepiece, 10× (Observe), 40× (Measure)
- Testing Range: 1HV to 2967HV
- Max. Height of Specimen: 90mm
- Throat: 100mm
- XY Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
- Output: Built-in Printer, RS232 Interface
- Power Supply: 1 Phase, 110V/220V, 50/60Hz
See more
Catalog excerpts

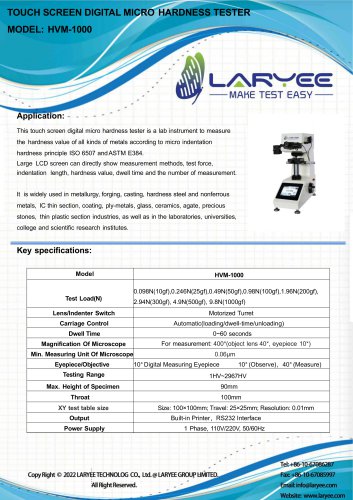

TOUCH SCREEN DIGITAL MICRO HARDNESS TESTER MODEL: HVM-1000 Application: This touch screen digital micro hardness tester is a lab instrument to measure the hardness value of all kinds of metals according to micro indentation hardness principle ISO 6507 and ASTM E384. Large LCD screen can directly show measurement methods, test force, indentation length, hardness value, dwell time and the number of measurement. It is widely used in metallurgy, forging, casting, hardness steel and nonferrous metals, IC thin section, coating, ply-metals, glass, ceramics, agate, precious stones, thin plastic section industries, as well as in the laboratories, universities, college and scientific research institutes.
Open the catalog to page 1All Laryee technology co.,ltd catalogs and technical brochures
