- LARYEE continuous flow reator CM-D
LARYEE continuous flow reator CM-D
LARYEE continuous flow reator CM-D
- Integrated multilayer glass construction suitable for mixing, reaction, and heat transfer.
- Micro channel system allows modular connection of multiple reactors in series or parallel.
- Applicable for various liquid-liquid, gas-liquid homogeneous, and multiphase reactions.
- Constructed from materials such as glass, quartz, silicon, and glass-silicon compounds.
- Effective in photochemical and UV-induced reactions.
- Made from high borosilicate float glass, compatible with most reagents except hot concentrated alkali, molten alkali metal, hot concentrated H3PO4, HF, and strong corrosive agents.
- High light transmittance suitable for short wavelength photocatalytic reactions.
- Features a 4-layer structure design including a heat exchanger, enhancing catalysis conditions and reactant formation.
- Models: CM-D(HT), CM-D(CRT), CM-D(SAT).
- Size: 152*152mm, Material: High borosilicate float glass.
- Volume: 6ml (CM-D(HT)), 11.3ml (CM-D(CRT)), 5.3ml (CM-D(SAT)).
- Residence time ranges from 3.6s to 113min depending on the model.
- Temperature range: -25°C to 195°C, Operating pressure: 0-20bar.
- Throughput: 0.1-100mL/min (up to 6kg/h).
- Structure types: Heart shape, Continue Rotation, Spindle shape.
- Applicable for liquid-liquid and gas-liquid mixing, compatible with solid particles ≤50um and solid ≤5% (except agglomerate or precipitate and poor suspension).
- Continuous crystallization and liquid-solid processes with high solid particle consistency requirements.
- Less boundary layer, shorter fluid mass transfer and dispersion distance, suitable for viscous liquids and easily agglomerated solids.
- Holder options: PFA/PPS/PPS+PFA.
- Reagent import/export: Two in and one out or one in and one out, with customizable multiple imports.
- Standard series reaction modules: 10, Maximum modules connected in series: 12-14 depending on the model.
Catalog excerpts

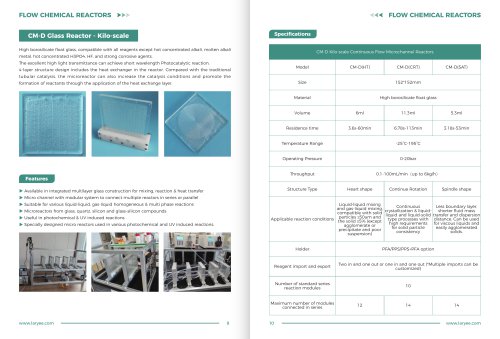

FLOW CHEMICAL REACTORS ► ◄ FLOW CHEMICAL REACTORS CM-D Glass Reactor - Kilo-scale High borosilicate float glass, compatible with all reagents except hot concentrated alkali, molten alkali metal, hot concentrated H3PO4, HF, and strong corrosive agents. The excellent high light transmittance can achieve short wavelength Photocatalytic reaction. 4-layer structure design includes the heat exchanger in the reactor. Compared with the traditional tubular catalysis, the microreactor can also increase the catalysis conditions and promote the formation of reactants through the application of the heat exchange layer. ► Available in integrated multilayer glass construction for mixing, reaction & heat transfer ► Micro channel with modular system to connect multiple reactors in series or parallel ► Suitable for various liquid-liquid, gas-liquid homogeneous & multi phase reactions ► Microreactors from glass, quartz, silicon and glass-silicon compounds ► Useful in photochemical & UV induced reactions ► Specially designed micro reactors used in various photochemical and UV induced reactions. CM-D Kilo-scale Continuous Flow Microchannel Reactors
