Chip Crusher
1 / 1 PageView full catalog
Chip Crusher
Product catalog summary

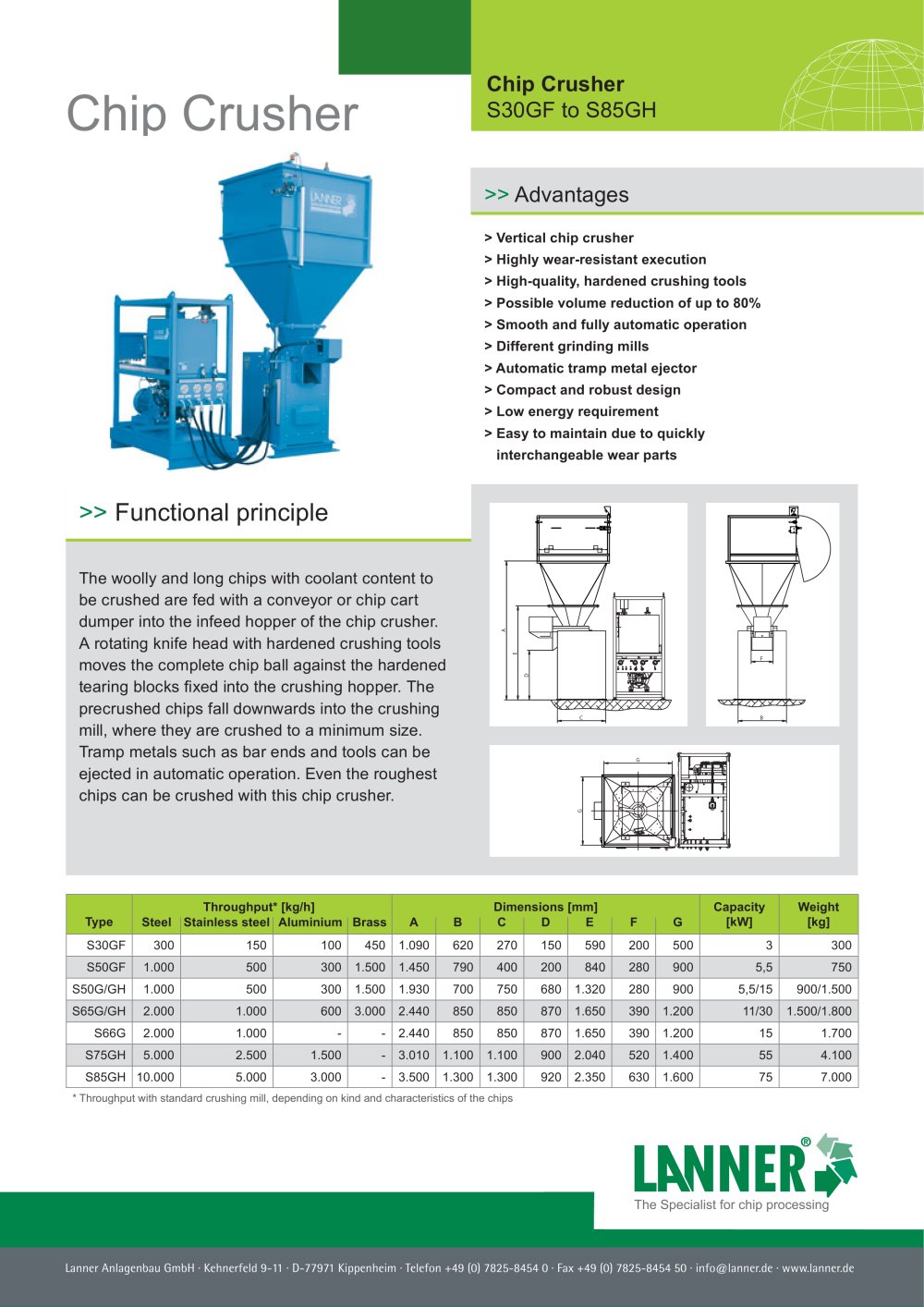

Overview: The document provides technical specifications and advantages of the Lanner Anlagenbau GmbH's Chip Crusher models ranging from S30GF to S85GH. These crushers are designed for processing metal chips, offering significant volume reduction and efficient operation.
Advantages:
- Vertical chip crusher design.
- Highly wear-resistant and robust construction.
- High-quality, hardened crushing tools.
- Volume reduction capability of up to 80%.
- Smooth, fully automatic operation with different grinding mills.
- Automatic tramp metal ejector.
- Compact design with low energy requirements.
- Easy maintenance due to quickly interchangeable wear parts.
Functional Principle: The crusher processes woolly and long chips with coolant content by feeding them into the infeed hopper. A rotating knife head with hardened tools crushes the chips against tearing blocks. Precrushed chips fall into the crushing mill for further size reduction. The system can automatically eject tramp metals.
Technical Specifications:
| Type | Throughput (kg/h) | Dimensions (mm) | Capacity (kW) | Weight (kg) |
|---|---|---|---|---|
| S30GF | 300 | 150 x 100 x 450 | 3 | 300 |
| S50GF | 1,000 | 500 x 300 x 1,500 | 5.5 | 750 |
| S50G/GH | 1,000 | 500 x 300 x 1,500 | 5.5/15 | 900/1,500 |
| S65G/GH | 2,000 | 1,000 x 600 x 3,000 | 11/30 | 1,500/1,800 |
| S66G | 2,000 | - | 15 | 1,700 |
| S75GH | 5,000 | 2,500 x 1,500 | 55 | 4,100 |
| S85GH | 10,000 | 5,000 x 3,000 | 75 | 7,000 |
* Throughput varies with chip type and characteristics.
