RM series

Product catalog summary

Overview
The RM Series by LANG is designed for innovative CNC technology, focusing on engraving and milling machines for embossing and cutting cylinders. These machines cater to medium and large formats, ensuring precise reproduction of designs and maintaining cutting edge accuracy.

Key Features

Embossing and cutting cylinders are crafted with precision, ensuring accurate male and female matching and consistent cutting edge profiles.
The RM 800 S model is suitable for embossing, punching, and finishing materials such as paper, packaging, plastic foils, metal foils, and sanitary articles.
Machines are built on a vibration- and resonance-damping granite portal design, featuring a closed-loop drive and control circuit for high accuracy.
Customizable solutions include spindle power ranging from 1.6 to 10 kW, spindle speeds from 5,000 to 60,000 min-1, and various tool changers and cooling systems.

Technical Specifications

Model	Max Cylinder Length	Diameter	Load Capacity	Spindle Speed	Spindle Output	Tool Changer	Dimensions (L x W x H)	Weight
RM 800 S	800 mm	10-320 mm	400 kg	5,000-60,000 min-1	1.6-10 kW	Up to 28 stations	2,800 x 3,400 x 2,850 mm	Approx. 6,500 kg
RM 1200 S	1,700 mm	80-400 mm	1,000 kg	5,000-60,000 min-1	1.6-10 kW	Up to 28 stations	4,300 x 2,500 x 3,000 mm	Approx. 9,000 kg
RM 1500 S	2,200 mm	100-320 mm	500 kg	5,000-60,000 min-1	1.6-2.6 kW	36-96 stations	4,700 x 1,950 x 2,800 mm	Approx. 8,000 kg

Options and Accessories

Circulating system for flood processing
Oil mist exhaust system
Tool changers with various station capacities
Laser-tool length correction and edge probe systems
Measuring optics for enhanced precision

IMPALA Series
The IMPALA series is specialized for machining smaller cylinders, offering flexibility and precision for specific applications.

Catalog excerpts

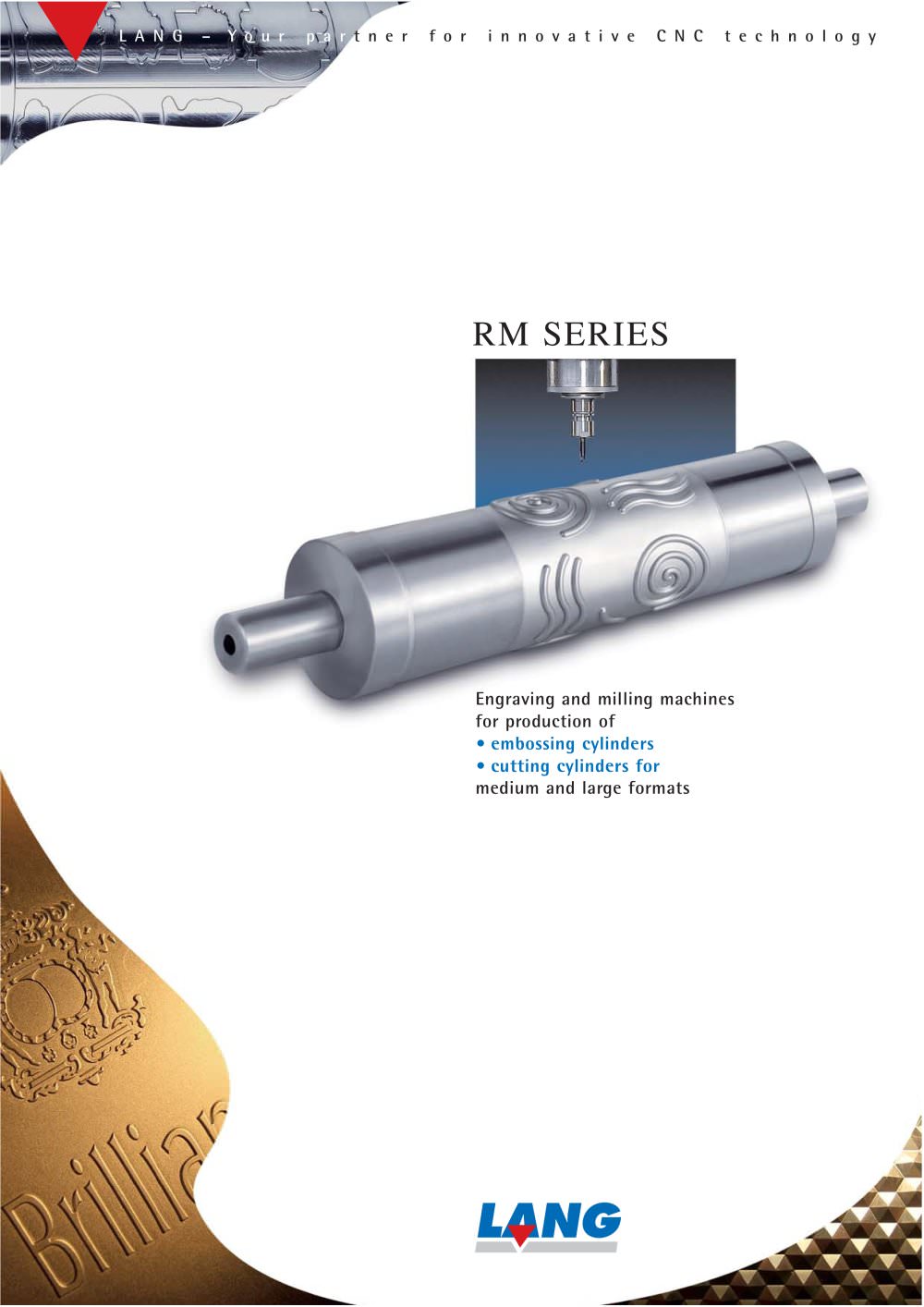

LANGYour par tner for innovative CNC technology Engraving and milling machinesfor production of ֕embossing cylinders cutting cylinders for medium and large formats >

Open the catalog to page 1

For embossing, punching and finishing of ...is the accurate reproduction of the finestdesigns the deciding quality criterion. The chal-lenge in production of embossing cylinders isthe accurate matching of male and female,whereas during production of cutting cylinders most important is maintaining the accuracy of the profile of the cutting edge (incl. theangles which have to be consistent). Paper Օ Packaging Plastic foils and -plates Օ Metal-/Aluminum foils Sanitary articles ... > I t Ւ s g o o d w h e n y o u c a n c o u nt onaex periencedsp > eci al is t, w h o i s a b l etodesignandbuiltf l...

Open the catalog to page 2

Max. length of cylinder (working range) 800 mm (600 mm)1.700 mm (up to 1.200 mm)2.200 mm (up to 1.600 mm)Diameter of cylinder10-320 mm80-400 mm100-320 mm Load bearing capacitymax. 400 kgmax. 1.000 kgmax. 500 kg Spindle speed5.000-60.000 min > -1 5.000-60.000 min > -1 5.000-60.000 min > -1 Spindle output1,6-10 kW1,6-10 kW1,6-2,6 kW Tool changerup to 28 stations up to 28 stations36-96 stationsOutside dimensions L x W x H2.800 x 3.400 x 2.850 mm4.300 x 2.500 x 3.000 mm4.700 x 1.950 x 2.800 mmWeight of machine apprx. 6.500 kgapprx. 9.000 kgapprx. 8.000 kg > for customer specific applications: ֕Circulating...

Open the catalog to page 4
