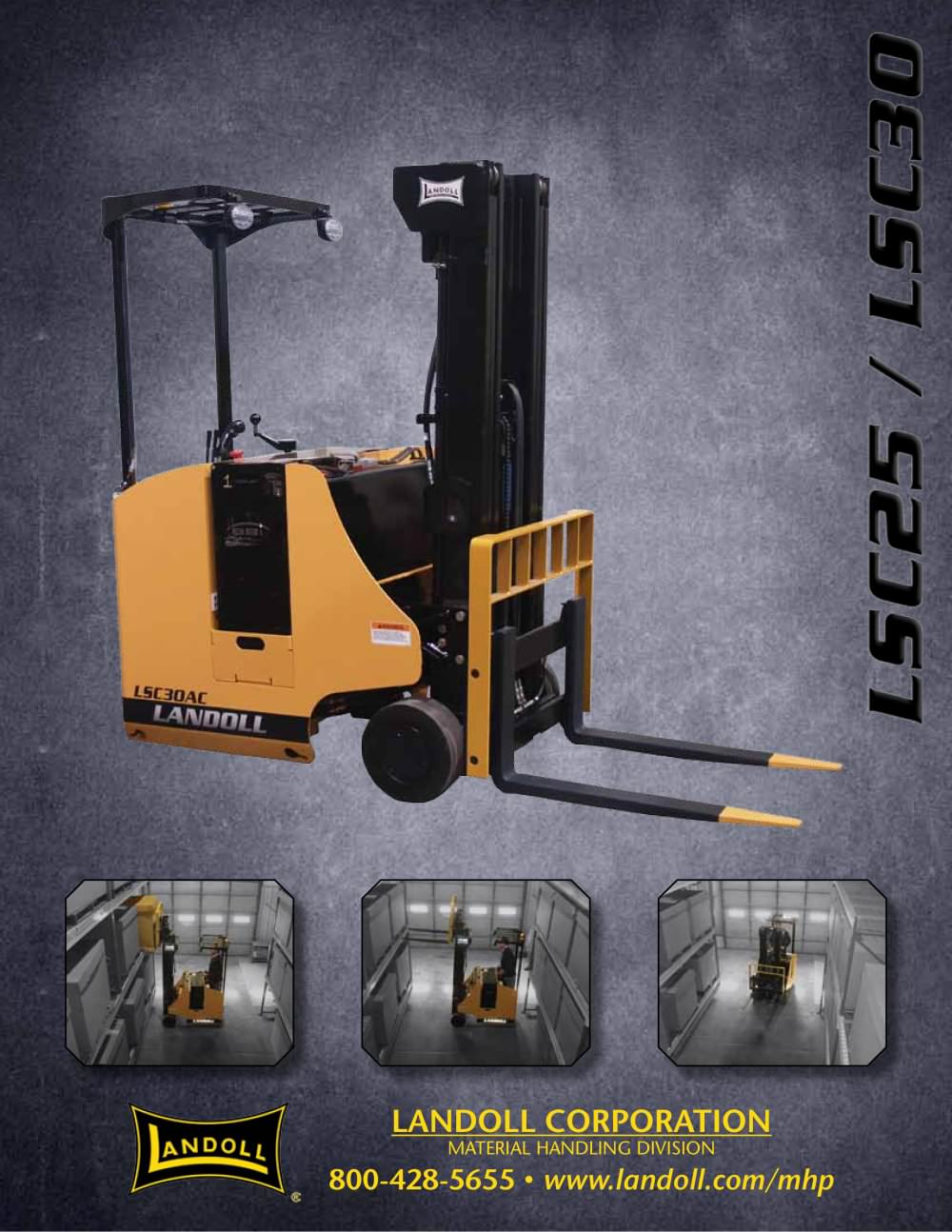

LANDOLL CORPORATION MATERIAL HANDLING DIVISION 800-428-5655 • www.landoll.com/mhp

800-428-5655 Landoll Stand Up Ride, Compact The specifications contained in this spec sheet are subject to change at any time without notice. Actual STANDARD FEATURES • 2 or 3-Stage High Visibility Mast • 2,500 lb. (1,136 kg) or 3,000 lb. (1,364 kg) Capacity • Multi-Function Control for Lift/Lower, Direction and Speed Control • Single 24 Volt AC Traction and DC Pump Controller • Tiller Controlled Hydraulic Power Steering • Cantilevered Overhead Guard • Thick Cushioned Rubber Floor Mat • Horn, Battery Discharge Indicator and Hour Meter • Left Foot Operated Electric Deadman Parking Brake •...

Open the catalog to page 2

Compact Electric Lift Truck www.landoll.com/mhp Model LSC25 LSC30 Capacity At 24" (600mm) Load Center Ibs/kg 2,500 / 1,136 3,000 / 1,364 Truck Weight With Battery lbs/kg 6,750 / 3,068 6,600/3,000 Travel Speed Loaded mph/kph 6 / 9.7 6 / 9.7 Unloaded mph/kph 7 / 11.3 7 / 11.3 Lift Speed Loaded fpm/mpm 35 / 11 35 / 11 Unloaded fpm/mpm 62 / 19 62 / 19 Lowering Speed Loaded fpm/mpm 90 / 27.4 90 / 27.4 Unloaded fpm/mpm 80 / 24.3 80 / 24.3 Mast Tilt Back / Fwd - Simplex Mast degrees 8 / 5 8 / 5 Back / Fwd - Triplex Mast degrees 5 / 5 5 / 5 Lost Load Center E in/cm 10.7 / 27 10.7 / 27 Wheelbase F...

Open the catalog to page 3

MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company LSC/0111 1900 North Street · Marysville, KS 66508 800-428-5655 www.landoll.com/mhp Rear Cover Removed Front Cover Removed The simplicity and design in maintainability of the Landoll LSC make the cost of ownership noticeably lower than comparable forklifts. A front cover provides easy access to the hydraulic tank and dipstick, and to the modular hydraulic motor/pump assembly. A rear cover provides access to the drive system; including AC traction and hydraulic controls, fuses and all major components (including the hydraulic valve,...
