Landoll Drexel SL80 Swingmast VNA/Sideloading Electric Forklift

Product catalog summary

Overview: The Landoll SwingMast® SL80 is an electric multi-purpose forklift designed for Very Narrow Aisle (VNA) and sideloading applications. It features an 8,000 lb (3,636 kg) capacity and a 90° pivoting mast for enhanced maneuverability and cube utilization.

Standard Features:

Four-wheel configuration with an 8,000 lbs capacity.
72 Volt electrical system with Curtis SEPEX dual traction motor controllers.
Hydrostatic power steering and a 30" shift with 3" reach.
Poly drive and steer tires, 42" high load backrest, and Type E construction.
Includes safety features like a seatbelt, key switch, hand parking brake, and hour meter.
Complies with ANSI B56.1 standards.

Optional Features:

EE construction with battery side cover.
Non-standard fork lengths and dual LED headlights.
Safety features like LED light bars, backup alarm, and fire extinguisher.
Cold storage conditioning and roller slide-out battery tray.
Advanced features like laser fork height indicator and overload sensor with alarm.

Technical Specifications:

Load center: 24 in (600 mm).
Weight with battery: 20,900 lbs (9,500 kg).
Travel speed: 6.9 mph loaded, 7.7 mph unloaded.
Lift speed: 55 fpm loaded, 70 fpm unloaded.
Mast tilt: 3° forward, 4° backward.
Turning radius: 96.5 in (2,451 mm).
Battery: 72 volt, 53-55 kWh, minimum weight 4,300 lbs (1,955 kg).

Mast Dimensions:

Lift heights range from 141 inches (3.58 meters) to 281 inches (7.14 meters).
Free lift heights vary based on load backrest height.

Recommended Batteries:

Battery designation: 36-85-19, 72 volt, 765 AHC.
Battery weight range: 4,300 lbs (1,955 kg) to 4,700 lbs (2,136 kg).
Compartment size: 39.625" x 45" x 23.5" (100 x 114 x 60 cm).

Catalog excerpts

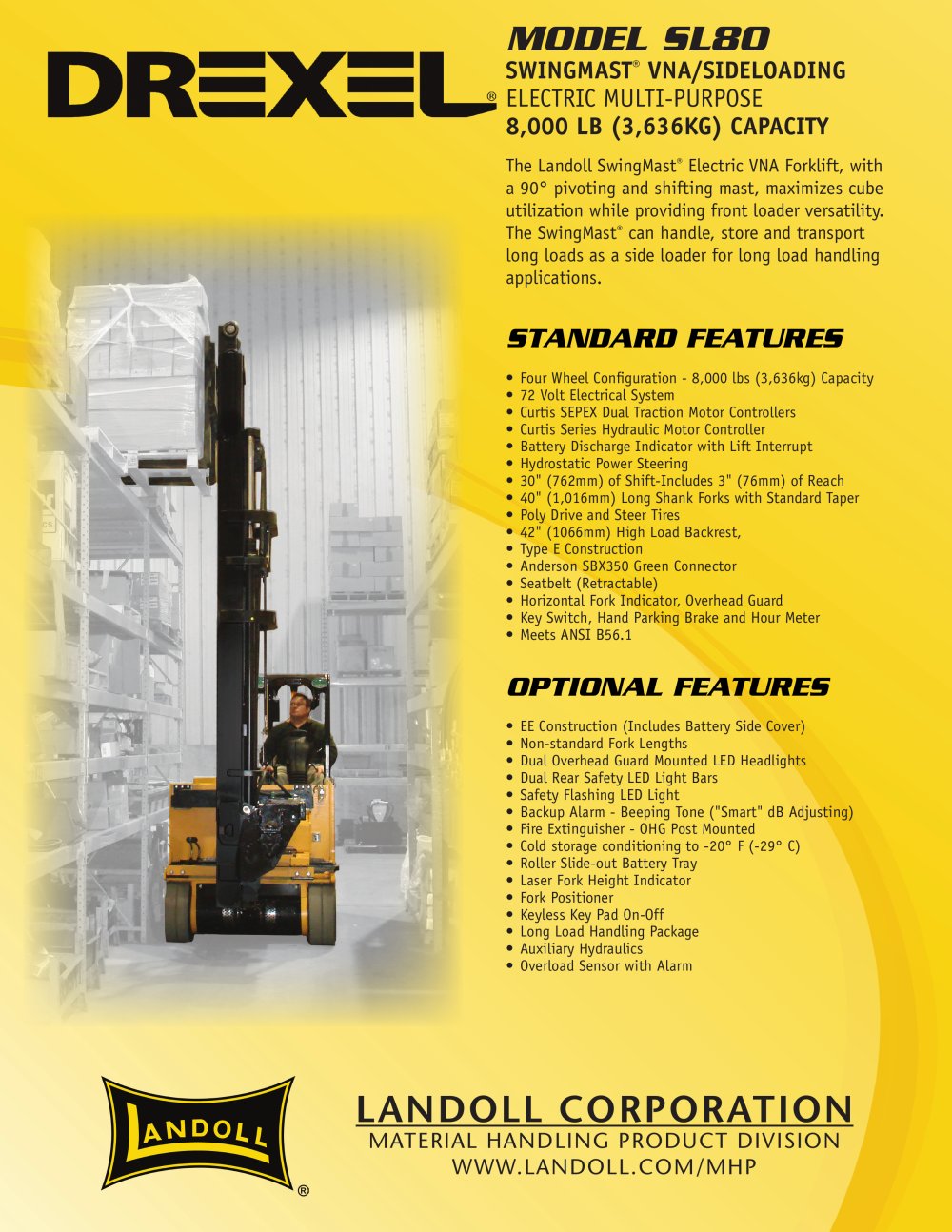

Landoll Drexel SL80 Swingmast VNA/Sideloading Electric Forklift-1

LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP MODEL SL80 SWINGMAST® VNA/SIDELOADING ELECTRIC MULTI-PURPOSE 8,000 LB (3,636KG) CAPACITY The Landoll SwingMast® Electric VNA Forklift, with a 90° pivoting and shifting mast, maximizes cube utilization while providing front loader versatility. The SwingMast® can handle, store and transport long loads as a side loader for long load handling applications. STANDARD FEATURES • Four Wheel Configuration - 8,000 lbs (3,636kg) Capacity • 72 Volt Electrical System • Curtis SEPEX Dual Traction Motor Controllers • Curtis Series Hydraulic Motor Controller • Battery Discharge Indicator with Lift Interrupt • Hydrostatic Power Steering • 30" (762mm) of Shift-Includes 3" (76mm) of Reach • 40" (1,016mm) Long Shank Forks with Standard Taper • Poly Drive and Steer Tires • 42" (1066mm) High Load Backrest, • Type E Construction • Anderson SBX350 Green Connector • Seatbelt (Retractable) • Horizontal Fork Indicator, Overhead Guard • Key Switch, Hand Parking Brake and Hour Meter • Meets ANSI B56.1 OPTIONAL FEATURES • EE Construction (Includes Battery Side Cover) • Non-standard Fork Lengths • Dual Overhead Guard Mounted LED Headlights • Dual Rear Safety LED Light Bars • Safety Flashing LED Light • Backup Alarm - Beeping Tone ("Smart" dB Adjusting) • Fire Extinguisher - OHG Post Mounted • Cold storage conditioning to -20° F (-29° C) • Roller Slide-out Battery Tray • Laser Fork Height Indicator • Fork Positioner • Keyless Key Pad On-Off • Long Load Handling Package • Auxiliary Hydraulics • Overload Sensor with Alarm

Open the catalog to page 1

Landoll Drexel SL80 Swingmast VNA/Sideloading Electric Forklift-2

1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp MHEDA YOUR INDUSTRY CONNECTION MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company SwingMast® SL80 8,000 LBS (3,636KG) ELECTRIC-MULTI-PURPOSE VNA AND SIDELOADING SWINGMAST FORKLIFT TRUCK TECHNICAL & DIMENSION DATA M J N I L H C A B D E F G K SL80/0211 The specifications contained in this spec sheet are subject to change at any time without notice. Actual dimensions and performance data given herein may vary due to manufacturing tolerances. MODEL SL80 Capacity Ibs/kg 8,000 / 3,636 Load center in/mm 24 / 600 Power...
