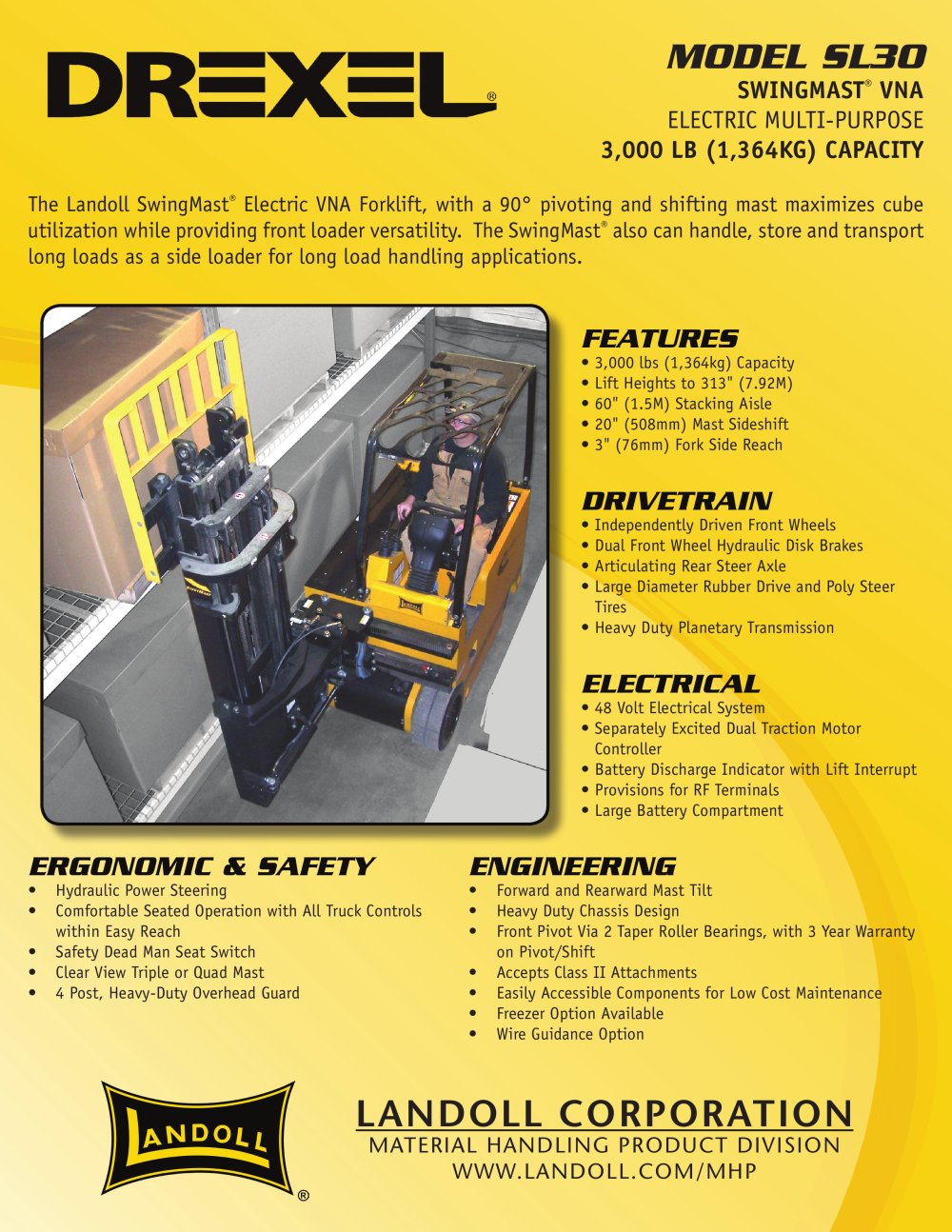

LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP MODEL SL30 SWINGMAST® VNA ELECTRIC MULTI-PURPOSE 3,000 LB (1,364KG) CAPACITY Features • 3,000 lbs (1,364kg) Capacity • Lift Heights to 313" (7.92M) • 60" (1.5M) Stacking Aisle • 20" (508mm) Mast Sideshift • 3" (76mm) Fork Side Reach DRIVETRAIN • Independently Driven Front Wheels • Dual Front Wheel Hydraulic Disk Brakes • Articulating Rear Steer Axle • Large Diameter Rubber Drive and Poly Steer Tires • Heavy Duty Planetary Transmission ELECTRICAL • 48 Volt Electrical System • Separately Excited Dual Traction Motor Controller • Battery Discharge Indicator with Lift Interrupt • Provisions for RF Terminals • Large Battery Compartment ERGONOMIC & SAFETY • Hydraulic Power Steering • Comfortable Seated Operation with All Truck Controls within Easy Reach • Safety Dead Man Seat Switch • Clear View Triple or Quad Mast • 4 Post, Heavy-Duty Overhead Guard ENGINEERING • Forward and Rearward Mast Tilt • Heavy Duty Chassis Design • Front Pivot Via 2 Taper Roller Bearings, with 3 Year Warranty on Pivot/Shift • Accepts Class II Attachments • Easily Accessible Components for Low Cost Maintenance • Freezer Option Available • Wire Guidance Option The Landoll SwingMast® Electric VNA Forklift, with a 90° pivoting and shifting mast maximizes cube utilization while providing front loader versatility. The SwingMast® also can handle, store and transport long loads as a side loader for long load handling applications.

1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp MHEDA YOUR INDUSTRY CONNECTION MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company MODEL SL30 Capacity Ibs/kg 3,000 / 1,364 Load Center in/mm 24 / 600 Power Source Battery, electric Weight with Battery Ibs/kg 12,600 / 5,727 Travel Speed Loaded mph/kph 6 / 9.7 Unloaded mph/kph 6.5 / 10.5 Lift Speed 5,500 lbs./2,495kg fpm/mpm 50 / 15 Unloaded fpm/mpm 70 / 21.5 Lower Speed Loaded fpm/mpm 90 / 27.5 Unloaded fpm/mpm 60 / 18.5 Mast Tilt Forward/Backward deg 3 / 4 Lost Load Center a With Triple Mast in/mm 25 / 635 Wheelbase...
