Landoll Drexel Model SL50 Swingmast VNA Forklift - Electric

Product catalog summary

Overview: The Landoll SwingMast® SL50 is an electric, multi-purpose forklift designed for very narrow aisle (VNA) and sideloading applications. It has a capacity of 5,000 lbs (2,273 kg) and features a 90° pivoting and shifting mast for optimal cube utilization and versatility in handling long loads.

Specifications:

Capacity: 5,000 lbs (2,273 kg)
Lift Heights: Up to 360 inches (9.14 meters)
Stacking Aisle Width: 60 inches (1.5 meters)
Mast Sideshift: 20 inches (508 mm)
Fork Side Reach: 3 inches (76 mm)

Drivetrain:

Independently driven front wheels with dual hydraulic disk brakes
Articulating rear steer axle
Heavy-duty planetary transmission

Electrical System:

48 Volt system with separately excited dual traction motor controllers
Mosfet hydraulic pump motor controller
Battery discharge indicator with lift interrupt

Ergonomics & Safety:

Hydraulic power steering and comfortable seated operation
Safety dead man seat switch
Clear view triple or quad mast with heavy-duty overhead guard

Engineering Features:

Forward and rearward mast tilt
Heavy-duty chassis design with a 3-year warranty on pivot/shift
Freezer and wire guidance options available

Technical & Dimension Data:

Travel Speed: Loaded 6 mph (9.7 kph), Unloaded 6.5 mph (10.5 kph)
Lift Speed: Loaded 50 fpm (15 mpm), Unloaded 70 fpm (21.5 mpm)
Battery: 48 volt, recommended 35-39 kWh, minimum weight 3,250 lbs (1,477 kg)

Recommended Battery: Battery designation is 24-100-21, with a nominal size of 33" x 38 9/16" x 25 5/8" (84 x 98 x 65 cm).

Mast Dimensions: Various lift heights and corresponding closed, free lift, and extended heights are provided for both 3-stage and 4-stage full free lift configurations.

Note: Specifications are subject to change without notice, and actual dimensions and performance may vary due to manufacturing tolerances.

Catalog excerpts

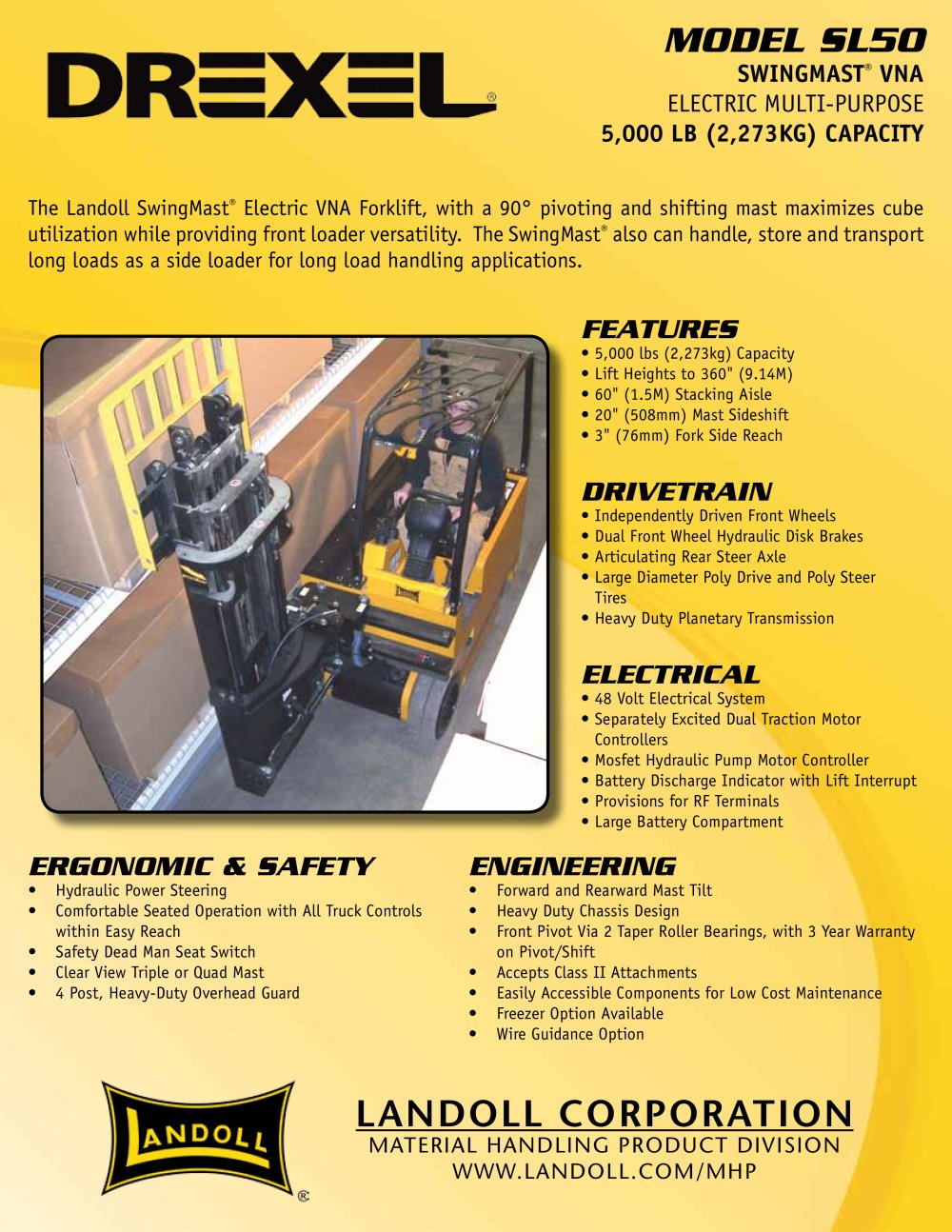

Landoll Drexel Model SL50 Swingmast VNA Forklift - Electric-1

LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP MODEL SL50 SWINGMAST® VNA ELECTRIC MULTI-PURPOSE 5,000 LB (2,273KG) CAPACITY Features • 5,000 lbs (2,273kg) Capacity • Lift Heights to 360" (9.14M) • 60" (1.5M) Stacking Aisle • 20" (508mm) Mast Sideshift • 3" (76mm) Fork Side Reach DRIVETRAIN • Independently Driven Front Wheels • Dual Front Wheel Hydraulic Disk Brakes • Articulating Rear Steer Axle • Large Diameter Poly Drive and Poly Steer Tires • Heavy Duty Planetary Transmission ELECTRICAL • 48 Volt Electrical System • Separately Excited Dual Traction Motor Controllers • Mosfet Hydraulic Pump Motor Controller • Battery Discharge Indicator with Lift Interrupt • Provisions for RF Terminals • Large Battery Compartment ERGONOMIC & SAFETY • Hydraulic Power Steering • Comfortable Seated Operation with All Truck Controls within Easy Reach • Safety Dead Man Seat Switch • Clear View Triple or Quad Mast • 4 Post, Heavy-Duty Overhead Guard ENGINEERING • Forward and Rearward Mast Tilt • Heavy Duty Chassis Design • Front Pivot Via 2 Taper Roller Bearings, with 3 Year Warranty on Pivot/Shift • Accepts Class II Attachments • Easily Accessible Components for Low Cost Maintenance • Freezer Option Available • Wire Guidance Option The Landoll SwingMast® Electric VNA Forklift, with a 90° pivoting and shifting mast maximizes cube utilization while providing front loader versatility. The SwingMast® also can handle, store and transport long loads as a side loader for long load handling applications.

Open the catalog to page 1

Landoll Drexel Model SL50 Swingmast VNA Forklift - Electric-2

1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp MHEDA YOUR INDUSTRY CONNECTION MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company Model SL40 Capacity Ibs/kg 5,000 / 2,273 Load center in/mm 24 / 600 Power source Battery, electric Weight with battery Ibs/kg 15,100 / 6,864 Travel speed Loaded mph/kph 6 / 9.7 Unloaded mph/kph 6.5 / 10.5 Lift speed Loaded (5,500 lbs/2,495 kg) fpm/mpm 50 / 15 Unloaded fpm/mpm 70 / 21.5 Lower speed Loaded fpm/mpm 90 / 27.5 Unloaded fpm/mpm 60 / 18.5 Mast tilt Forward/Backward deg 3 / 4 Lost load center A With triple mast in/mm 25...
