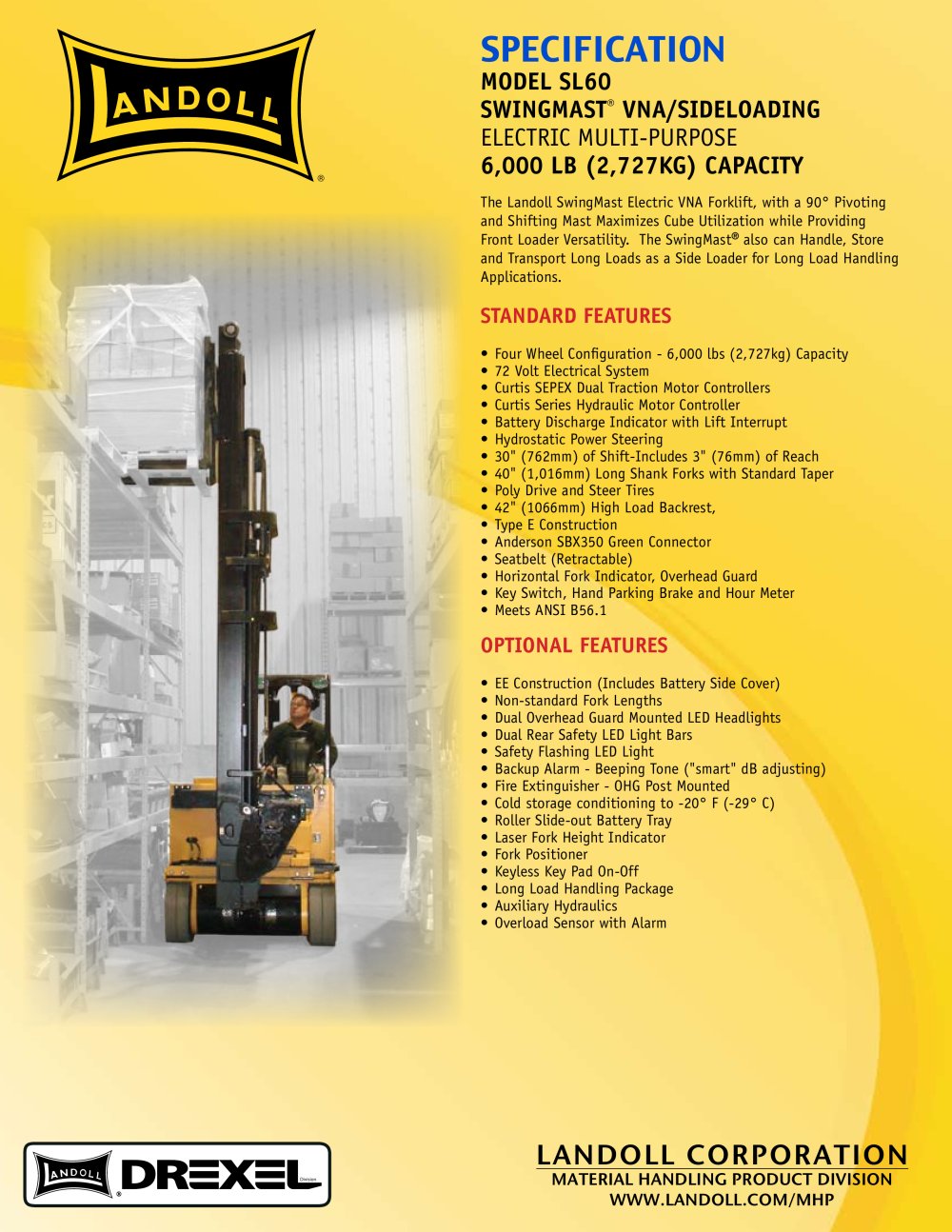

® Division LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP Specification MODEL SL60 SWINGMAST® VNA/SIDELOADING ELECTRIC MULTI-PURPOSE 6,000 LB (2,727KG) CAPACITY The Landoll SwingMast Electric VNA Forklift, with a 90° Pivoting and Shifting Mast Maximizes Cube Utilization while Providing Front Loader Versatility. The SwingMast® also can Handle, Store and Transport Long Loads as a Side Loader for Long Load Handling Applications. Standa rd Feat ures • Four Wheel Configuration - 6,000 lbs (2,727kg) Capacity • 72 Volt Electrical System • Curtis SEPEX Dual Traction Motor Controllers • Curtis Series Hydraulic Motor Controller • Battery Discharge Indicator with Lift Interrupt • Hydrostatic Power Steering • 30" (762mm) of Shift-Includes 3" (76mm) of Reach • 40" (1,016mm) Long Shank Forks with Standard Taper • Poly Drive and Steer Tires • 42" (1066mm) High Load Backrest, • Type E Construction • Anderson SBX350 Green Connector • Seatbelt (Retractable) • Horizontal Fork Indicator, Overhead Guard • Key Switch, Hand Parking Brake and Hour Meter • Meets ANSI B56.1 OPTIONAL FEATURES • EE Construction (Includes Battery Side Cover) • Non-standard Fork Lengths • Dual Overhead Guard Mounted LED Headlights • Dual Rear Safety LED Light Bars • Safety Flashing LED Light • Backup Alarm - Beeping Tone ("smart" dB adjusting) • Fire Extinguisher - OHG Post Mounted • Cold storage conditioning to -20° F (-29° C) • Roller Slide-out Battery Tray • Laser Fork Height Indicator • Fork Positioner • Keyless Key Pad On-Off • Long Load Handling Package • Auxiliary Hydraulics • Overload Sensor with Alarm

1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp SL80 MAST OPTIONS Lift Height Lowered Height Free Lift* Inches Meters Inches Meters Inches Meters Triple (3 stage) Mast 141 3.58 85 2.16 43 1.09 159 4.04 91 2.31 49 1.24 177 4.50 97 2.46 55 1.40 197 5.00 104 2.64 62 1.57 220 5.59 112 2.84 70 1.78 245 6.22 121 3.07 79 2.01 259 6.58 126 3.20 84 2.13 281 7.14 134 3.40 92 2.34 * Free Lift Based on 42" (1067mm) high load backrest ® Model SL60 Capacity Ibs/kg 6,000/2,727 Load center in/mm 24/600 Power source Battery, electric Weight with battery Ibs/kg 18,650/8,477 Travel...
