Landoll Corporation Drexel SL 120 Forklift Truck
Landoll Corporation Drexel SL 120 Forklift Truck
- Four-wheel configuration with front-wheel drive and rear-wheel steering.
- High visibility, 3-stage mast with 90° pivoting and shifting capability.
- 72-volt electrical system with safety features like a driver's seat switch and retractable seatbelt.
- Hydraulic brakes, hand-actuated parking brake, and hydrostatic power steering.
- GE "SCR" controls and battery discharge indicator with lift interrupt.
- Polyurethane drive and steer tires, overhead guard, and load backrest.
- Meets ANSI B56.1 standards.
- Strobe warning light and flashing backup light in various colors.
- Headlights, backup alarm, fire extinguisher, and Type "EE" construction.
- Battery compartment rollers and long load handling package.
- Travel speed: 5 mph (8.05 kph) loaded, 6 mph (9.65 kph) unloaded.
- Lift speed: 30 fpm (9 mm) loaded, 40 fpm (12 mm) unloaded.
- Lower speed: 80 fpm (24 mm) loaded, 35 fpm (11 mm) unloaded.
- Mast tilt: 3° forward, 6° backward.
- Overall dimensions: Length 119 inches (3,020 mm), width 65 inches (1,640 mm), height 91 inches (2,310 mm).
- Turning radius: 108 inches (2,740 mm).
Catalog excerpts

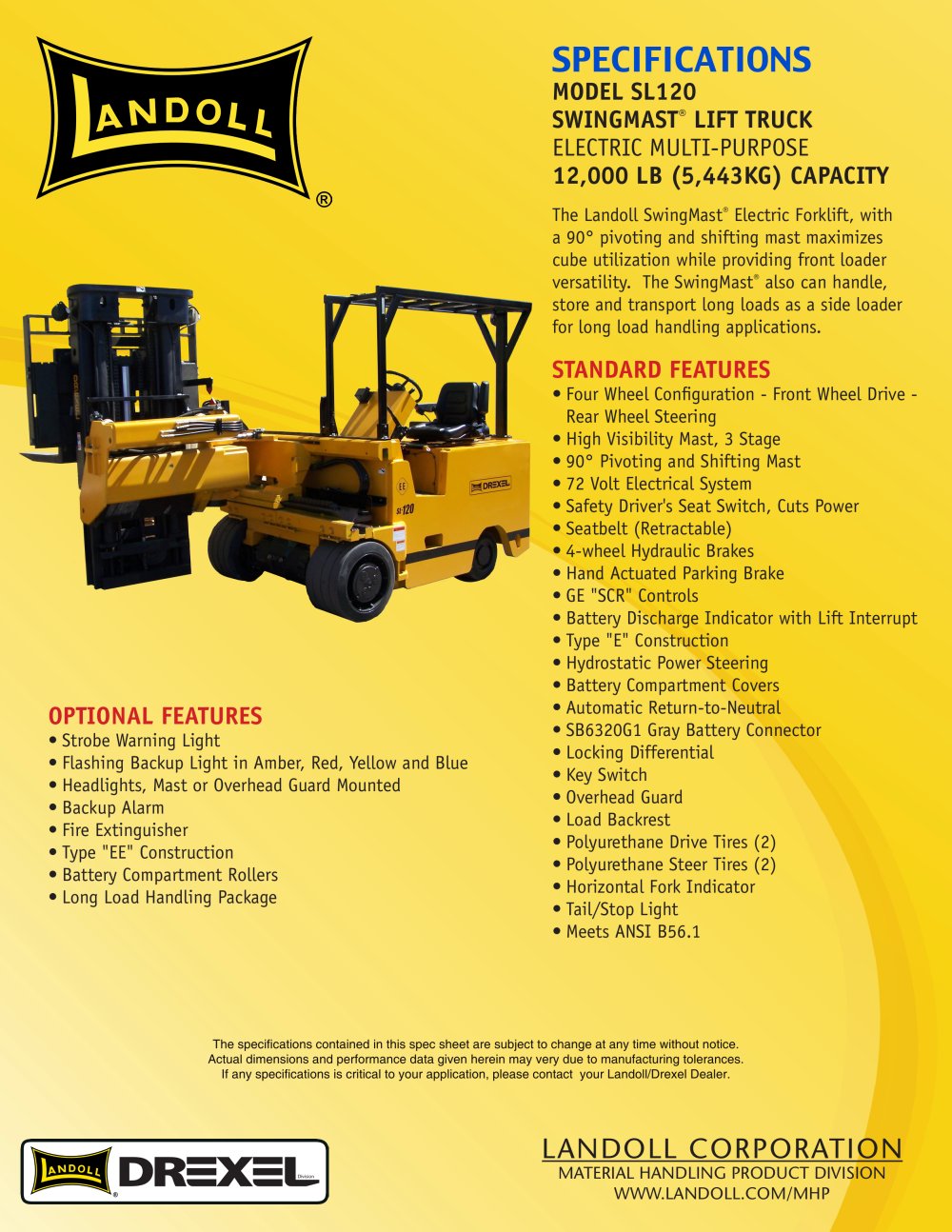

LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP SPECIFICATIONS MODEL SL120 SWINGMAST® LIFT TRUCK ELECTRIC MULTI-PURPOSE 12,000 LB (5,443KG) CAPACITY The Landoll SwingMast® Electric Forklift, with a 90° pivoting and shifting mast maximizes cube utilization while providing front loader versatility. The SwingMast® also can handle, store and transport long loads as a side loader for long load handling applications. STANDARD FEATURES • Four Wheel Configuration - Front Wheel Drive - Rear Wheel Steering • High Visibility Mast, 3 Stage • 90° Pivoting and Shifting Mast • 72 Volt Electrical System • Safety Driver's Seat Switch, Cuts Power • Seatbelt (Retractable) • 4-wheel Hydraulic Brakes • Hand Actuated Parking Brake • GE "SCR" Controls • Battery Discharge Indicator with Lift Interrupt • Type "E" Construction • Hydrostatic Power Steering • Battery Compartment Covers • Automatic Return-to-Neutral • SB6320G1 Gray Battery Connector • Locking Differential • Key Switch • Overhead Guard • Load Backrest • Polyurethane Drive Tires (2) • Polyurethane Steer Tires (2) • Horizontal Fork Indicator • Tail/Stop Light • Meets ANSI B56.1 OPTIONAL FEATURES • Strobe Warning Light • Flashing Backup Light in Amber, Red, Yellow and Blue • Headlights, Mast or Overhead Guard Mounted • Backup Alarm • Fire Extinguisher • Type "EE" Construction • Battery Compartment Rollers • Long Load Handling Package The specifications contained in this spec sheet are subject to change at any time without notice. Actual dimensions and performance data given herein may very due to manufacturing tolerances. If any specifications is critical to your application, please contact your Landoll/Drexel Dealer.
Open the catalog to page 1
1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp INTERTEK ISO 9001:2000 MHEDA YOUR INDUSTRY CONNECTION MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company SL120 MAST OPTIONS Max. Fork Height (A) Collapsed Hieght (B) Free Lift Height* (C) Max Overall Height (D) IN CM IN CM IN CM IN CM 135 345 82 208 42 108 177 450 153 389 88 224 48 122 195 495 168 427 94 239 54 137 210 533 178 452 98 249 58 147 220 559 193 490 104 264 64 163 235 597 207 526 110 279 70 179 249 633 233 592 120 305 80 203 275 699 243 617 124 315 84 213 285 724 ABOVE DIMENSIONS ARE BASED ON A 16"...
