Landoll Corporation Drexel R60SL Forklift Truck

Landoll Corporation Drexel R60SL Forklift Truck

Product catalog summary

Specifications Overview:
The SwingMast® Model R60SL is an internal combustion lift truck with a capacity of 6,000 lbs (2,721 kg). It is powered by a Liquid Propane Gas (LPG) engine and features a two-speed forward and reverse power-shift transmission. The truck is designed with a four-wheel configuration, front-wheel drive, and rear-wheel steering.

Standard Features:

High visibility mast with 3 or 4 stages and 90° pivoting and shifting capability.
Joystick control levers and long load handling support.
Adjustable driver's seat with seat belts and hand-actuated parking brake.
Hydraulic service brakes and hydrostatic power steering.
Solid pneumatic style drive and load tires (non-flat).
Additional safety features include a neutral start, anti-restart, and positive crankcase ventilation.

Optional Features:

Clean Burn Diesel (CBD) powered engine.
Various warning lights and safety features such as strobe warning light, backup alarm, and rearview mirror.
Hydraulic fork positioner and dual 12V batteries.
Cab with wipers, heater defroster, and noise reduction.

Technical & Dimension Data:

Maximum fork height options range from 155 inches (394 cm) to 240 inches (610 cm).
Truck weight is 20,100 lbs (9,117 kg) with a travel speed of 10 mph (16 kph) both loaded and unloaded.
Lift speed is 85 fpm (26 mpm) loaded and 87 fpm (27 mpm) unloaded.
Turning radius is 106 inches (2,690 mm) with an overall width of 54 inches (1,370 mm).

Battery Specifications:

Recommended battery type is either flooded or sealed with a negative ground.
12V battery with 685 cranking amps at 32°F (0°C).

Additional Notes:
The specifications are subject to change without notice, and actual dimensions may vary due to manufacturing tolerances. The forklift is designed for very narrow aisle applications.

Catalog excerpts

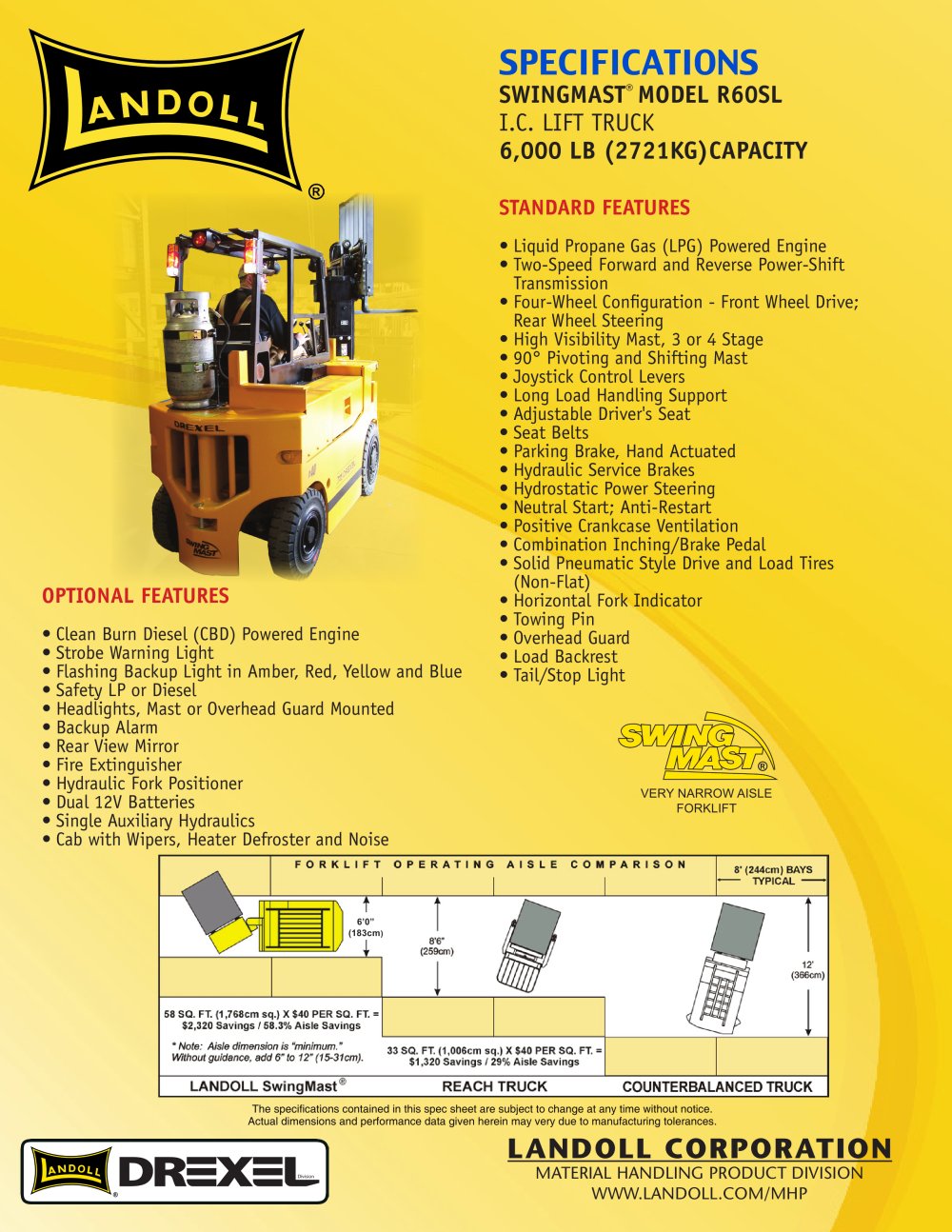

Landoll Corporation Drexel R60SL Forklift Truck-1

OPTIONAL FEATURES Clean Burn Diesel (CBD) Powered Engine Strobe Warning Light Flashing Backup Light in Amber, Red, Yellow and Blue Headlights, Mast or Overhead Guard Mounted Backup Alarm Rear View Mirror Fire Extinguisher Hydraulic Fork Positioner Single Auxiliary Hydraulics Cab with Wipers, Heater Defroster and Noise STANDARD FEATURES Liquid Propane Gas (LPG) Powered Engine Two-Speed Forward and Reverse Power-Shift Four-Wheel Configuration - Front Wheel Drive; Rear Wheel Steering High Visibility Mast, 3 or 4 Stage 90° Pivoting and Shifting Mast Joystick Control Levers Long Load Handling Support Adjustable Driver's Seat Seat Belts Parking Brake, Hand Actuated Hydraulic Service Brakes Hydrostatic Power Steering Neutral Start; Anti-Restart Positive Crankcase Ventilation Combination Inching/Brake Pedal Solid Pneumatic Style Drive and Load Tires Horizontal Fork Indicator Overhead Guard Load Backrest Tail/Stop Light VERY NARROWAISLE $2,320 Savings t 53.3% Aisle Savings 'Note: Aisle dimension is "minimum." $1,320 Savings ; 29% Aisle Savings LANDOLL SwingMast REACH TRUCK COUNTERBALANCED TRUCK The specifications contained in this spec sheet are subject to change at any time without notice. Actual dimensions and performance data given herein may very due to manufacturing tolerances. LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION

Open the catalog to page 1

Landoll Corporation Drexel R60SL Forklift Truck-2

TECHNICAL & DIMENSION DATA MAST DIMENSIONS Note: Gradeability varies with engine option. RECOMMENDED BATTERY Battery Designation Battery Type: Flooded or Sealed (negative ground) Amp. Hours: 685 Cranking Amps @ 32°F (0°C) 1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/ Member Company ALLIED MEMBER

Open the catalog to page 2
