Landoll Corporation Bendi i4 -IC Narrow Aisle Forklift

Product catalog summary

Overview: The Landoll Bendi B40i4 is a 4-wheel, LP Gas Engine Powered, narrow aisle forklift designed for maximizing cube utilization with front loader versatility. It offers increased productivity, operator comfort, and safety.

Standard Features:

Capacity: 4,000 lbs (1,818 kg) at 24” (600 mm) load center.
Engine: Tier IV Certified, LP Gas, 2.4L GM Vortec Engine with electronic fuel injection for efficiency.
Control: CAN-Bus electronics for integrated drive, lift, and steering control.
Maintenance: Simplified diagnostics and calibration via dash display.
Safety: Automatic hydrostatic braking, hydraulic parking brake, and safety deadman seat switch.
Visibility: High visibility 3-stage or 4-stage mast with integral sideshifter and load backrest.
Comfort: Adjustable vinyl suspension swivel seat, armrest, and adjustable steering column.
Design: Heavy-duty unitized robotic welded chassis and 4-post overhead guard.

Optional Features:

Non-standard fork lengths or load backrest.
LED headlights, flashing light, and rear safety lights.
Beeping backup alarm and integral side shifting fork positioner.
Auxiliary hydraulics and non-marking tires.
Cloth seat, fire extinguisher, and laser fork height indicator.
Carriage mounted camera with operator compartment monitor.

Technical & Dimension Data:

Truck Weight: 13,140 lbs (5,972 kg) with battery.
Travel Speed: 8 mph (13 kph) loaded/unloaded.
Lift Speed: 90 fpm (27.4 mpm) loaded, 110 fpm (33.4 mpm) unloaded.
Lowering Speed: 100 fpm (30.5 mpm) loaded, 90 fpm (27.4 mpm) unloaded.
HP Rating: 67 HP at 3,000 RPM.
Wheelbase: 69 in (175 cm).
Overall Length to Fork Face: 109 in (277 cm).
Gradeability: 15% loaded/unloaded.

Mast Options:

Triple (3 Stage) Mast: Lift heights from 188 in (4.78 m) to 360 in (9.14 m).
Quad (4 Stage) Mast: Lift heights from 250 in (6.35 m) to 312 in (7.92 m).

Aisle Dimensions:

Load Depth x Width: Minimum clear aisle for 40" x 48" (1,000 x 1,200 mm) is 72" (1,828 mm).
Transfer or End Aisle: 114" (2,895 mm).

Catalog excerpts

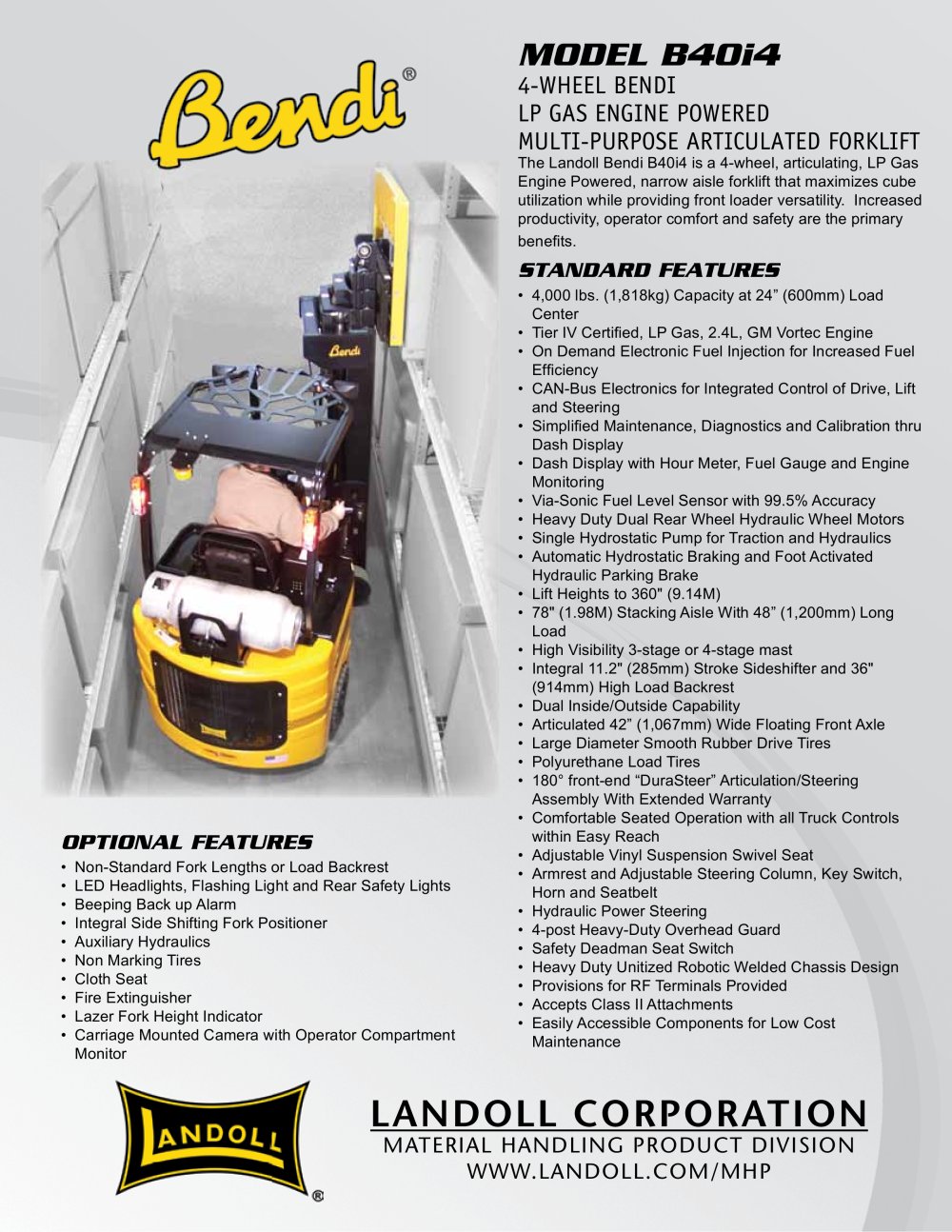

Landoll Corporation Bendi i4 -IC Narrow Aisle Forklift-1

MODEL B40i4 4-WHEEL BENDI LP GAS ENGINE POWERED MULTI-PURPOSE ARTICULATED FORKLIFT The Landoll Bendi B40i4 is a 4-wheel, articulating, LP Gas Engine Powered, narrow aisle forklift that maximizes cube utilization while providing front loader versatility. Increased productivity, operator comfort and safety are the primary benefi ts. STANDARD FEATURES • 4,000 lbs. (1,818kg) Capacity at 24” (600mm) Load Center • Tier IV Certifi ed, LP Gas, 2.4L, GM Vortec Engine • On Demand Electronic Fuel Injection for Increased Fuel Effi ciency • CAN-Bus Electronics for Integrated Control of Drive, Lift and Steering • Simplifi ed Maintenance, Diagnostics and Calibration thru Dash Display • Dash Display with Hour Meter, Fuel Gauge and Engine Monitoring • Via-Sonic Fuel Level Sensor with 99.5% Accuracy • Heavy Duty Dual Rear Wheel Hydraulic Wheel Motors • Single Hydrostatic Pump for Traction and Hydraulics • Automatic Hydrostatic Braking and Foot Activated Hydraulic Parking Brake • Lift Heights to 360" (9.14M) • 78" (1.98M) Stacking Aisle With 48” (1,200mm) Long Load • High Visibility 3-stage or 4-stage mast • Integral 11.2" (285mm) Stroke Sideshifter and 36" (914mm) High Load Backrest • Dual Inside/Outside Capability • Articulated 42” (1,067mm) Wide Floating Front Axle • Large Diameter Smooth Rubber Drive Tires • Polyurethane Load Tires • 180° front-end “DuraSteer” Articulation/Steering Assembly With Extended Warranty • Comfortable Seated Operation with all Truck Controls within Easy Reach • Adjustable Vinyl Suspension Swivel Seat • Armrest and Adjustable Steering Column, Key Switch, Horn and Seatbelt • Hydraulic Power Steering • 4-post Heavy-Duty Overhead Guard • Safety Deadman Seat Switch • Heavy Duty Unitized Robotic Welded Chassis Design • Provisions for RF Terminals Provided • Accepts Class II Attachments • Easily Accessible Components for Low Cost Maintenance LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP OPTIONAL FEATURES • Non-Standard Fork Lengths or Load Backrest • LED Headlights, Flashing Light and Rear Safety Lights • Beeping Back up Alarm • Integral Side Shifting Fork Positioner • Auxiliary Hydraulics • Non Marking Tires • Cloth Seat • Fire Extinguisher • Lazer Fork Height Indicator • Carriage Mounted Camera with Operator Compartment Monitor

Open the catalog to page 1

Landoll Corporation Bendi i4 -IC Narrow Aisle Forklift-2

MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company Bendi B40i4 4,000lbs (1,818 kg) LP Gas Engine Powered Multi-Purpose Articulated Forklift TECHNICAL & DIMENSION DATA 1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp B40i4/0211 The specifications contained in this spec sheet are subject to change at any time without notice. Actual dimensions and performance data given herein may vary due to manufacturing tolerances. MODEL B40i4 Capacity At 24" (600mm) Load Center Ibs/kg 4,000 / 1,818 Truck Weight With Battery Ibs/kg 13,140 / 5,972 Travel Speed Loaded mph/kph...

Open the catalog to page 2
