Landoll Corporation Bendi B40AC Electric Narrow Aisle Forklift

Product catalog summary

Overview: The Landoll Bendi B40AC is a 4-wheel electric articulated forklift designed for narrow aisles, offering versatility and maximizing space utilization. Key benefits include increased productivity, operator comfort, and safety.

Features:

Capacity: 4,000 lbs (1,818 kg)
Lift Heights: Up to 360 inches (9.14 meters)
Stacking Aisle Width: 78 inches (1.98 meters)
Standard Equipment: 11.2-inch sideshifter, 36-inch high load backrest
Dual inside/outside capability with AC powered drive motors
Cold storage capability down to -22°F (-29°C)

Drive Train:

Large diameter smooth rubber drive tires and polyurethane load tires
180° front-end articulation/steering
Heavy-duty dual rear wheel planetary drives

Engineering:

Forward and rearward mast tilt
Heavy-duty chassis design
Rotation via dual taper roller bearings with a 3-year warranty
Accepts Class II attachments
Easy maintenance with accessible components

Ergonomics & Safety:

Hydraulic power steering
Comfortable seated operation with easy-to-reach controls
4-post heavy-duty overhead guard
Safety features include a dead man seat switch, clearview mast, key switch, horn, hourmeter, adjustable suspension seat, steering column, seatbelt, and armrest

Electrical:

AC powered dual traction motor controller
AC powered hydraulic pump motor controller
Battery discharge indicator with lift interrupt
Lighting and alarm accessories available
Provisions for RF terminals

Technical & Dimension Data:

Power Source: Battery, electric
Weight with Battery: 13,770 lbs (6,259 kg)
Travel Speed: Loaded 6.5 mph (10.5 kph), Unloaded 7 mph (11.3 kph)
Lift Speed: Loaded 90 fpm (27.4 mpm), Unloaded 110 fpm (33.5 mpm)
Lowering Speed: Loaded 100 fpm (30.5 mpm), Unloaded 90 fpm (27.4 mpm)
Mast Tilt: Forward/Rearward 3/3 degrees under 276 inches (7.01 meters)
Wheelbase: 63 inches (1,600 mm)
Overall Length to Face of Forks: 103 inches (2,620 mm)
Underclearance: 3 inches (76 mm)
Cab Floor Height: 31 inches (787 mm)
Seat Height: 51 inches (1,295 mm)
Overhead Guard Height: 87 inches (2,209 mm)
Chassis Width: 48 inches (1,219 mm)
Gradeability: 15% loaded and unloaded
Hydraulic Motor Rating: 12 kW
Drive Motor Rating: Dual rear 5.6 kW each, 11.2 kW total
Wheel Sizes: Front 14x5 inches (355x127 mm), Rear 18x7 inches (457x178 mm)
Front Articulation: 180 degrees

Mast Dimensions:

3 Stage Full Free Lift: Various lift heights from 188 to 360 inches (4.78 to 9.14 meters)
4 Stage Full Free Lift: Various lift heights from 250 to 312 inches (6.35 to 7.92 meters)

Recommended Batteries:

Designation: 24-85-19, 48 Volt, 765 AHC (6-hour rate)
Nominal Size: 25 15/16" x 44 9/16" x 22 5/8" (66 x 113 x 58 cm)
Truck Compartment Size: 26" x 44 3/4" x 23" (66 x 114 x 58 cm)
Battery Weight: Min 2,600 lbs (1,181 kg) - Max 3,100 lbs (1,409 kg)

Catalog excerpts

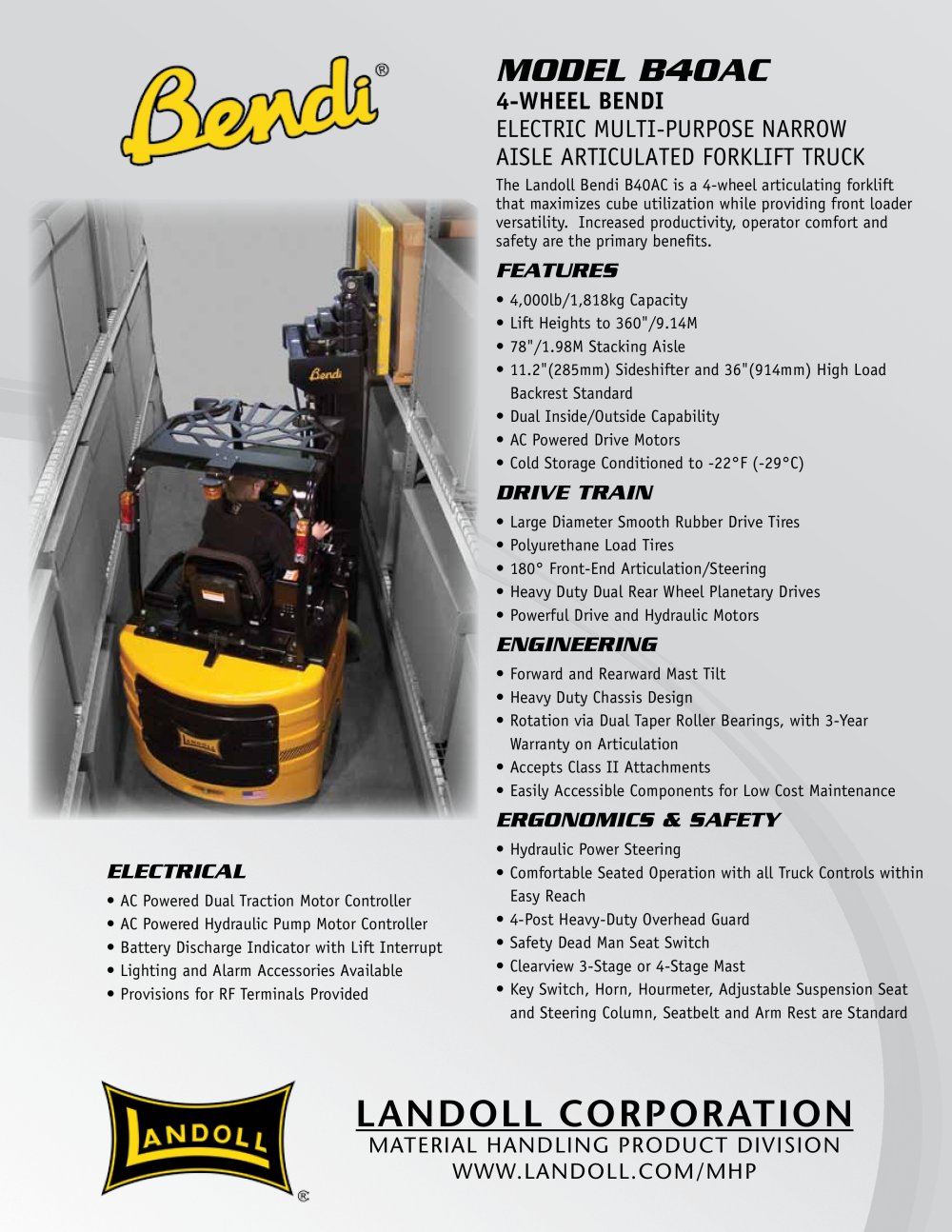

Landoll Corporation Bendi B40AC Electric Narrow Aisle Forklift-1

Model B40AC 4-Wheel Bendi Electric multi-purpose narrow aisle Articulated forklift truck The Landoll Bendi B40AC is a 4-wheel articulating forklift that maximizes cube utilization while providing front loader versatility. Increased productivity, operator comfort and safety are the primary benefits. Features • 4,000lb/1,818kg Capacity • Lift Heights to 360"/9.14M • 78"/1.98M Stacking Aisle • 11.2"(285mm) Sideshifter and 36"(914mm) High Load Backrest Standard • Dual Inside/Outside Capability • AC Powered Drive Motors • Cold Storage Conditioned to -22°F (-29°C) Drive Train • Large Diameter Smooth Rubber Drive Tires • Polyurethane Load Tires • 180° Front-End Articulation/Steering • Heavy Duty Dual Rear Wheel Planetary Drives • Powerful Drive and Hydraulic Motors Engineering • Forward and Rearward Mast Tilt • Heavy Duty Chassis Design • Rotation via Dual Taper Roller Bearings, with 3-Year Warranty on Articulation • Accepts Class II Attachments • Easily Accessible Components for Low Cost Maintenance Ergonomics & Safety • Hydraulic Power Steering • Comfortable Seated Operation with all Truck Controls within Easy Reach • 4-Post Heavy-Duty Overhead Guard • Safety Dead Man Seat Switch • Clearview 3-Stage or 4-Stage Mast • Key Switch, Horn, Hourmeter, Adjustable Suspension Seat and Steering Column, Seatbelt and Arm Rest are Standard Electrical • AC Powered Dual Traction Motor Controller • AC Powered Hydraulic Pump Motor Controller • Battery Discharge Indicator with Lift Interrupt • Lighting and Alarm Accessories Available • Provisions for RF Terminals Provided LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP

Open the catalog to page 1

Landoll Corporation Bendi B40AC Electric Narrow Aisle Forklift-2

MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company 1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp B40AC/0211 g f e a b c i j m h d Bendi B40AC - 4,000 lbs (1,818kg) Electric Multi-Purpose Articulated Forklift Truck TECHNICAL & DIMENSION DATA The specifications contained in this spec sheet are subject to change at any time without notice. Actual dimensions and performance data given herein may vary due to manufacturing tolerances. Model B40AC Capacity Ibs/kg 4,000 / 1,818 Load Center in/mm 24 / 600 Power Source Battery, electric Weight with Battery Ibs/kg 13,770...

Open the catalog to page 2
