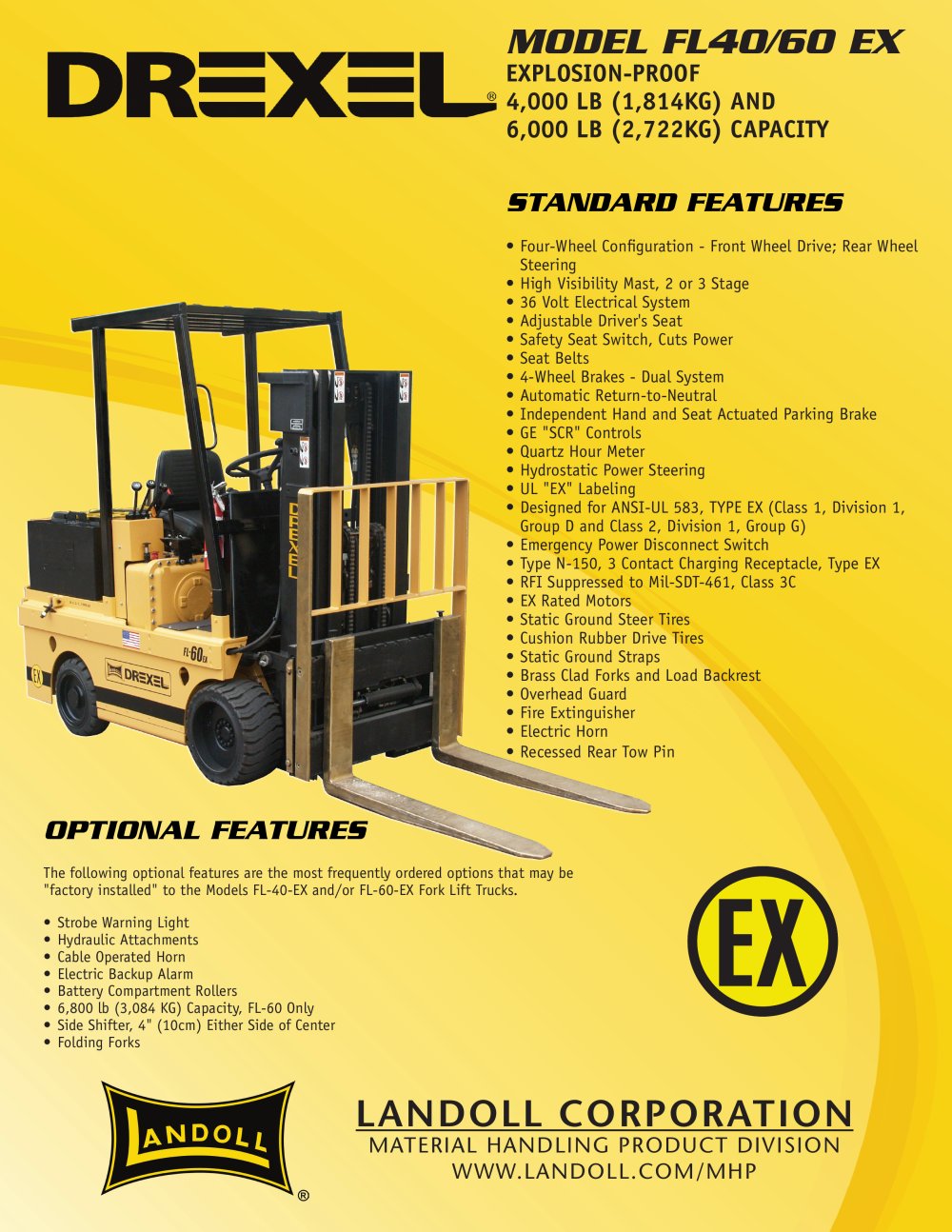

LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP MODEL FL40/60 EX EXPLOSION-PROOF 4,000 LB (1,814KG) AND 6,000 LB (2,722KG) CAPACITY STANDARD FEATURES • Four-Wheel Configuration - Front Wheel Drive; Rear Wheel Steering • High Visibility Mast, 2 or 3 Stage • 36 Volt Electrical System • Adjustable Driver's Seat • Safety Seat Switch, Cuts Power • Seat Belts • 4-Wheel Brakes - Dual System • Automatic Return-to-Neutral • Independent Hand and Seat Actuated Parking Brake • GE "SCR" Controls • Quartz Hour Meter • Hydrostatic Power Steering • UL "EX" Labeling • Designed for ANSI-UL 583, TYPE EX (Class 1, Division 1, Group D and Class 2, Division 1, Group G) • Emergency Power Disconnect Switch • Type N-150, 3 Contact Charging Receptacle, Type EX • RFI Suppressed to Mil-SDT-461, Class 3C • EX Rated Motors • Static Ground Steer Tires • Cushion Rubber Drive Tires • Static Ground Straps • Brass Clad Forks and Load Backrest • Overhead Guard • Fire Extinguisher • Electric Horn • Recessed Rear Tow Pin OPTIONAL FEATURES The following optional features are the most frequently ordered options that may be "factory installed" to the Models FL-40-EX and/or FL-60-EX Fork Lift Trucks. • Strobe Warning Light • Hydraulic Attachments • Cable Operated Horn • Electric Backup Alarm • Battery Compartment Rollers • 6,800 lb (3,084 KG) Capacity, FL-60 Only • Side Shifter, 4" (10cm) Either Side of Center • Folding Forks

RECOMMENDED BATTERY MAST DIMENSIONS MHEDA YOUR INDUSTRY CONNECTION MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company 1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp MODEL FL-40/60-EX EXPLOSION-PROOF 4,000 LB (1,814KG) AND 6,000 LB (2,722KG) CAPACITY TECHNICAL & DIMENSION DATA TECHNICAL DATA The specifications contained in this spec sheet are subject to change at any time without notice. Actual dimensions and performance data given herein may vary due to manufacturing tolerances. Battery Designation: 18-85-19 EX with Anderson Type N-150, 3 contact charging...
