B55 - Narrow Aisle AC Forklift

B55 - Narrow Aisle AC Forklift

1 / 4 PagesView full catalog

B55 - Narrow Aisle AC Forklift

Product catalog summary

Standard Features:

Capacity: 5,500 lbs (2,500 kg) at 24” (600 mm) load center.
Lift Heights: Up to 472 inches (12 meters).
Stacking Aisle: 84 inches (2.13 meters) with 48” (1200 mm) load.
Mast: High visibility 3-stage or 4-stage.
Sideshifter: Integral 11.2 inches (285 mm) stroke with 36 inches (914 mm) high load backrest.
Articulation: 180° front-end DuraSteer™ with 3-year warranty.
Drive Tires: Large diameter smooth rubber.
Load Tires: Polyurethane.
Operation: Comfortable seated with all controls within easy reach.
Display: Full diagnostic intelligent with battery discharge indicator and hour meter.
Safety: 4-post heavy-duty overhead guard, safety deadman seat switch.
Freezer Operation: Capable to -22°F (-30°C).

Optional Features:

Non-standard fork lengths.
LED headlights and safety lights.
Integral side shifting fork positioner.
Auxiliary hydraulics and non-marking tires.
Fire extinguisher and carriage mounted camera.

Technical Data:

Model: B55AC and B55AC-HL.
Weight with Battery: 16,950 lbs (8,095 kg) for B55AC, 17,810 lbs (7,705 kg) for B55AC-HL.
Travel Speed: 6.5 mph (10.5 kph) loaded, 7 mph (11.3 kph) unloaded.
Lift Speed: 90 fpm (27.4 mpm) loaded, 110 fpm (33.4 mpm) unloaded.
Gradeability: 15% loaded/unloaded.
Battery: 48 volt, 935 AHC, with specific dimensions and weight requirements.

Mast Dimensions:

Triple (3 Stage) Mast: Various lift heights with corresponding lowered and overall heights.
Quad (4 Stage) Mast: Similar specifications with higher lift capabilities.

Design and Construction:

Chassis: Heavy-duty unitized robotic welded design.
Steering: Hydraulic power steering with articulated front axle.
Maintenance: Easily accessible components for low-cost maintenance.

Catalog excerpts

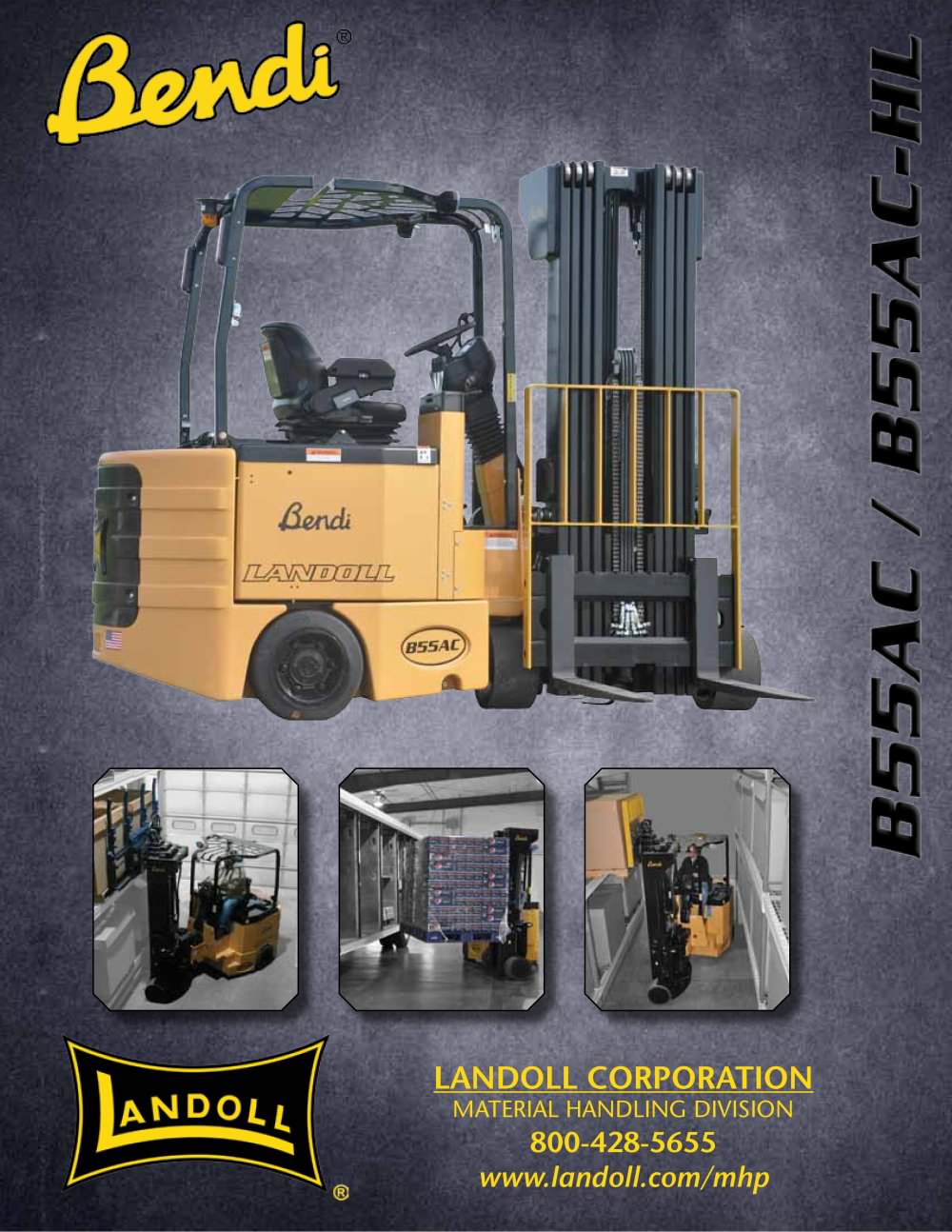

LANDOLL CORPORATION MATERIAL HANDLING DIVISION 800-428-5655 www.landoll.com/mhp

Open the catalog to page 1

800-428-5655 The specifications contained in this spec sheet are subject to change at any time without notice. Actual STANDARD Feat ures • 5,500lb/2,500kg Capacity at 24” (600mm) Load Center • Lift Heights to 472"/12M • 84"/2.13M Stacking Aisle with 48” (1200mm) Long Load • High Visibility 3-Stage or 4-Stage Mast • Integral 11.2"(285mm) Stroke Sideshifter and 36" (914mm) High Load Backrest • Dual Inside/Outside Capability • Articulated 48” (1219mm) Wide Floating Front Axle • Large Diameter Smooth Rubber Drive Tires • Polyurethane Load Tires • 180° Front-end DuraSteer™ Articulation/Steering Assembly...

Open the catalog to page 2

www.landoll.com/mhp Actual dimensions and performance data given herein may vary due to manufacturing tolerances. HL 4 Wheel Heavy Capacity Articulating Lift Truck TECHNICAL DATA AISLE DIMENSIONS MAST DIMENSIONS - B55AC RECOMMENDED BATTERIES Model B55AC B55AC-HL Capacity At 24" (600 mm) Load Center Ibs/kg 5,500 / 2,500 5,500 / 2,500 Weight With Battery lbs/kg 16,950 / 8,095 17,810 / 7,705 Travel Speed Loaded mph/kph 6.5 / 10.5 6.5 / 10.5 Unloaded mph/kph 7 / 11.3 7 / 11.3 Lift Speed Loaded fpm/mpm 90 / 27.4 90 / 27.4 Unloaded fpm/mpm 110 / 33.4 110 / 33.4 Lowering Speed Loaded fpm/mpm 100 / 30.5...

Open the catalog to page 3

1900 North Street · Marysville, KS 66508 800-428-5655 www.landoll.com/mhp B55AC/0211 MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company LANDOLL, Quality Narrow Aisle Lift Trucks for Space Optimization Rear Controller Compartment and Counterweight Control Levers with Thumb Control Directional Switch DuraSteer™ Front Wheel Steering

Open the catalog to page 4
