B40 VAC - Very Narrow Aisle AC Forklift

B40 VAC - Very Narrow Aisle AC Forklift
2Pages

Catalog excerpts

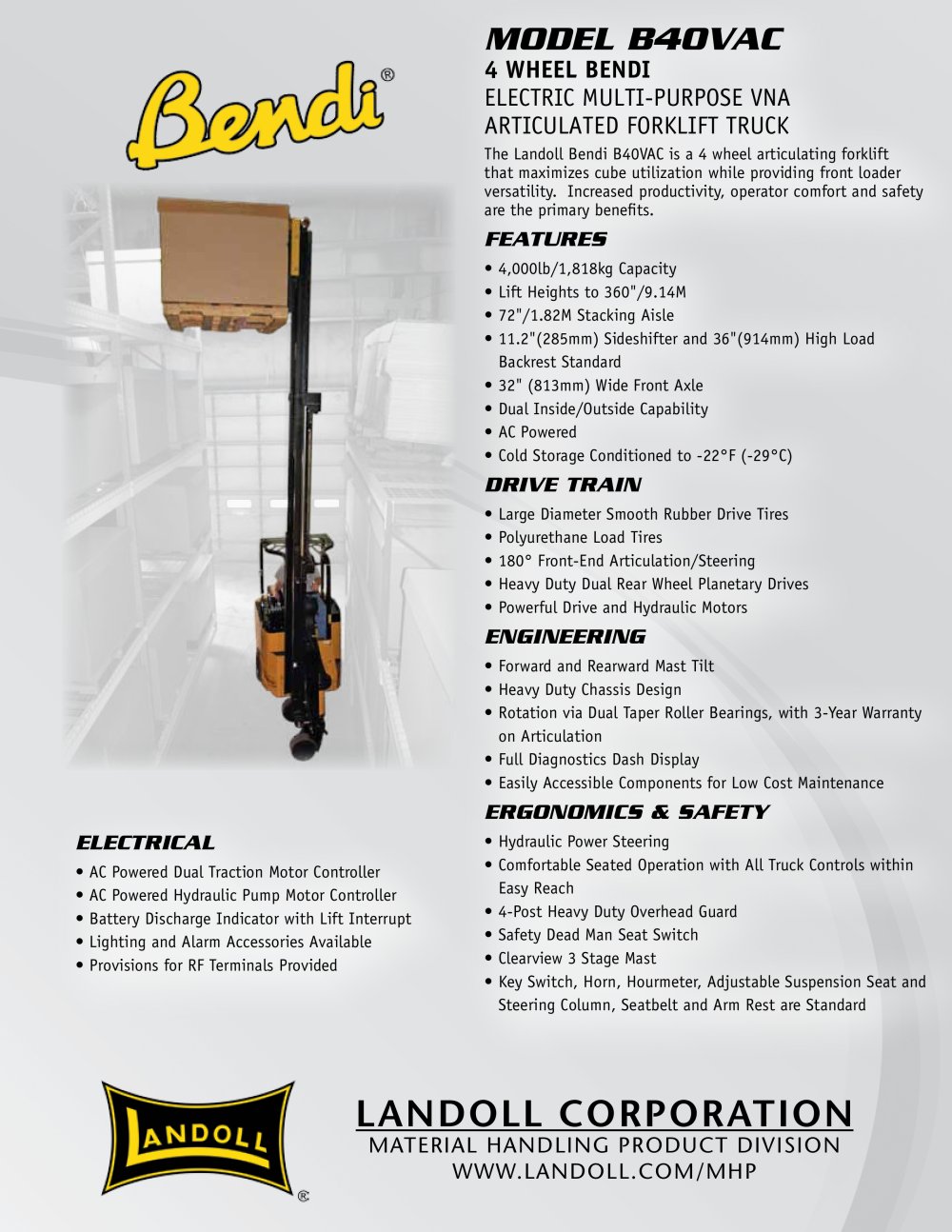

B40 VAC - Very Narrow Aisle AC Forklift - 1

Model B40VAC 4 Wheel Bendi Electric multi-purpose VNA Articulated forklift truck The Landoll Bendi B40VAC is a 4 wheel articulating forklift that maximizes cube utilization while providing front loader versatility. Increased productivity, operator comfort and safety are the primary benefits. Features • 4,000lb/1,818kg Capacity • Lift Heights to 360"/9.14M • 72"/1.82M Stacking Aisle • 11.2"(285mm) Sideshifter and 36"(914mm) High Load Backrest Standard • 32" (813mm) Wide Front Axle • Dual Inside/Outside Capability • AC Powered • Cold Storage Conditioned to -22°F (-29°C) Drive Train • Large Diameter Smooth Rubber Drive Tires • Polyurethane Load Tires • 180° Front-End Articulation/Steering • Heavy Duty Dual Rear Wheel Planetary Drives • Powerful Drive and Hydraulic Motors Engineering • Forward and Rearward Mast Tilt • Heavy Duty Chassis Design • Rotation via Dual Taper Roller Bearings, with 3-Year Warranty on Articulation • Full Diagnostics Dash Display • Easily Accessible Components for Low Cost Maintenance Ergonomics & Safety • Hydraulic Power Steering • Comfortable Seated Operation with All Truck Controls within Easy Reach • 4-Post Heavy Duty Overhead Guard • Safety Dead Man Seat Switch • Clearview 3 Stage Mast • Key Switch, Horn, Hourmeter, Adjustable Suspension Seat and Steering Column, Seatbelt and Arm Rest are Standard Electrical • AC Powered Dual Traction Motor Controller • AC Powered Hydraulic Pump Motor Controller • Battery Discharge Indicator with Lift Interrupt • Lighting and Alarm Accessories Available • Provisions for RF Terminals Provided LANDOLL CORPORATION MATERIAL HANDLING PRODUCT DIVISION WWW.LANDOLL.COM/MHP

Open the catalog to page 1

B40 VAC - Very Narrow Aisle AC Forklift - 2

MHEDA YOUR INDUSTRY CONNECTION MATERIAL HANDLING OF AMERICA ® INDUSTRY Member Company 1900 NORTH STREET • MARYSVILLE, KS 66508 • (800).428.5655 • www.landoll.com/mhp B40VAC/0211 a b c d e g f j m h i Bendi B40VAC - 4,000 lbs (1,818 kg) Electric Multi-Purpose Articulated Forklift Truck TECHNICAL & DIMENSION DATA The specifications contained in this spec sheet are subject to change at any time without notice. Actual dimensions and performance data given herein may vary due to manufacturing tolerances. Model B40VAC Capacity Ibs/kg 4,000 / 1,818 Load Center in/mm 24 / 600 Power Source Battery,...

Open the catalog to page 2
