Overview

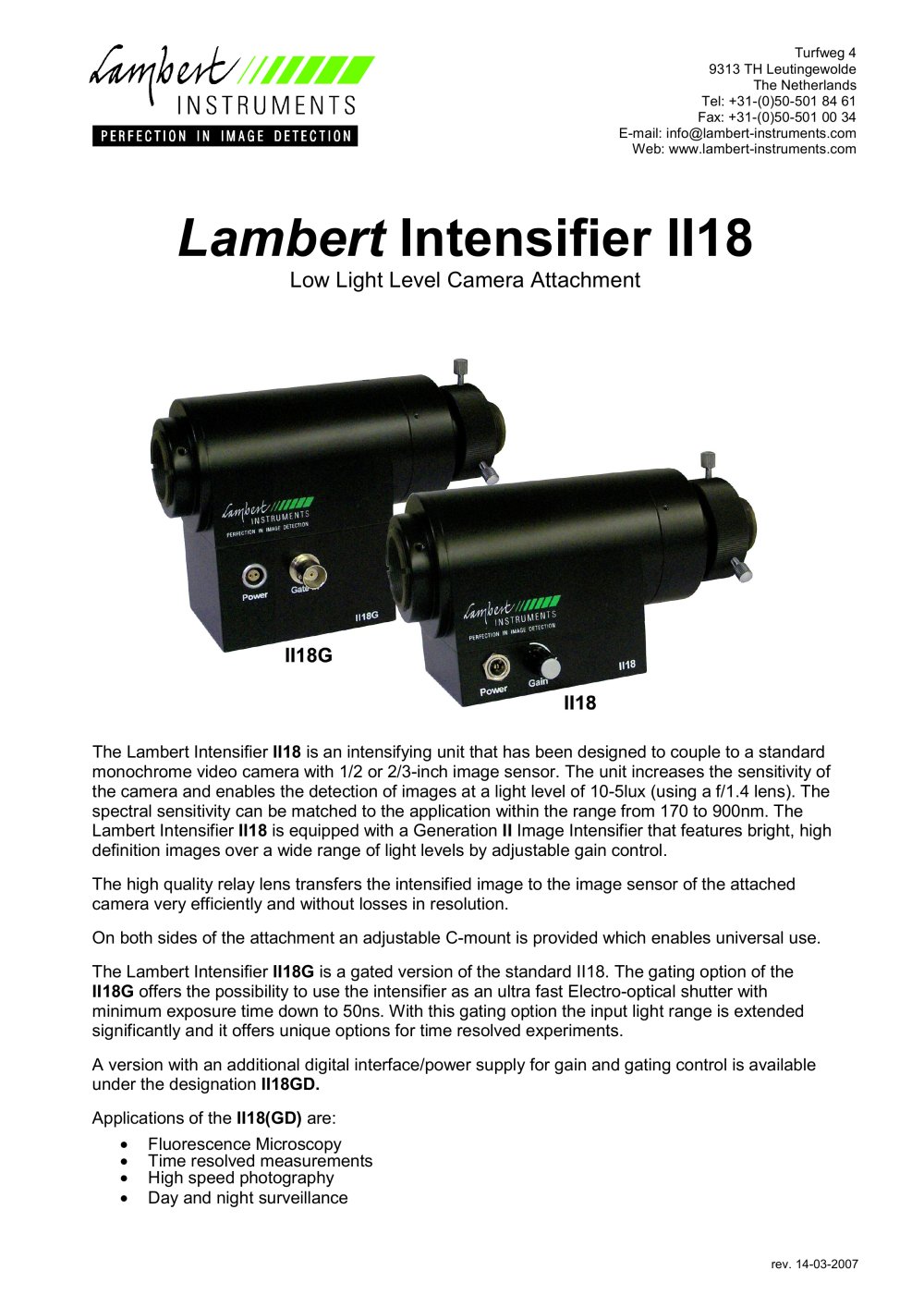

The Lambert Intensifier II18 is a low light level camera attachment designed to enhance the sensitivity of standard monochrome video cameras with 1/2 or 2/3-inch image sensors. It allows for image detection at light levels as low as 10^-5 lux using an f/1.4 lens. The device is equipped with a Generation II Image Intensifier, providing bright, high-definition images across various light levels through adjustable gain control.

Specifications

• Input format: 1 inch (16 mm diagonal)
• Magnification: 0.5x
• Resolution: 500 TV lines
• Input Voltage: 12 VDC
• Lens-/Camera-mount: Adjustable C-mount

Image Intensifier Tube

• Type: Super Generation II MCP wafer
• Input diameter: 18 mm
• Resolution: 55 lp/mm
• Gain: 7000 cd/m².lx
• Phosphor options: P20, P43, P46

Relay Optics
The system consists of a high-quality optical system with 10 elements, offering a magnification of 0.5x and a back focal distance of 8 mm.

Field of View
The field of view is determined by user-selected optics and the input format of 12.8 x 9.6 mm.

Options

• Gating (II18G): Offers modes such as follow TTL input, always on, and always off, with a gate range of 40ns to infinity.
• Digital Interface/Power Supply (II18GD): Allows software control of gain and gating, with synchronization options for camera exposure and frame rate.

Applications
The II18(GD) is suitable for applications such as fluorescence microscopy, time-resolved measurements, high-speed photography, and day/night surveillance.

Technical Data

• Gain control: Digital in 256 steps
• Trigger input: Programmable termination and level
• Outputs: 4 pulse outputs, programmable for delay, width, and polarity
• Interface to PC: Via RS-232, optional USB or Ethernet
• Input power: 100VAC-230VAC, 50-60Hz

Phosphors and Photocathodes
The document includes graphs showing the emission characteristics of different phosphors (P20, P43, P46) and the sensitivity of photocathodes (S20, Super S25) across various wavelengths.
