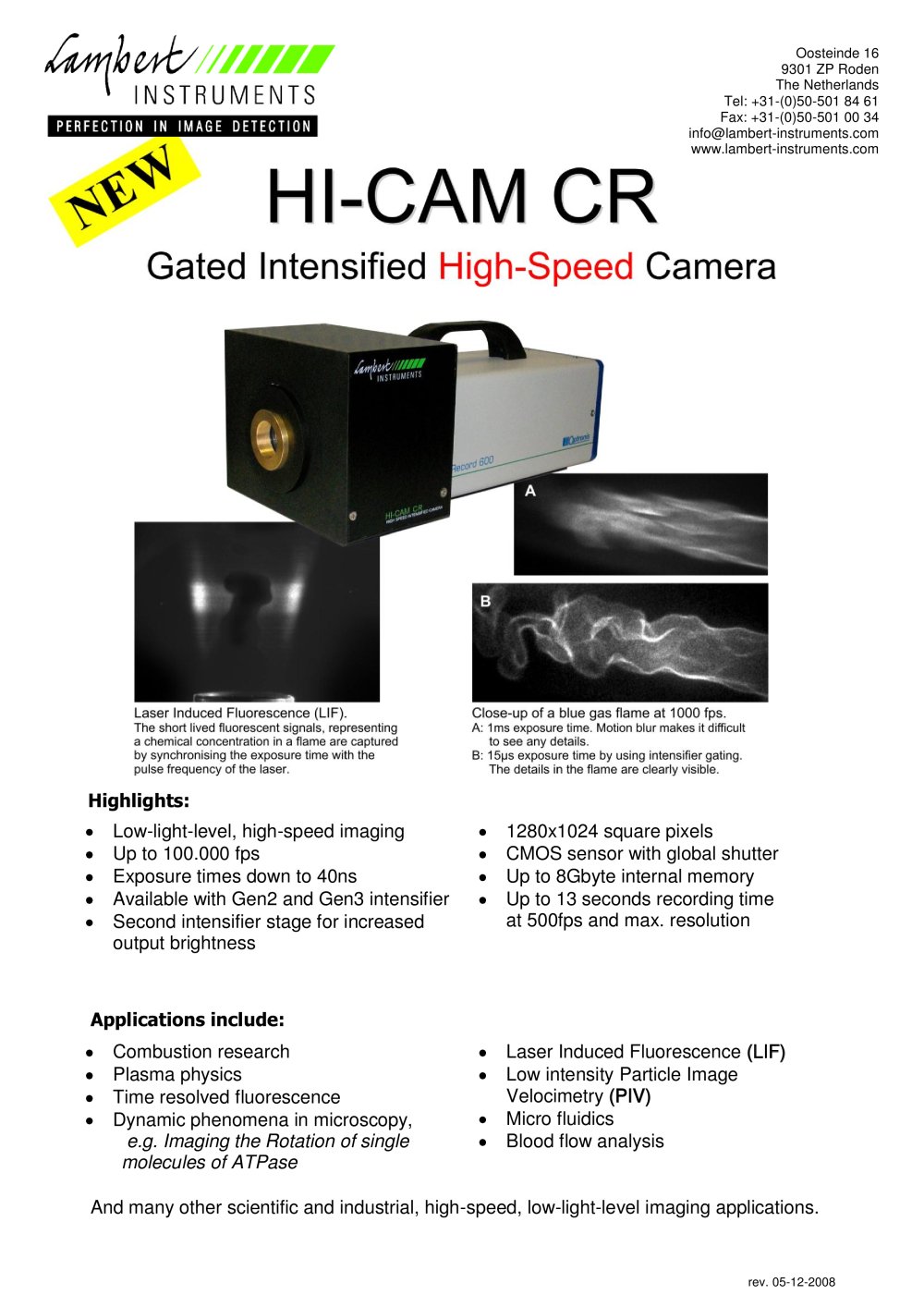

HI-CAM CR Gated Intensified High-Speed Camera

Product catalog summary

Overview: The HI-CAM CR is an advanced intensified high-speed camera designed for low-light-level imaging, capable of capturing up to 100,000 frames per second (fps). It is particularly suited for scientific and industrial applications requiring high sensitivity and speed.

Key Specifications:

Resolution: 1280 x 1024 square pixels with a 12μm pixel size.
Frame Rates: 500fps at full resolution, up to 100,000fps at reduced resolution.
Memory: Up to 8GB internal memory, allowing 13 seconds of recording at 500fps.
Exposure: Fast shutter speeds down to 40ns, with an optional 5ns.
Intensifiers: Dual-stage with Gen2 or Gen3 first stage and Gen1 second stage for increased brightness.
Sensitivity: Capable of detecting down to 0.0001 lux.
Connectivity: Ethernet output and RS232 or optional USB for intensifier control.

Applications: The camera is ideal for various applications including combustion research, plasma physics, time-resolved fluorescence, dynamic microscopy phenomena, laser-induced fluorescence, low-intensity particle image velocimetry, microfluidics, and blood flow analysis.

Additional Features:

Photocathodes options include S20(UV), S25, broadband, GaAsP, or GaAs.
Phosphor type P46 with a decay time to 10% of 0.2 - 0.4μs.
Triggering options include TTL, switch, rising or falling edge, and image content variation.
Comprehensive software package for control, viewing, and storage, with SDK and LabView driver support.

Contact Information: Lambert Instruments, Oosteinde 16, 9301 ZP Roden, The Netherlands. Tel: +31 (0)50 501 8461, Email: [email protected], Website: www.lambert-instruments.com
