- Day / Night, ICCD -intensified CCD camera

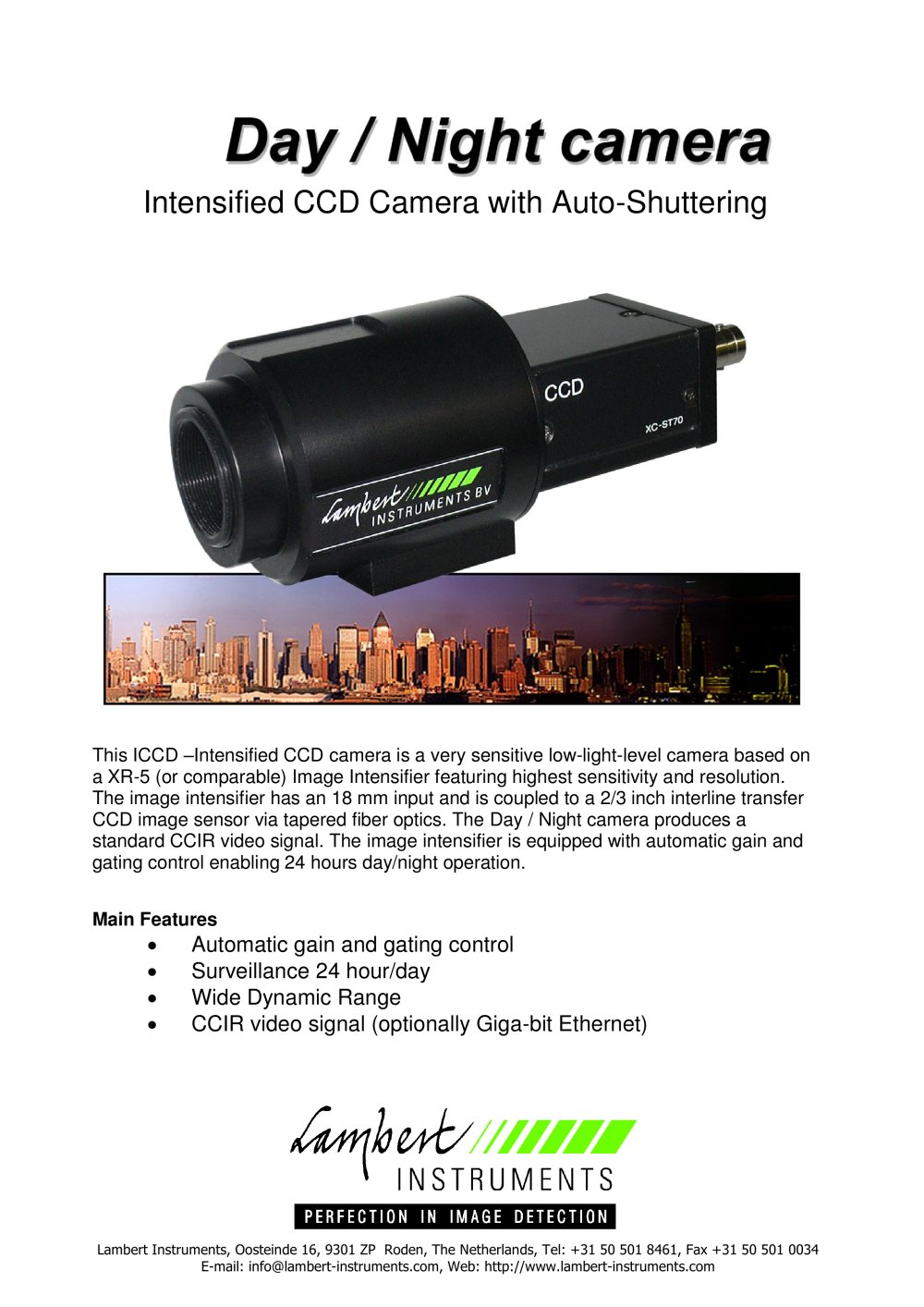

Day / Night, ICCD -intensified CCD camera
1 / 2 PagesView full catalog
Day / Night, ICCD -intensified CCD camera
Product catalog summary
Overview
This document provides technical specifications and features of the Intensified CCD (ICCD) Camera developed by Lambert Instruments. The camera is designed for low-light-level imaging, utilizing an XR-5 image intensifier for high sensitivity and resolution.
Main Features
Specifications
Image Intensifier Details
Conclusion
The ICCD camera by Lambert Instruments is a robust solution for low-light imaging, offering high sensitivity, automatic control features, and flexible video output options, making it suitable for continuous surveillance applications.
This document provides technical specifications and features of the Intensified CCD (ICCD) Camera developed by Lambert Instruments. The camera is designed for low-light-level imaging, utilizing an XR-5 image intensifier for high sensitivity and resolution.
Main Features
- Automatic gain and gating control for 24-hour surveillance.
- Wide dynamic range suitable for day/night operation.
- Produces a standard CCIR video signal, with an optional Giga-bit Ethernet output.
Specifications
- Sensor Format: 1 inch effectively.
- Resolution: 500 TV lines.
- Sensitivity: 5 x 10-6 lux.
- Video Output: CCIR, optional GigE.
- Gain/Gating Control: Automatic, synchronized with the camera.
- Input Voltage: 12 VDC.
- Power Consumption: 3.5 W.
- Lens Mount: C-mount.
Image Intensifier Details
- Type: 18mm XR5.
- Photocathode: Super S25 with high sensitivity at 2850 K and 800 nm.
- Phosphor: P20.
- Luminance Gain: 10,000 to 16,000 cd/m2lx.
- Resolution: 64 to 70 lp/mm.
- Distortion: 0%.
Conclusion
The ICCD camera by Lambert Instruments is a robust solution for low-light imaging, offering high sensitivity, automatic control features, and flexible video output options, making it suitable for continuous surveillance applications.
See more
Catalog excerpts
Specifications Minimum Typical Maximum ICCD Intensified CCD Camera Sensor format 1 inch effectively Number of effective pixels 752(H) x 582(V) (CCIR) Resolution (TV lines) 500 Sensitivity (lux) 5 x 10 > -6 Dynamic Range Day/Night Video output system CCIR, optional Giga-bit Ethernet (GigE) Gamma ON/OFF selectable Gain/gating control Automatic by intensifier synchronized with camera Black level adjustable Auto-iris lens Not required Synchronization - Internal free running - External sync. Asynchronous trigger mode (Reset / Restart) Input voltage (V) 12 VDC Power consumption (W) 3,5 Dimensions (mm)...
