METALLOGRAPHIC HOT EMBEDDING RESINS
4Pages

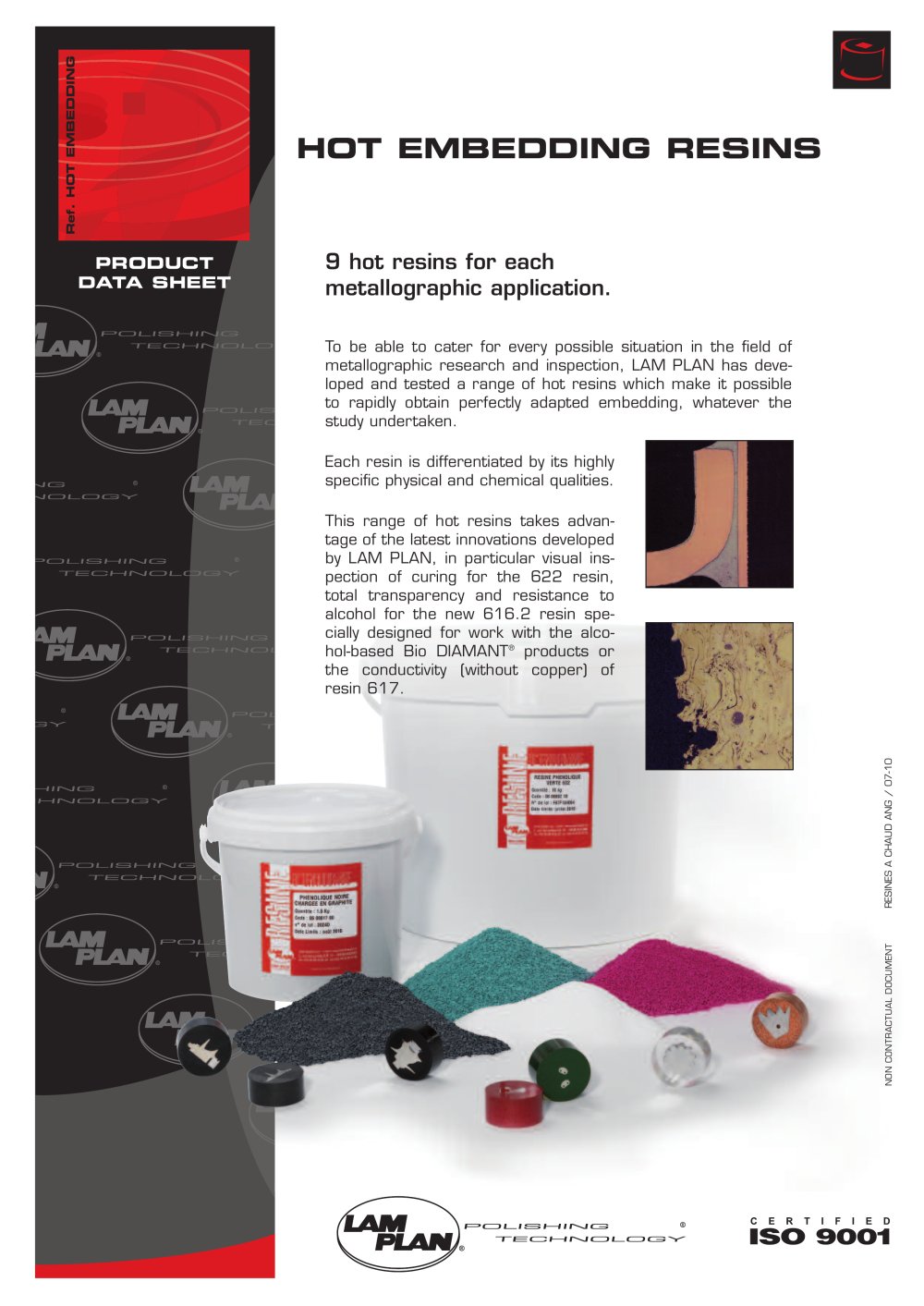

PRODUCT DATA SHEET HOT EMBEDDING RESINS Ref. HOT EMBEDDING NON CONTRACTUAL DOCUMENT RESINES A CHAUD ANG / 07-10 9 hot resins for each metallographic application. To be able to cater for every possible situation in the field of metallographic research and inspection, LAM PLAN has developed and tested a range of hot resins which make it possible to rapidly obtain perfectly adapted embedding, whatever the study undertaken. Each resin is differentiated by its highly specific physical and chemical qualities. This range of hot resins takes advantage of the latest innovations developed by LAM PLAN, in particular visual inspection of curing for the 622 resin, total transparency and resistance to alcohol for the new 616.2 resin specially designed for work with the alcohol- based Bio DIAMANT® products or the conductivity (without copper) of resin 617.

NON CONTRACTUAL DOCUMENT RESINES A CHAUD ANG / 07-10 HOT EMBEDDING RESINS For soft to semi-hard materials. Black phenolic resin with a high fibre glass content. Good resistance to abrasion and very low shrinkage. Curing time less than 15 minutes. For the examination of edges on hard to extra-hard materials. Black epoxy resin with a high fibre glass content and with a high organic content. Extremely hard, resistant to abrasion and no shrinkage. Ideal for embedding destined for edge examinations. Curing time less than 15 minutes. 602, 642 and 622 polyvalent and economic resins for everyday...

NON CONTRACTUAL DOCUMENT RESINES A CHAUD ANG / 07-10 HOT EMBEDDING RESINS To visualise the sample entirely. Transparent, acrylic resin adapted to most materials. Used principally to visualise progress in the prepolishing of the sample. Perfectly transparent. Curing time less than 15 minutes. Conductive resin for examinations by electrolytic polishing. Pure copper based resin with a very homogenous consistence which optimises the conductivity of your embeddings. The electric energy is easily passed on to the samples. Using ultra pure materials removes the risks of analysis errors. Curing...

Tel. 33 (0)4 50 43 96 30 Fax 33 (0)4 50 87 01 60 LAM PLAN S.A. 7 rue des Jardins BP 15 74240 GAILLARD France www.lamplan.com email : mmsystem@lamplan.fr NON CONTRACTUAL DOCUMENT RESINES A CHAUD ANG / 07-10 HOT EMBEDDING RESINS REFERENCES APPLICATION TABLE FOR LAM PLAN RESINS Use Properties Recommended resins Materials Types Packaging References 602 green 2,5 kg powder pot 06 00602 20 10 kg bucket 06 00602 10 642 black 2,5 kg powder pot 06 00642 20 10 kg bucket 06 00642 10 622 red 2,5 kg powder pot 06 00622 20 10 kg bucket 06 00622 10 632 black 2,5 kg powder pot 06 00632 20 10 kg bucket 06...
