LAIRD TECHNOLOGIES
ZB2430 Wireless Modules

ZB2430 Wireless Modules

Product catalog summary

Specifications
Laird Technologies manufactures the ZB2430 Wireless Modules, which function as Zigbee Coordinators with a power output of 100 mW and feature a surface mount chip antenna.

Radio Frequency
The module operates within a frequency range of 2400 to 2483.5 MHz, with variable output power between +10 to +20 dBM and a receive sensitivity of -100 dB. It requires a voltage of 3.3 V and offers an indoor range of 400 m and an outdoor range of up to 4.8 km with an external antenna.

Performance
The RF data rate is 250 Kbps, with serial interface options at 3V TTL and a maximum data rate of up to 115 Kbps.

Power Consumption
At 3.3 V and +18 dBm, the power consumption is 140 mA during transmission, 44 mA during reception, and 7.6 µA in sleep mode.

Environmental
The module operates within a temperature range of -40 to +85 ºC.

Physical
Dimensions are 25.4 x 39 x 3.6 mm.

Applications
Suitable for automated meter reading, irrigation systems, medical devices, lighting systems, and ePOS.

Zigbee Communication
The ZB2430 supports a mesh architecture with roles for Coordinator, Router, and End Devices. The Coordinator manages the network, while Routers and End Devices facilitate communication and network expansion.

Customization Options
Custom features for OEMs include optional LNA/PA, chip or external antenna, various serial interfaces, location engine, and over-the-air download capabilities.

Catalog excerpts

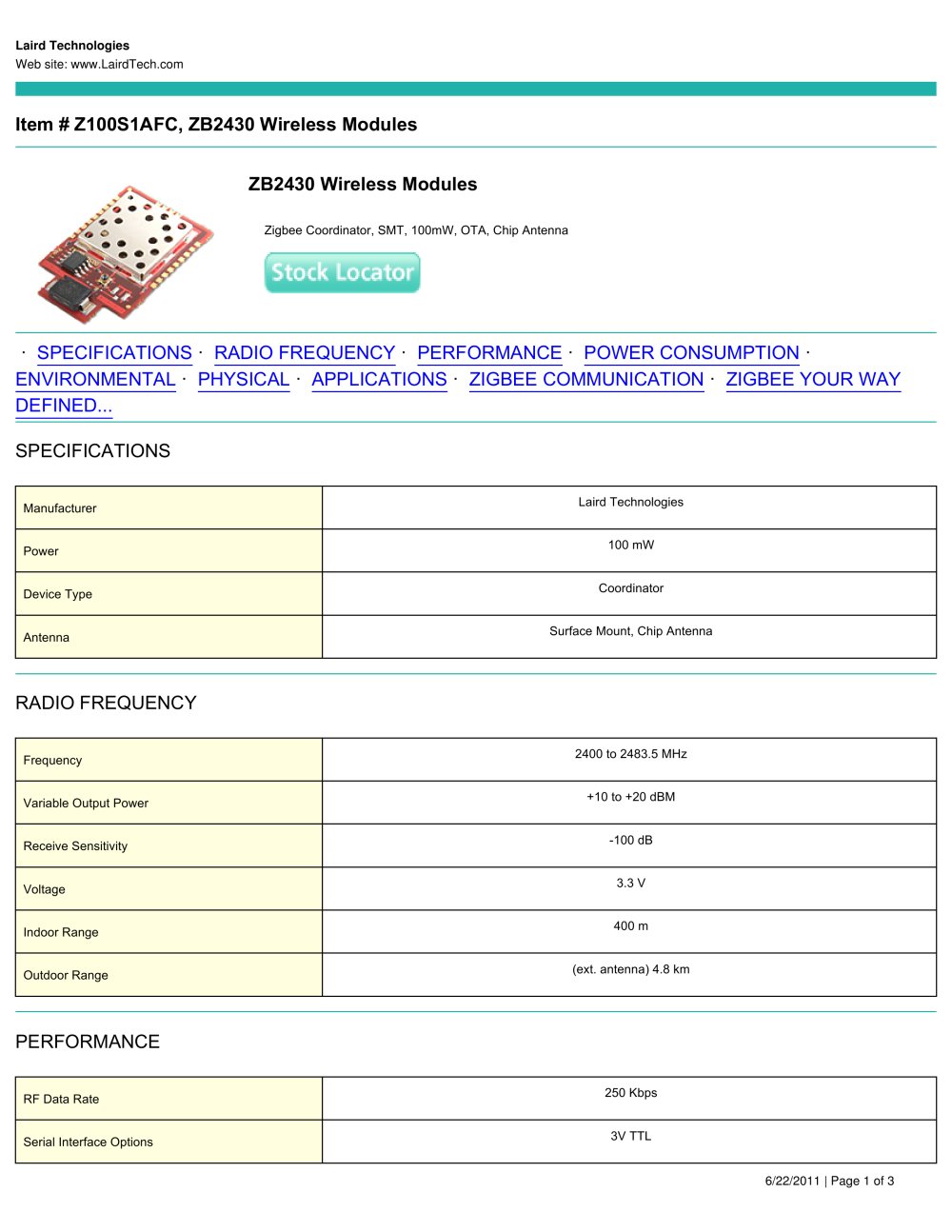

Laird Technologies Web site: www.LairdTech.com Item # Z100S1AFC, ZB2430 Wireless Modules ZB2430 Wireless Modules Zigbee Coordinator, SMT, 100mW, OTA, Chip Antenna · SPECIFICATIONS · RADIO FREQUENCY · PERFORMANCE · POWER CONSUMPTION · ENVIRONMENTAL · PHYSICAL · APPLICATIONS · ZIGBEE COMMUNICATION · ZIGBEE YOUR WAY DEFINED... SPECIFICATIONS Manufacturer Laird Technologies Power 100 mW Device Type Coordinator Antenna Surface Mount, Chip Antenna RADIO FREQUENCY Frequency 2400 to 2483.5 MHz Variable Output Power +10 to +20 dBM Receive Sensitivity -100 dB Voltage 3.3 V Indoor Range 400 m Outdoor Range (ext. antenna) 4.8 km PERFORMANCE RF Data Rate 250 Kbps Serial Interface Options 3V TTL 6/22/2011 | Page 1 of 3

Open the catalog to page 1

Max. Serial Interface Data Rate Up to 115 Kbps POWER CONSUMPTION Power Consumption (Tx) at 3.3 V, +18 dBm (Conducted) 140 mA Power Consumption (Rx) at 3.3 V 44 mA Power Consumption (Sleep) 7.6 ìA ENVIRONMENTAL Temperature -40 to +85 ºC PHYSICAL Dimensions 25.4 x 39 x 3.6 mm APPLICATIONS • Automated meter reading • Irrigation systems • Medical devices • Lighting systems • ePOS ZIGBEE COMMUNICATION ZB2430 supports mesh architecture. Each system consists of a Coordinator, Router, and optional Reduced-function End Devices. Coordinator • One coordinator per network • Scans to find available channel...

Open the catalog to page 2

Custom features are available to qualified OEMs. • Optional LNA/PA • Chip or external antenna • Serial (232/485/422) or USB • Location engine • H/W only (create your own profile) • Over the air download (future option) • Miniature SMT or pluggable 6/22/2011 | Page 3 of 3

Open the catalog to page 3
