WLAN Antennas Overview

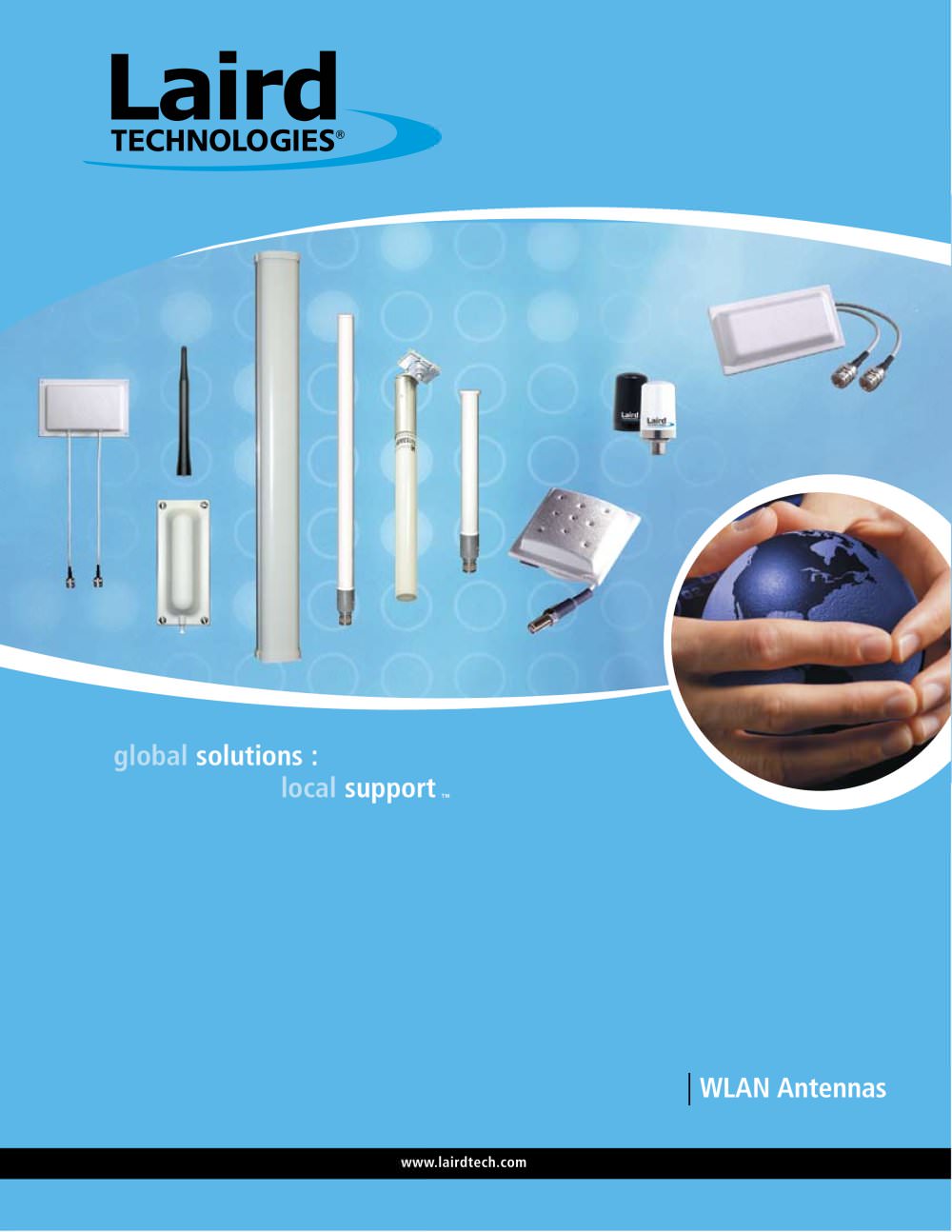

The WLAN Antennas Catalog by Laird Technologies is a comprehensive guide for WLAN 802.11 antenna requirements, detailing specifications and application notes for a wide range of antenna variables. It includes core part numbers and specifications, with custom options available.

Omnidirectional Collinear Antennas
Laird Technologies offers omnidirectional collinear antennas for frequency ranges of 2400-2500 MHz and 4900-5850 MHz, including dual-band models. These antennas are suitable for various applications and environments, providing different gain and mounting styles.

WiMAX and Vehicular Antennas
The company provides WiMAX base station antennas that meet ETSI compliance standards and rugged vehicular antennas for commercial, public safety, and military applications, available in dual-band and tri-band models.

Disclaimer
The document includes a disclaimer that Laird Technologies does not guarantee the completeness or accuracy of the information provided and is not liable for damages resulting from its use.

Specifications

Frequency Range: 2.3-2.5 GHz, 4.9-6.0 GHz, and 5.150-5.875 GHz.
Gain: 2.0 dBi to 10 dBi.
VSWR: Typically less than 2:1.
Polarization: Linear vertical.
Azimuth Beamwidth: Omnidirectional, 360-degree coverage.
Elevation Beamwidth: Up to 50°.
Mounting Styles: Ceiling, mast, beam, and direct mounting.
Power Handling: Up to 50 watts.
Dimensions: Vary significantly.

Key Models and Features

WIC2450-A Series: Miniature internal antennas.
S2406BFNM: High-gain outdoor omnidirectional antenna.
S24513BPX: Dual-band antenna for indoor and outdoor use.
S5153WBPX: High-performance antenna for the 5 GHz band.
IFULTRA-SF00: Multi-band in-building antenna.

Applications
These antennas are designed for WLAN, 802.11b, and 802.11n MIMO systems, suitable for environments like industrial complexes, offices, and shopping malls.

Additional Information
The document highlights various configurations, including different pigtail lengths and connector types, ensuring reliability across a wide temperature range.

Types of Antennas

Directional Panel Antennas: Focused signal coverage.
Sector Directional Panel Antennas: Wide-angle coverage.
Yagi Antennas: Suitable for point-to-point bridges.
Integrated Diversity Antennas: Combat multi-path fading.

Conclusion
Laird Technologies offers a comprehensive range of antennas tailored for diverse applications, ensuring robust performance and adaptability to specific coverage requirements.
