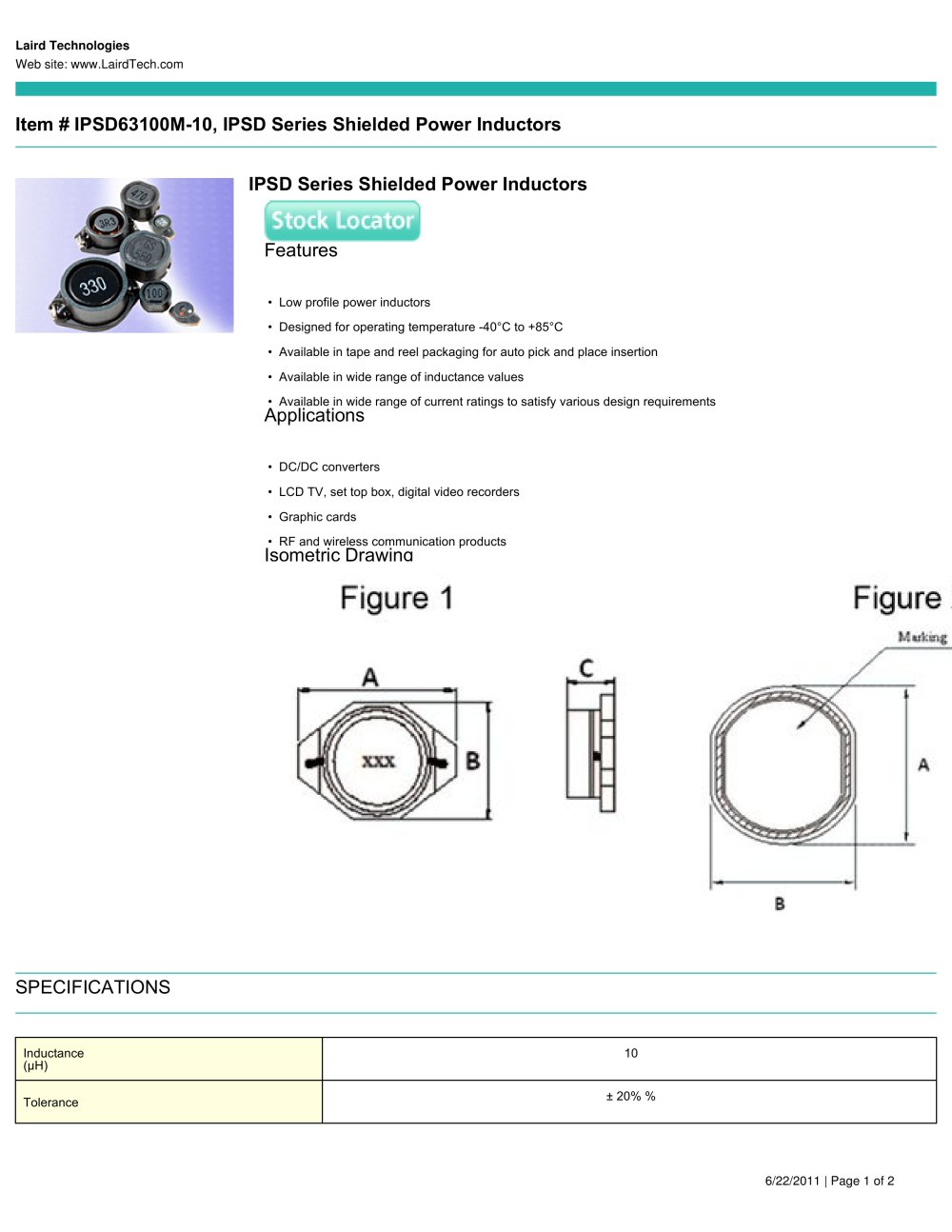

Laird Technologies Web site: www.LairdTech.com Item # IPSD63100M-10, IPSD Series Shielded Power Inductors IPSD Series Shielded Power Inductors Features • Low profile power inductors • Designed for operating temperature -40°C to +85°C • Available in tape and reel packaging for auto pick and place insertion • Available in wide range of inductance values • Available in wide range of current ratings to satisfy various design requirements Applications • DC/DC converters • LCD TV, set top box, digital video recorders • Graphic cards • RF and wireless communication products Isometric Drawing SPECIFICATIONS Inductance (ìH) 10 Tolerance ± 20% % 6/22/2011 | Page 1 of 2

Open the catalog to page 1

MAX. DCR (OHMS) 0.14 Rated Current (A) Max 1 Dimension A 6.2 ± 0.4 mm Dimension B 5.6 ± 0.4 mm Dimension C 3.2 ± 0.5 mm PCB Layout a 6.2 mm PCB Layout b 2.7 mm PCB Layout c 1.3 mm Figure Number 2 6/22/2011 | Page 2 of 2
