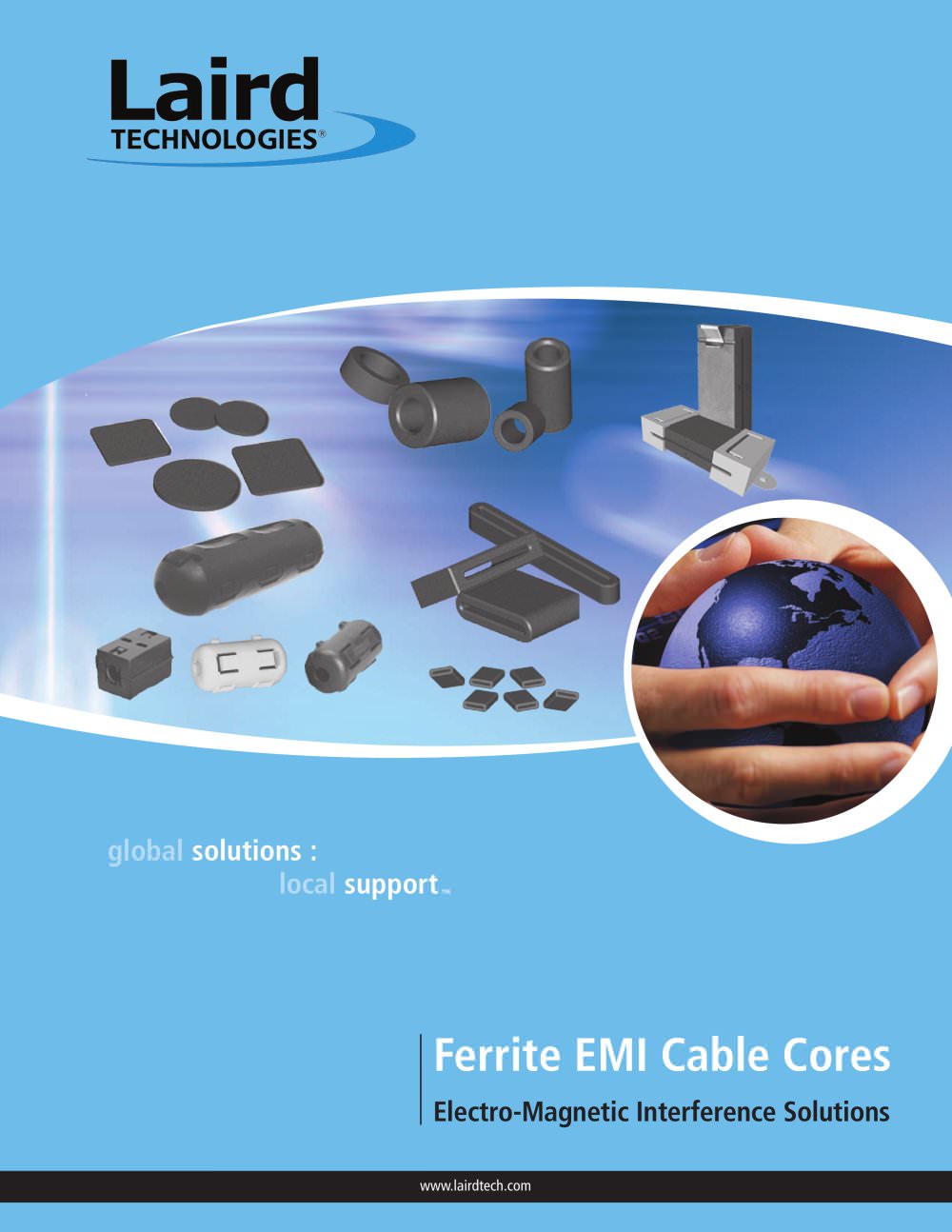

Catalog excerpts

Electro-Magnetic Interference Solutions www.lairdtech.com size="-2">

LF Low Frequency28 Broadband High Performance HF High Frequency > ) Ω Select the appropriate ferrite material for the EMI frequency range to be attenuated (refer to cable core material impedance vs. frequency chart above). ׷ Ferrite material composition affects core performance most. High performance material is best. Cheap, low performance materials require the use of larger, heavier cores. Use high performance ferrite material and select the smallest core that will do the job. High performance material allows the use of smaller, lighter and lower cost cores. Shape (design) and mass of the...

Open the catalog to page 4

Broadband (28) round cable parts are sorted by inside diameter on page 12 and sorted by impedance on page 13. Material TypeProduct CodePart Size CodeSelected Dimension Code (Usually Length)Additional PartDescriptionAdditional Part Description or Coating Part NumberDIMENSIONSmm(inches)Typical Impedance ( Z ) in Ohms ( Ω )ABC@ 25 MHz@ 100 MHz@ 300 MHz > 6.35(0.250)3.18(0.125)15.88(0.625) ABC 28B0250-100 9018230028B0268-000 > 6.78(0.267)3.99(0.157) 14.22(0.560) 6513826028B0275-000 > 7.00(0.276)3.80(0.150)13.50(0.531) 6914626828B0296-000 > 7.52(0.296)2.39(0.94)7.54(0.297) 7516027028B0315-000 >...

Open the catalog to page 7

Broad Band High Performance Material is 28 > High Frequency Material is HF >

Open the catalog to page 10

All impedance values for high frequency cores are NET; NET impedance is impedance of the ferrite core only. All impedance contribution from the test wire and fixtures has been removed. Material TypeProduct CodePart Size Code(mm)Selected Dimension Code (Usually Length)Additional PartDescriptionAdditional Part Description or Coating Code Ω ) Ω @ 500 KHz Ω @ 1 MHz Ω @ 5 MHz# of Wire Turns# of Wire Turns# of Wire TurnsABC125125125 PARTNUMBERDIMENSIONSmm(inches)Typical Impedance ( Z ) in Ohms ( LFB090050-000 > 9.00(0.354)5.00(0.197)7.00(0.275) 1258370219055836140867LFB095051-000 >...

Open the catalog to page 14

ABDCE ABDCE Figure 1Figure 2 DEBA C Figure 3 Part #28S2001-2A2 split ferrite core assembly with hinged black plastic case > Plastic Clip Assemblies: To specify one core side and one white plastic clip together, replace the second ferrite core part number character after the dash with the letter P Ӕ (example: 28S2022-0 P 0). One complete assembly of two ferrite core sides (28 material) with two plastic clips would be specified as follows: 2 of part # 28S2022-0 P 0. Attachment ears are standard. Metal Clip Assemblies: To specify one core side and one metal clip together, replace the second...

Open the catalog to page 19

Bld. 1, Dejin Industrial Park Fuyuanyi Road, Heping Community Fuyong Town, Bao An distric Shenzhen City, Guangdong Provice P.R. China 518103 Phone: +86-21-6442-8018 Fax: +86-21-6442-8018 > 750E Chai Chee Road #03-07/08 Technopark, Chai Chee 469005, Singapore Phone: +65-6-243-8022 Fax: +65-6-243-8021 > Unit 1311, Main TowerGuangdong International Hotel No. 339, Huan Shi Dong Lu Guangzhou City, Guangdong Province P.R. China, 510098 Phone: +86-20-8331-2186 Fax: +86-20-8331-2196 > 1200 East 36th Street P.O. Box 510 Chattanooga, TN., 37401-0510 Phone: +1-423-308-1690 Fax: +1-423-308-1622 > No....

Open the catalog to page 23

Laird Technologies is the world-leader in the design and supply of customized performance-critical products for wireless and other advanced electronic applications. Laird Technologies partners with its customers to help find solutions for applications in various industries such as Aerospace, Automotive Electronics, Computer, Consumer Electronics, Data Communications, Medical Equipment, Military, Network Equipment and Telecommunication industries. www.lairdtech.com SIP-CAT-CABLECORE#46-0208 size="-1">
