Catalog excerpts

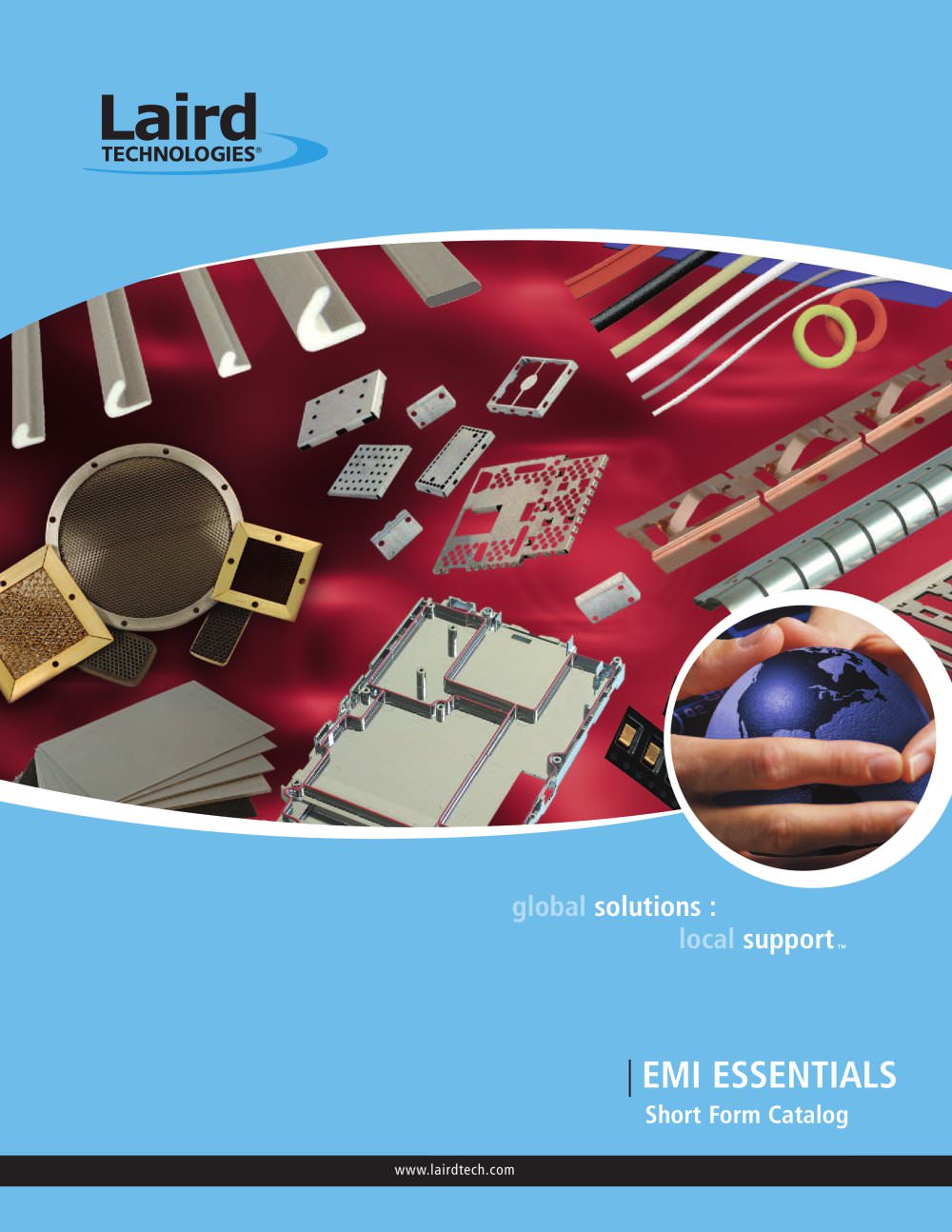

global solutions : local support > Short Form Catalog www.lairdtech.com size="-2">
Open the catalog to page 1Whether itsaone-piece shield, multi-compartmental shield orprecision contact, each solution Laird Technologies delivers is designed to provide maximum performance within aminimum timeline. Laird Technologies produces metal electronic components forsurface mount applications in a variety of industries. Laird TechnologiesҒ expertise in a number of key areas ensuresthat the part provided not only performs, but also optimizes applications.After determining the right board level shield or contactdesign for an application, Laird Technologies experts use the latest systems to develop part designs...
Open the catalog to page 3Standard surface mount shields are available in both one-piece and two-piece designs.One-piece shields offer six sides of protection, with the sixth side being the board itself. One-piece designs offer economical shielding protection where access to coveredcomponents is not necessary. There are no tooling costs associated with either the one and/or two-piece standard design. > PROPERTY TEST METHOD RESULT Co-planarity LTWI-1119 <0,10 mmSolderabilityANSI/JSTD-002>99%SolderabilityMIL-STD-202 Method 208>99%Surface mount solderabilityANSI/EIA 638PassesAppearanceLTIES-125Passes וAvailable in both...
Open the catalog to page 4Two-piece board level shields offer users the flexibility to inspect or repair shieldedcomponents without having to risk board damage by removing the entire shield or incur any tooling costs. Covers snap on and off with ease, which makes repair of the component under theshield quicker and easier and reduces board re-work. Two-piece shields are available unassembled* and are designed to survive drop, shockand no-rattle tests. > *Pre-assembly is an option. Consult sales. PICK-UP SPOT DIAMETERMATERIAL MATERIAL THICKNESS CARRIER TAPE MATERIAL > 6mm or greater 0,20 mm CRS Tin 0,20 mm LTIMS-LCB...
Open the catalog to page 5Laird Technologies electrically conductive elastomer products are ideal for both military and commercial applications requiring both environmental sealing and EMI shielding. Compounds can be supplied in molded or extruded shapes, sheet stock, custom extruded, or die-cut shapes to meet a wide variety of applications.Laird Technologies offers a series of products to meet a wide range of customer requirements. The classifications of the most common materials are based on cost and specific applications. There are over 30 compounds available.Conductive extrusions offer a wide choice of profiles...
Open the catalog to page 9Laird Technologies Form-In-Place is an automatedsystem for dispensing conductive elastomer EMI shielding and grounding gaskets onto metal or plastic substrates. This product is particularly ideal for mobile phones, PDAs, PC cards, radios and many other cast or plastic enclosures and packaged electronic assemblies. 12 >
Open the catalog to page 14Laird Technologies is a fully integratedmanufacturer of profile EMI shielding gaskets. The Metallized Fabric-Over-Foam product line hasbeen expanded greatly due to committed efforts in new product development and meeting or surpassing regulatory requirements such as RoHSand WEEE initiatives. Laird Technologies offers anEcoGreen > TM product which is both UL 94 V0 as well as halogen-free.Laird Technologies specializes in quick turnaroundof custom shapes and sizes. Laird Technologies engineers help design the rightsolution to any shielding problem. >
Open the catalog to page 16Fabric Types Metal Coating Conductivity (ASTM F390) Application Benefits Taffeta Ni/Cu < 0.07 ohms/square Profile gaskets Complex shapes,Flame retardant,Shear resistance > Foam Types Compression Set (ASTM D 3574) Color Application Benefits > Urethane(Polyester) 5 to 10% Charcoal Profile or I/Ogaskets Simple-moderate shapes,Low compression gasket,Flame retardant Sculpted Urethane(Polyether) 5 to 10% Tan Complexprofilegaskets Complex shapes,Low compression gasket,Flame retardant > Pressure SensitiveAdhesive Type Application Benefits 3M 9485 or equivalent .005 in thick Acrylic non-conductive...
Open the catalog to page 17Engineered metal Fingerstock solutions from Laird Technologiesdates from 1938. Laird Technologies specializes in designing miniature parts of thin strip metal in quantities ranging from thousands of pieces to millions of pieces.With over 3,400 standard parts, Laird Technologies probablyalready has an off-the-shelf solution that meets your applications requirements. When custom designs are needed, Laird TechnologiesҒengineering staff helps construct efficiencies in performance, cost and manufacturability from the very beginning stages of the application. Laird Technologies specialized...
Open the catalog to page 20Symmetrical (S > 3 )Slotted Shielding Slot Mount Series Dual Slot Mount Series Alternate Slot Mount Variable Slot Mount All-Purpose Series Low Profile Hook-On Gasket Low ProfileGasket Large EnclosureSeries Solid Top (S > 3 )Symmetrical SlottedShielding Twist Series Flexible LowCompression Series Foldover Series Clip-On Series Card Guide Clip-On Divider Edge Shield Mini-LongitudinalGrounding Gasket LongitudinalGrounding Series Clip-On Twist Series Contact Strips Clip-OnPerpendicularGrounding Strip Clip-OnPerpendicularShielding > Dԓ ConnectorSeries USB Connector > For additional information...
Open the catalog to page 22Part No.ProductHeightWidthLength > IN (m,m)IN (m,m)IN (m,m) 97-728USB CONNECTOR GASKET0.511 (12,979)0.448 (11,379)97-770 D CONNECTOR SERIES0.690 (17,526)0.025 (0,635)25 PIN STAINLESS STEEL97-771 D CONNECTOR SERIES0.690 (17,526)0.025 (0,635)37 PIN STAINLESS STEEL 97-780 D CONNECTOR SERIES0.690 (17,526)0.025 (0,635)PIN BERYLLIUM COPPER 97-913SOLID TOP SYMMETRICAL 0.620 (15,748)0.220 (5,588)15 (381) > For additional information on any of the other products available, please contact sales for assistance or visit www.lairdtech.com.
Open the catalog to page 24A stainless steel mounting track is available for use with our full line of gasketingmaterials. Its unique design offers a secure mounting option versatile enough for use with Fingerstock, ElectroNit > mesh, ElectroSeal elastomers, UltraSoft > ή Knit and Fabric-Over-Foam products. > To identify proper mounting track, select width and corresponding part number from the above chart. Replace the XӔ with required material thickness. PART NUMBER WIDTHIN (MM) 0095-X996-00 0.310 (7,874) 0095-X997-00 0.430 (10,922) 0095-X998-00 0.600 (15,240) MATERIAL THICKNESSIN (MM) A = 0.030 (0,762) B = 0.045...
