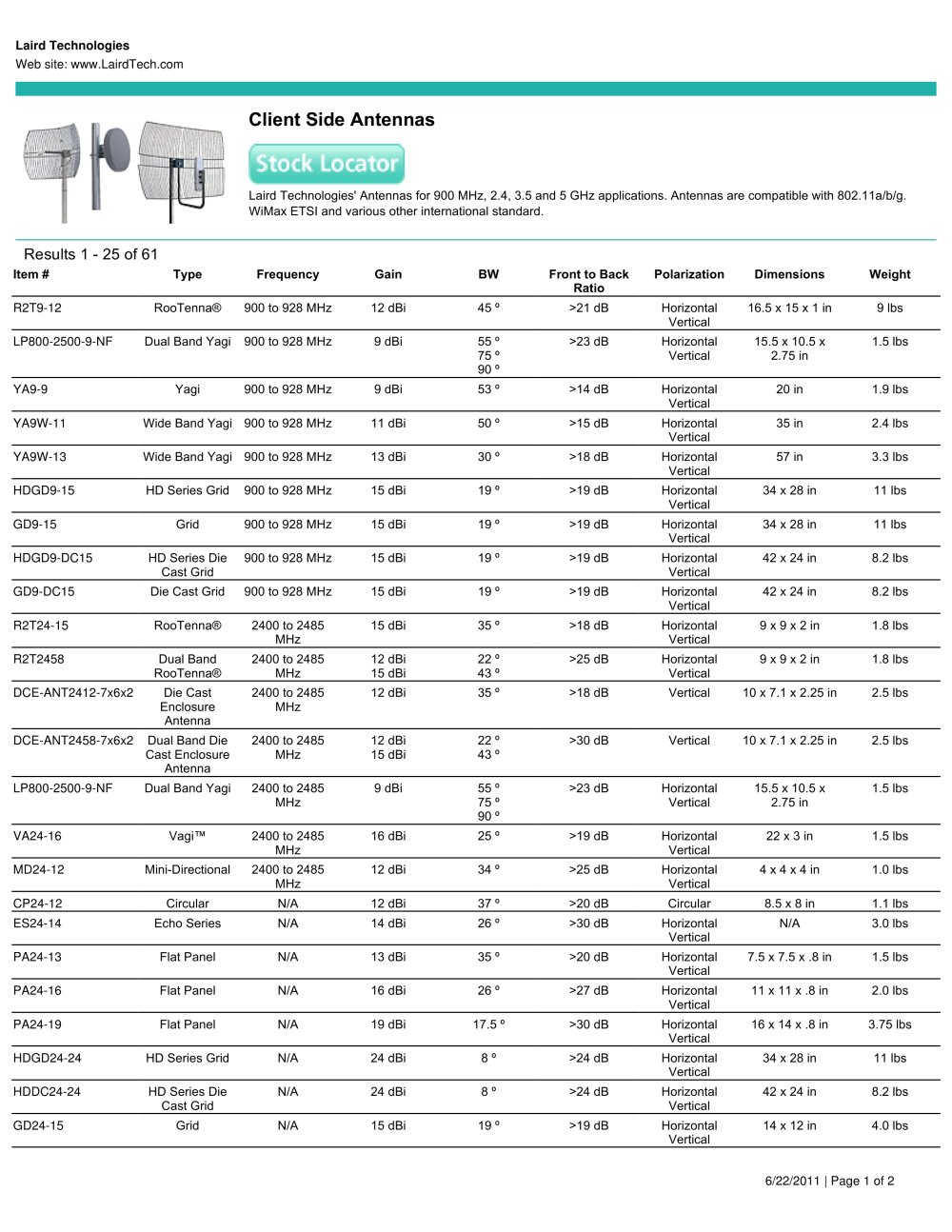

Laird Technologies Web site: www.LairdTech.com Client Side Antennas Laird Technologies' Antennas for 900 MHz, 2.4, 3.5 and 5 GHz applications. Antennas are compatible with 802.11a/b/g. WiMax ETSI and various other international standard. Results 1 - 25 of 61 Item # Type Frequency Gain BW Front to Back Ratio Polarization Dimensions Weight R2T9-12 RooTenna® 900 to 928 MHz 12 dBi 45 º >21 dB Horizontal Vertical 16.5 x 15 x 1 in 9 lbs LP800-2500-9-NF Dual Band Yagi 900 to 928 MHz 9 dBi 55 º 75 º 90 º >23 dB Horizontal Vertical 15.5 x 10.5 x 2.75 in 1.5 lbs YA9-9 Yagi 900 to 928 MHz 9 dBi 53 º >14 dB Horizontal Vertical 20 in 1.9 lbs YA9W-11 Wide Band Yagi 900 to 928 MHz 11 dBi 50 º >15 dB Horizontal Vertical 35 in 2.4 lbs YA9W-13 Wide Band Yagi 900 to 928 MHz 13 dBi 30 º >18 dB Horizontal Vertical 57 in 3.3 lbs HDGD9-15 HD Series Grid 900 to 928 MHz 15 dBi 19 º >19 dB Horizontal Vertical 34 x 28 in 11 lbs GD9-15 Grid 900 to 928 MHz 15 dBi 19 º >19 dB Horizontal Vertical 34 x 28 in 11 lbs HDGD9-DC15 HD Series Die Cast Grid 900 to 928 MHz 15 dBi 19 º >19 dB Horizontal Vertical 42 x 24 in 8.2 lbs GD9-DC15 Die Cast Grid 900 to 928 MHz 15 dBi 19 º >19 dB Horizontal Vertical 42 x 24 in 8.2 lbs R2T24-15 RooTenna® 2400 to 2485 MHz 15 dBi 35 º >18 dB Horizontal Vertical 9 x 9 x 2 in 1.8 lbs R2T2458 Dual Band RooTenna® 2400 to 2485 MHz 12 dBi 15 dBi 22 º 43 º >25 dB Horizontal Vertical 9 x 9 x 2 in 1.8 lbs DCE-ANT2412-7x6x2 Die Cast Enclosure Antenna 2400 to 2485 MHz 12 dBi 35 º >18 dB Vertical 10 x 7.1 x 2.25 in 2.5 lbs DCE-ANT2458-7x6x2 Dual Band Die Cast Enclosure Antenna 2400 to 2485 MHz 12 dBi 15 dBi 22 º 43 º >30 dB Vertical 10 x 7.1 x 2.25 in 2.5 lbs LP800-2500-9-NF Dual Band Yagi 2400 to 2485 MHz 9 dBi 55 º 75 º 90 º >23 dB Horizontal Vertical 15.5 x 10.5 x 2.75 in 1.5 lbs VA24-16 Vagi™ 2400 to 2485 MHz 16 dBi 25 º >19 dB Horizontal Vertical 22 x 3 in 1.5 lbs MD24-12 Mini-Directional 2400 to 2485 MHz 12 dBi 34 º >25 dB Horizontal Vertical 4 x 4 x 4 in 1.0 lbs CP24-12 Circular N/A 12 dBi 37 º >20 dB Circular 8.5 x 8 in 1.1 lbs ES24-14 Echo Series N/A 14 dBi 26 º >30 dB Horizontal Vertical N/A 3.0 lbs PA24-13 Flat Panel N/A 13 dBi 35 º >20 dB Horizontal Vertical 7.5 x 7.5 x .8 in 1.5 lbs PA24-16 Flat Panel N/A 16 dBi 26 º >27 dB Horizontal Vertical 11 x 11 x .8 in 2.0 lbs PA24-19 Flat Panel N/A 19 dBi 17.5 º >30 dB Horizontal Vertical 16 x 14 x .8 in 3.75 lbs HDGD24-24 HD Series Grid N/A 24 dBi 8 º >24 dB Horizontal Vertical 34 x 28 in 11 lbs HDDC24-24 HD Series Die Cast Grid N/A 24 dBi 8 º >24 dB Horizontal Vertical 42 x 24 in 8.2 lbs GD24-15 Grid N/A 15 dBi 19 º >19 dB Horizontal Vertical 14 x 12 in 4.0 lbs 6/22/2011 | Page 1 of 2
