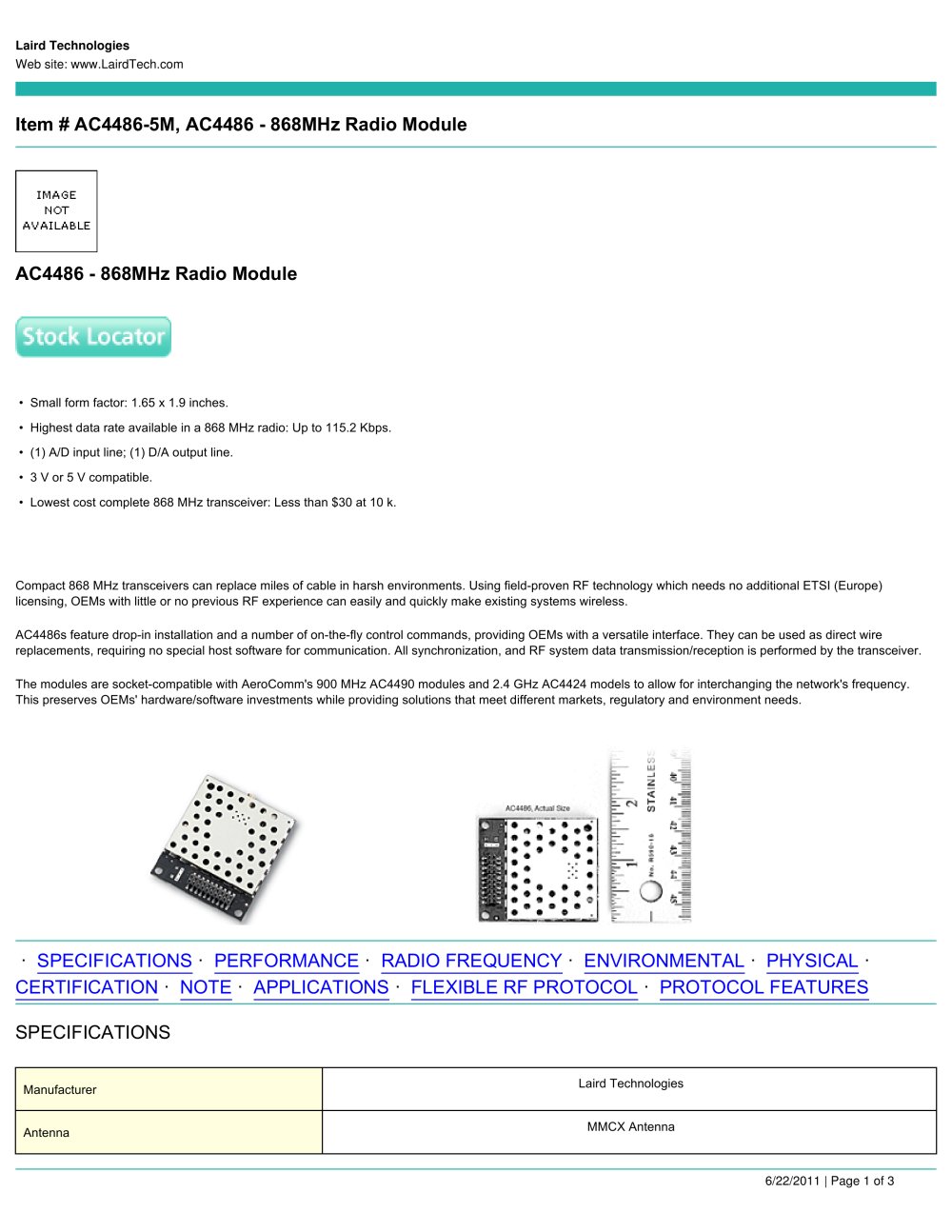

Laird Technologies Web site: www.LairdTech.com Item # AC4486-5M, AC4486 - 868MHz Radio Module AC4486 - 868MHz Radio Module • Small form factor: 1.65 x 1.9 inches. • Highest data rate available in a 868 MHz radio: Up to 115.2 Kbps. • (1) A/D input line; (1) D/A output line. • 3 V or 5 V compatible. • Lowest cost complete 868 MHz transceiver: Less than $30 at 10 k. Compact 868 MHz transceivers can replace miles of cable in harsh environments. Using field-proven RF technology which needs no additional ETSI (Europe) licensing, OEMs with little or no previous RF experience can easily and quickly make existing systems wireless. AC4486s feature drop-in installation and a number of on-the-fly control commands, providing OEMs with a versatile interface. They can be used as direct wire replacements, requiring no special host software for communication. All synchronization, and RF system data transmission/reception is performed by the transceiver. The modules are socket-compatible with AeroComm's 900 MHz AC4490 modules and 2.4 GHz AC4424 models to allow for interchanging the network's frequency. This preserves OEMs' hardware/software investments while providing solutions that meet different markets, regulatory and environment needs. · SPECIFICATIONS · PERFORMANCE · RADIO FREQUENCY · ENVIRONMENTAL · PHYSICAL · CERTIFICATION · NOTE · APPLICATIONS · FLEXIBLE RF PROTOCOL · PROTOCOL FEATURES SPECIFICATIONS Manufacturer Laird Technologies Antenna MMCX Antenna 6/22/2011 | Page 1 of 3

Open the catalog to page 1

PERFORMANCE Interface 20-Pin Mini Connector Serial Interface Options TTL serial RS232 Max. Serial Interface Data Rate 115.2 Kbps Power Consumption (Tx) 35 mA Power Consumption (Rx) 30 mA Channels Up to 2 Security One-byte system ID RADIO FREQUENCY Frequency Band (Software Selectable) 869.7 to 870.0 MHz EU 5 mW Modulation FSK Output Power (with 3dBi Antenna) 5 mW fixed (100% Duty Cycle) Voltage 3.3 to 5.5 V Sensitivity (at full RF Data Rate) -96 dBm Sensitivity (with 2dBi Antenna) -100 dB Typical at 76.8 Kbps RF Data Rate Max. Range (Typical, Depends on Antenna and Environment) 3000 ft 914 m...

Open the catalog to page 2

CERTIFICATION Approvals CE Safety Meets all safety and emissions requirements. NOTE The 868 MHz frequency band is approved in Europe as an unlicensed spectrum subject to approval by device. Although AC4868 radios will not talk to AC4490 radios, socket-compatibility allows for interchanging the modules network-wide. APPLICATIONS Recreation Areas • Irrigation systems • Golf cart tracking • Score keeping • Order entry • Grounds maintenance Pool &Spa Control • Temperature monitoring • Pump activation • Illumination • Environmental controls • Access &activity alerts Point of Sale • Inventory...
