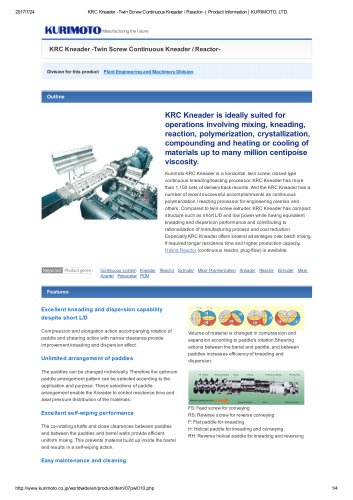

KRC Kneader -Twin Screw Continuous Kneader / Reactor- | Product Information | KURIMOTO, LTD. KRC Kneader -Twin Screw Continuous Kneader / Reactor- Division for this product Plant Engineering and Machinery Division KRC Kneader is ideally suited for operations involving mixing, kneading, reaction, polymerization, crystallization, compounding and heating or cooling of materials up to many million centipoise viscosity. Kurimoto KRC Kneader is a horizontal, twin screw, closed type continuous kneading/reacting processor. KRC Kneader has more than 1,100 sets of delivery track records. And the KRC Kneader has a number of recent successful accomplishments as continuous polymerization / reacting processor for engineering plastics and others. Compared to twin screw extruder, KRC Kneader has compact structure such as short L/D and low power while having equivalent kneading and dispersion performance and contributing to rationalization of manufacturing process and cost reduction. Especially KRC Kneader offers several advantages over batch mixing. If required longer residence time and higher production capacity, Hybrid Reactor (continuous reactor, plug-flow) is available. Keyw ord Product genre Continuous system Kneader Reactor Extruder Mixer Polymerization Kneader Reactor Extruder Mixer Aramid Polyacetal POM Excellent kneading and dispersion capability despite short L/D Compression and elongation action accompanying rotation of paddle and shearing action with narrow clearance provide improvement kneading and dispersion effect. Unlimited arrangement of paddles Volume of material is changed in compression and expansion according to paddle's rotation.Shearing actions between the barrel and paddle, and between paddles increases efficiency of kneading and dispersion. The paddles can be changed individually. Therefore the optimum paddle arrangement pattern can be selected according to the application and purpose. These selections of paddle arrangement enable the Kneader to control residence time and axial pressure distribution of the materials. Excellent self-wiping performance The co-rotating shafts and close clearances between paddles and between the paddles and barrel walls provide efficient uniform mixing. This prevents material build up inside the barrel and results in a self-wiping action. FS: Feed screw for conveying RS: Reverse screw for reverse conveying F: Flat paddle for kneading H: Helical paddle for kneading and conveying RH: Reverse helical paddle for kneading and reversing Easy maintenance and cleaning

KRC Kneader -Twin Screw Continuous Kneader / Reactor- | Product Information | KURIMOTO, LTD. The barrel which is horizontally split as standard design is easy to open for disassembling and cleaning in short time compared with Extruder. BENEFITS Three types of barrel are available • Total Enclosed • Fewer Processor Steps • Short Heat History • No Batch to Batch Variations • Shorter Cycle Time • Lower Energy Consumption • Reduce Labor • Reduce Floor Space • Eases Environmental Concerns Click here, it can be seen that screws and paddles rotate in the same direction Customer topic Continuous system...

KRC Kneader -Twin Screw Continuous Kneader / Reactor- | Product Information | KURIMOTO, LTD. Pump Unit (Metering Pump) Temperature Control System Degassing (Full Vacuum) Press Roller Mode! number Paddle revolution Reaction / Monomer Removal Reaction / Batch Reactor + Continuous Reactor Kneading / Sealant Material Others■ Image of KRC Kneader 3/4

KRC Kneader -Twin Screw Continuous Kneader / Reactor- | Product Information | KURIMOTO, LTD. Example of Industrial Scale Keyw ord Applicable processes Keyw ord Applicable industries Kneading Reaction polymerization Continuous Compound Cooling Crystal solidification Dissolvent Demonomer Heating Melting Dispersion Mixing Chemical Plastics Electrical Material Battery Material Pharmaceutics Food Lithium-ion battery Engineering Plastics Resin Aramids Polyacetal POM. Division for this page Plant Engineering and Machinery Division
