Low Pressure Turbo Compressor

Low Pressure Turbo Compressor
1 / 2 PagesView full catalog

Low Pressure Turbo Compressor

Product catalog summary
Overview: The TCL Series compressors are designed for high efficiency and environmental friendliness, offering energy savings of 30-60% compared to existing compressors. They are characterized by their quiet operation, small size, and semi-permanent life.
Key Features:
  • Low noise level of 80dB at 1 meter.
  • Compact design for easy installation in small spaces.
  • Integrated smart features including air filter, BOV, BOV silencer, and intake silencer.
  • Higher efficiency PM motor with Variable Frequency Drive (VFD).
  • Minimal supervision required with no need for instrument air, oil, or scheduled maintenance.
Specifications:
  • Pressure range: 2 to 3.5 bar.
  • Minimum air flow: 11 to 22 m3/min.
  • Maximum air flow: 13 to 36 m3/min.
  • Shaft power: 20 to 60 HP.
  • Cooling system: Air-cooled.
Dimensions and Weight:
  • Dimensions vary by model, with lengths ranging from 1620 mm to 2787 mm, and weights from 1032 kg to 1805 kg.
  • Exhaust pipe sizes range from 65A (2 1/2") to 125A (5").
Contact Information: For further information, contact KTurbo at +82-43-275-7573 or via email at [email protected]. More details can be found on their website www.kturbo.com.
See more

Catalog excerpts

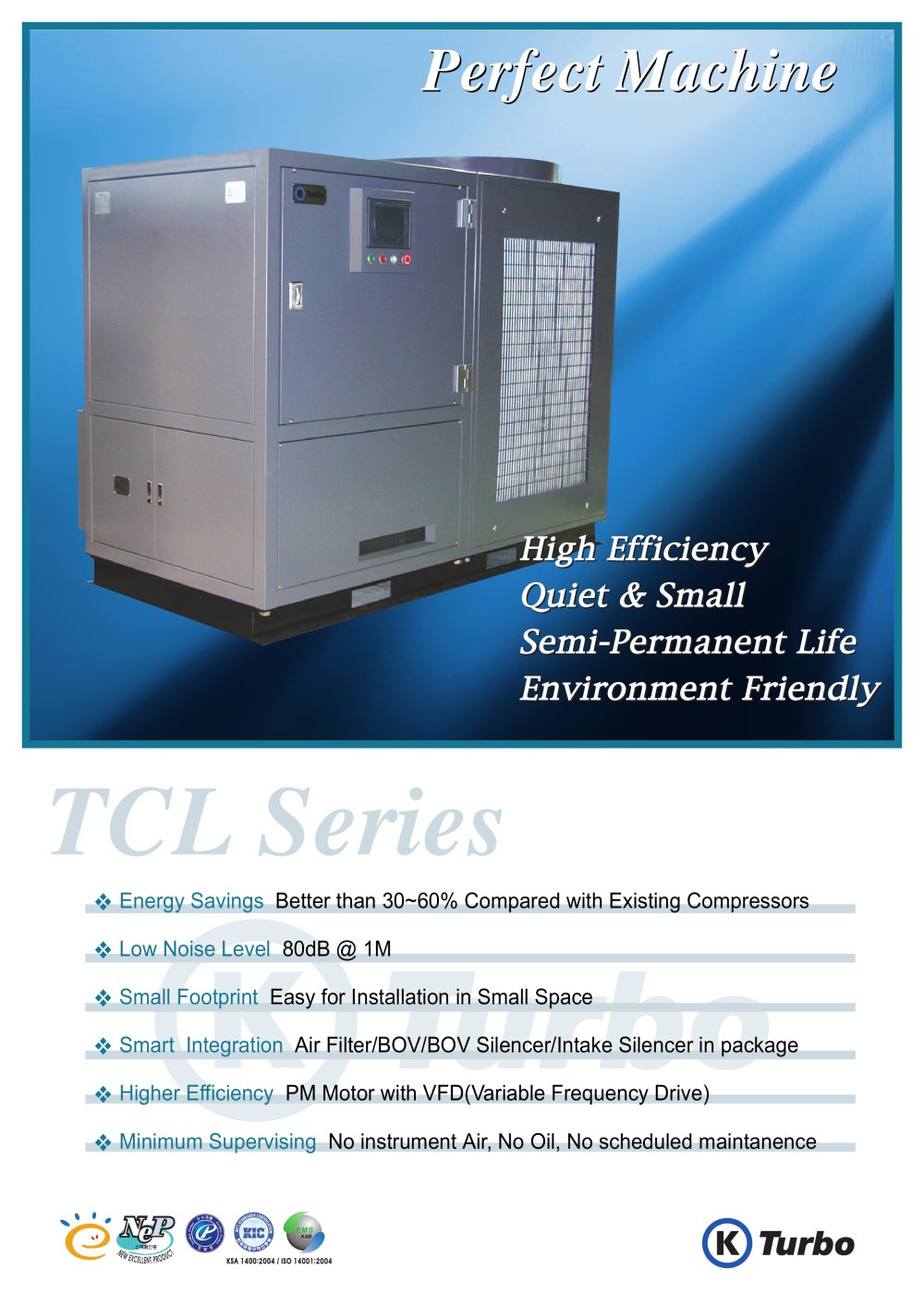

Low Pressure Turbo Compressor-1

High H High EfficiencyQuiet EfficiencyQuiet & & SmallSemi-Permanent SmallSemi-Permanent LifeEnvironment LifeEnvironment Friendly Friendly > Energy Savings Better than 30~60% Compared with Existing Compressors Low Noise Level 80dB @ 1M Small Footprint Easy for Installation in Small Space Smart Integration Air Filter/BOV/BOV Silencer/Intake Silencer in package Higher Efficiency PM Motor with VFD(Variable Frequency Drive) Minimum Supervising No instrument Air, No Oil, No scheduled maintanence size="-1">

 Open the catalog to page 1
