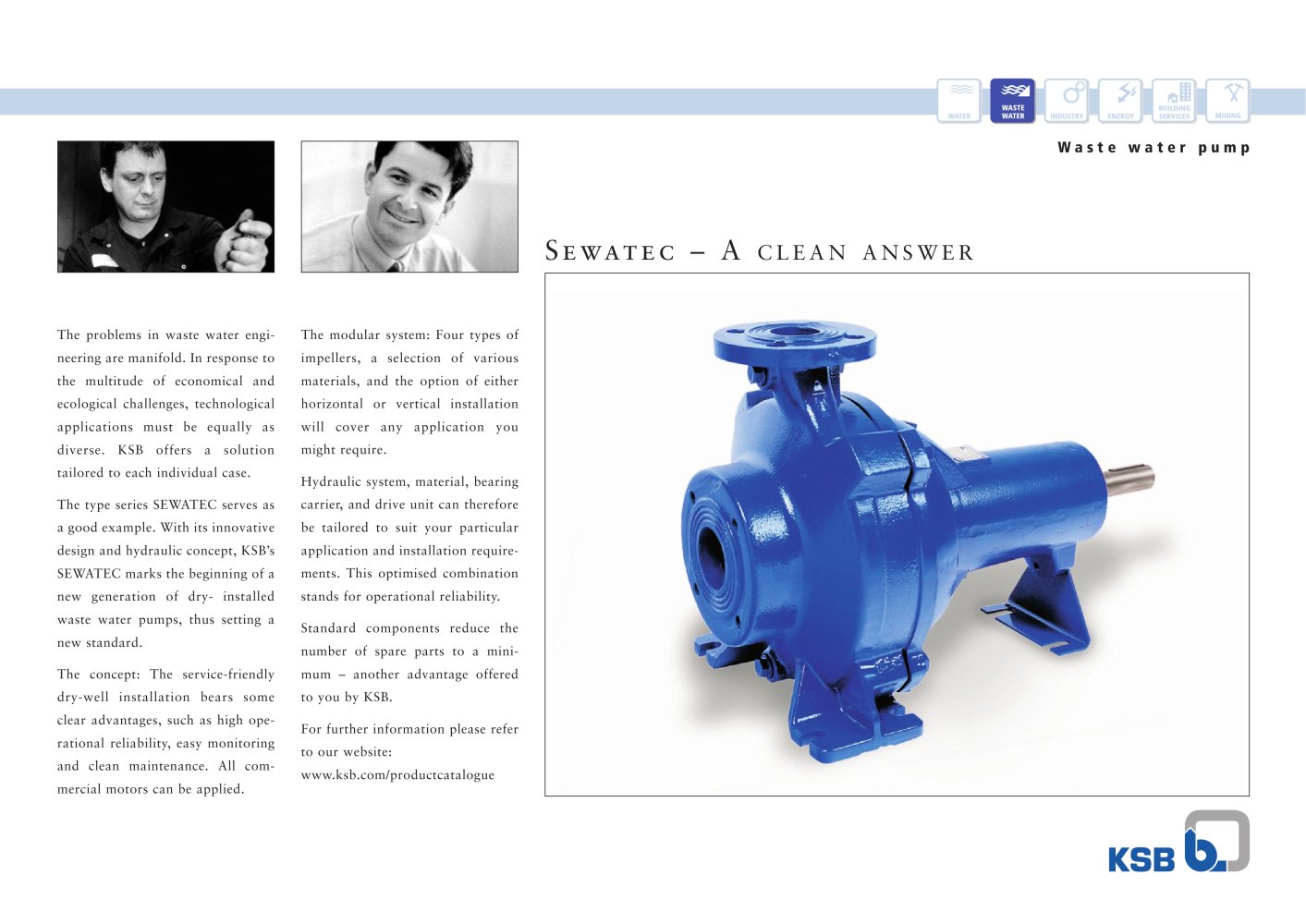

Sewatec double-sided product leaflet - 1

Sewatec – A CLEAN ANSWER Wa s t e w a t e r p u m p The problems in waste water engineering are manifold. In response to the multitude of economical and ecological challenges, technological applications must be equally as diverse. KSB offers a solution tailored to each individual case. The type series SEWATEC serves as a good example. With its innovative design and hydraulic concept, KSB’s SEWATEC marks the beginning of a new generation of dry- installed waste water pumps, thus setting a new standard. The concept: The service-friendly dry-well installation bears some clear advantages, such as high operational reliability, easy monitoring and clean maintenance. All commercial motors can be applied. The modular system: Four types of impellers, a selection of various materials, and the option of either horizontal or vertical installation will cover any application you might require. Hydraulic system, material, bearing carrier, and drive unit can therefore be tailored to suit your particular application and installation requirements. This optimised combination stands for operational reliability. Standard components reduce the number of spare parts to a minimum – another advantage offered to you by KSB. For further information please refer to our website: www.ksb.com/productcatalogue

Open the catalog to page 1

Sewatec double-sided product leaflet - 2

Technical Data: Size: 50 to 500 (700) Max. flow rate: 1400 l/s Max. head: 90m Max. discharge pressure: 10 bar Max. temperature: +60°C Installation variants Low Maintenance Grease-packed rolling element bearings sealed for life. Cost Reduction Standard components ensure interchangeability within the entire type series of submersible motor pumps Amarex KRT, thus optimising spare parts management. High Operational Reliability Double-acting mechanical seals in tandem arrangement with oil reservoir ensure leakproof seal. •–––––––––––––––––––––––––––––––––––––––• •–––––––––––––––•...
