Rio/Rio Z

Rio/Rio Z
32Pages

Catalog excerpts

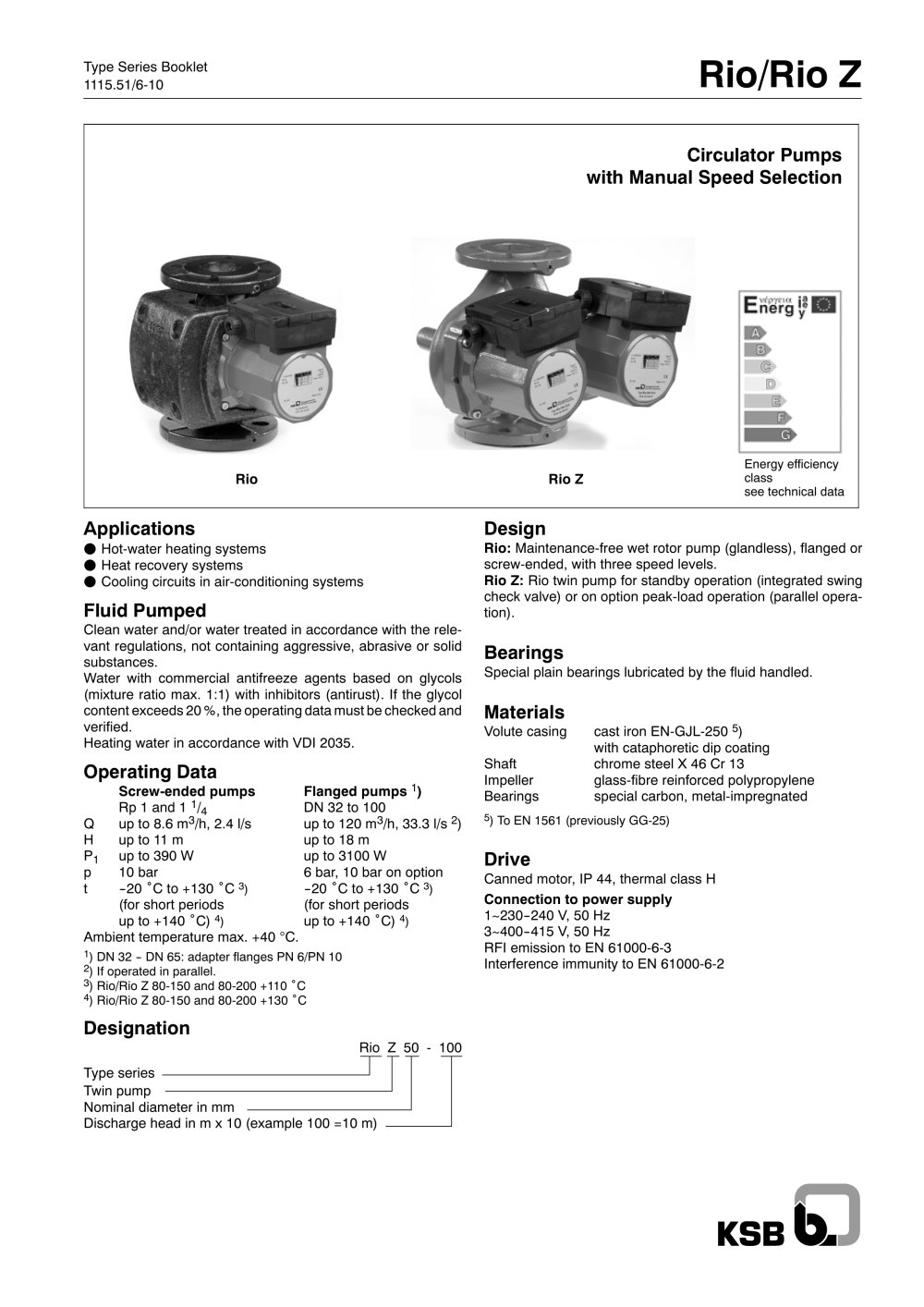

Rio Rio Z Energy efficiency class see technical data Type Series Booklet 1115.51/6-10 Rio/Rio Z Circulator Pumps with Manual Speed Selection Applications F Hot-water heating systems F Heat recovery systems F Cooling circuits in air-conditioning systems Fluid Pumped Clean water and/or water treated in accordance with the relevant regulations, not containing aggressive, abrasive or solid substances. Water with commercial antifreeze agents based on glycols (mixture ratio max. 1:1) with inhibitors (antirust). If the glycol content exceeds 20 %, the operating datamust be checked and verified. Heating water in accordance with VDI 2035. Operating Data Screw-ended pumps Flanged pumps 1) Rp 1 and 1 1/4 DN 32 to 100 Q up to 8.6m3/h, 2.4 l/s up to 120 m3/h, 33.3 l/s 2) H up to 11 m up to 18m P1 up to 390 W up to 3100 W p 10 bar 6 bar, 10 bar on option t --20°C to +130 °C 3) --20 °C to +130 °C 3) (for short periods (for short periods up to +140 °C) 4) up to +140 °C) 4) Ambient temperature max. +40 °C. 1) DN 32 -- DN 65: adapter flanges PN 6/PN 10 2) If operated in parallel. 3) Rio/Rio Z 80-150 and 80-200 +110 °C 4) Rio/Rio Z 80-150 and 80-200 +130 °C Designation Rio Z 50 - 100 Type series Twin pump Nominal diameter in mm Discharge head in m x 10 (example 100 =10 m) Design Rio: Maintenance-free wet rotor pump (glandless), flanged or screw-ended, with three speed levels. Rio Z: Rio twin pump for standby operation (integrated swing check valve) or on option peak-load operation (parallel operation). Bearings Special plain bearings lubricated by the fluid handled. Materials Volute casing cast iron EN-GJL-250 5) with cataphoretic dip coating Shaft chrome steel X 46 Cr 13 Impeller glass-fibre reinforced polypropylene Bearings special carbon, metal-impregnated 5) To EN 1561 (previously GG-25) Drive Canned motor, IP 44, thermal class H Connection to power supply 1~230--240 V, 50 Hz 3~400--415 V, 50 Hz RFI emission to EN 61000-6-3 Interference immunity to EN 61000-6-2

Open the catalog to page 1

Rio Rio Z Rio/Rio Z 2 Selection Chart, Single Pumps 2800 rpm Selection Chart, Twin Pumps 2800 rpm The characteristic curves refer to parallel operation of both pumps.

Open the catalog to page 2

Heat insulation Pump casing Terminal box Impeller Cartridge Motor Reduction in logistics and storage costs -- Flexible installation options thanks to PN 6 / PN 10 adapter (oval bolt hole) flange (up to DN 65) Energy-saving -- Highly efficient impeller -- Heat insulation as standard Reliable operation -- Shaft made of corrosion-resistant chrome nickel steel -- Rotor with corrosion-proof protective sleeve -- Canned motor with condensation-proof winding Low operating costs -- Carbon bearings wear-resistant and safe to run dry for short intervals Rio/Rio Z 3 Modular Design Principle Sectional...

Open the catalog to page 3

Rio 25-50 Rio 30-50 1~230 V -- Rp1/Rp11/4 Rio 25-50 Rio 30-50 3~400 V -- Rp1/Rp11/4 Rio 25-70 Rio 30-70 1~230 V -- Rp1/Rp11/4 Rio 25-70 Rio 30-70 3~400 V -- Rp1/Rp11/4 Rio/Rio Z 4 Single Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 4

Rio 25-100 Rio 30-100 1~230 V -- Rp1/Rp11/4 Rio 25-100 Rio 30-100 3~400 V -- Rp1/Rp11/4 Rio 30-40 1~230 V -- Rp11/4 Rio 30-40 3~400 V -- Rp11/4 Rio/Rio Z 5 Single Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 5

Rio 40-40 1~230 V -- DN 40 Rio 40-40 3~400 V -- DN 40 Rio 40-70 1~230 V -- DN 40 Rio 40-70 3~400 V -- DN 40 Rio/Rio Z 6 Single Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 6

Rio 40-100 3~400 V -- DN 40 Rio 40-150 3~400 V -- DN 40 Rio 50-40 1~230 V -- DN 50 Rio 50-40 3~400 V -- DN 50 Rio/Rio Z 7 Single Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 7

Rio 50-70 3~400 V -- DN 50 Rio 50-100 3~400 V -- DN 50 Rio 50-150 3~400 V -- DN 50 Rio 65-70 3~400 V -- DN 65 Rio/Rio Z 8 Single Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 8

Rio 65-100 3~400 V -- DN 65 Rio 65-130 3~400 V -- DN 65 Rio 65-150 3~400 V -- DN 65 Rio 80-70 3~400 V -- DN 80 Rio/Rio Z 9 Single Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 9

Rio 80-100 3~400 V -- DN 80 Rio 80-150 3~400 V -- DN 80 Rio 80-200 3~400 V -- DN 80 Rio 100-100 3~400 V -- DN 100 Rio/Rio Z 10 Single Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 10

Rio Z 30-50 1~230 V -- Rp 1 1 /4 Rio Z 30-50 1~230 V -- Rp 1 1 /4 Single pump operation Parallel operation Rio Z 30-50 3~400 V -- Rp 1 1 /4 Rio Z 30-50 3~400 V -- Rp 1 1 /4 Rio/Rio Z 11 Twin Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 11

Rio Z 32-70 1~230 V -- DN 32 Rio Z 32-70 1~230 V -- DN 32 Single pump operation Parallel operation Rio Z 32-70 3~400 V -- DN 32 Rio Z 32-70 3~400 V -- DN 32 Rio/Rio Z 12 Twin Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 12

Rio Z 32-100 1~230 V -- DN 32 Rio Z 32-100 1~230 V -- DN 32 Single pump operation Parallel operation Rio Z 32-100 3~400 V -- DN 32 Rio Z 32-100 3~400 V -- DN 32 Rio/Rio Z 13 Twin Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 13

Rio Z 40-30 1~230 V -- DN 40 Rio Z 40-30 1~230 V -- DN 40 Single pump operation Parallel operation Rio Z 40-30 3~400 V -- DN 40 Rio Z 40-30 3~400 V -- DN 40 Rio/Rio Z 14 Twin Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 14

Rio Z 40-70 1~230 V -- DN 40 Rio Z 40-70 1~230 V -- DN 40 Single pump operation Parallel operation Rio Z 40-70 3~400 V -- DN 40 Rio Z 40-70 3~400 V -- DN 40 Rio/Rio Z 15 Twin Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 15

Rio Z 40-100 3~400 V -- DN 40 Rio Z 40-100 3~400 V -- DN 40 Single pump operation Parallel operation Rio Z 40-150 3~400 V -- DN 40 Rio Z 40-150 3~400 V -- DN 40 Rio/Rio Z 16 Twin Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 16

Rio Z 50-70 3~400 V -- DN 50 Rio Z 50-70 3~400 V -- DN 50 Single pump operation Parallel operation Rio Z 50-100 3~400 V -- DN 50 Rio Z 50-100 3~400 V -- DN 50 Rio/Rio Z 17 Twin Pump Characteristic Curves 2800 rpm = Speed level and çopt.

Open the catalog to page 17

Rio Z 50-150 3~400 V -- DN 50 Rio Z 50-150 3~400 V -- DN 50 Single pump operation Parallel operation Rio Z 65-100 3~400 V -- DN 65 Rio Z 65-100 3~400 V -- DN 65 Rio/Rio Z 18 Twin Pump Characteristic Curves 2800 rpm = Speed level and çopt.
