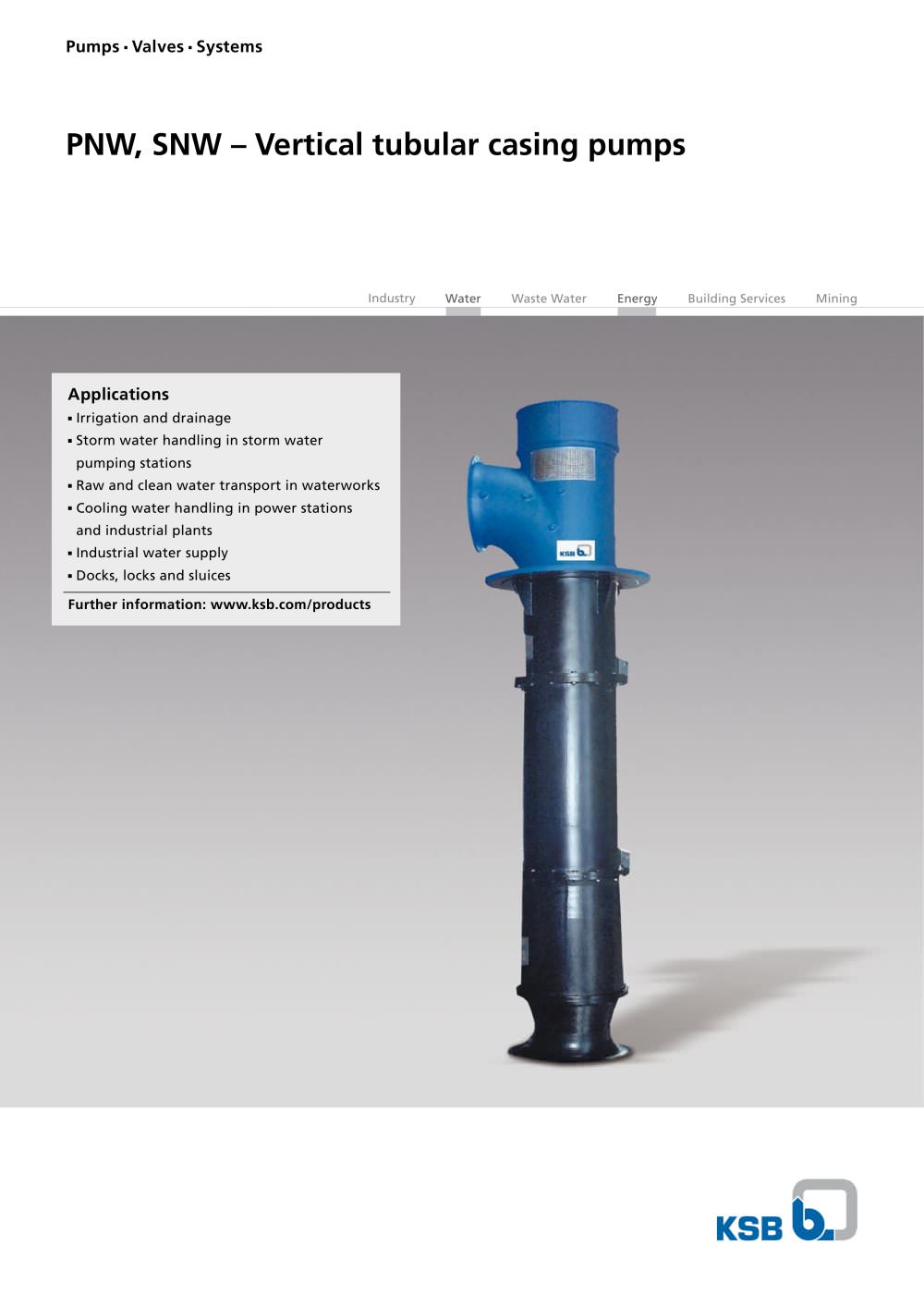

Pumps n Valves n Systems PNW, SNW – Vertical tubular casing pumps Applications n Irrigation and drainage n Storm water handling in storm water pumping stations n Raw and clean water transport in waterworks n Cooling water handling in power stations and industrial plants n Industrial water supply n Docks, locks and sluices Water Waste Water Energy Building Industry Services Mining Further information: www.ksb.com/products
Open the catalog to page 1
1481.021/2-10 04/08 / Subject to technical modification without prior notice / © KSB Aktiengesellschaft 2008 PNW, SNW – Vertical tubular casing pumps Materials* Bellmouth Diffuser element Discharge elbow Riser Motor stool Shaft Impeller Propeller Cast Iron Cast Iron Cast Iron Steel Steel Steel/Stainless steel - Al bronze Max. capacity Max. discharge head Max. fluid temperature Max. speed 2.5 39,600 10 33 60 140 1,450 Easy installation The locating surface in the motor stool simplifies motor mounting and removes the requirement for alignment. Reliable and hard-wearing The sleeve coupling is...
