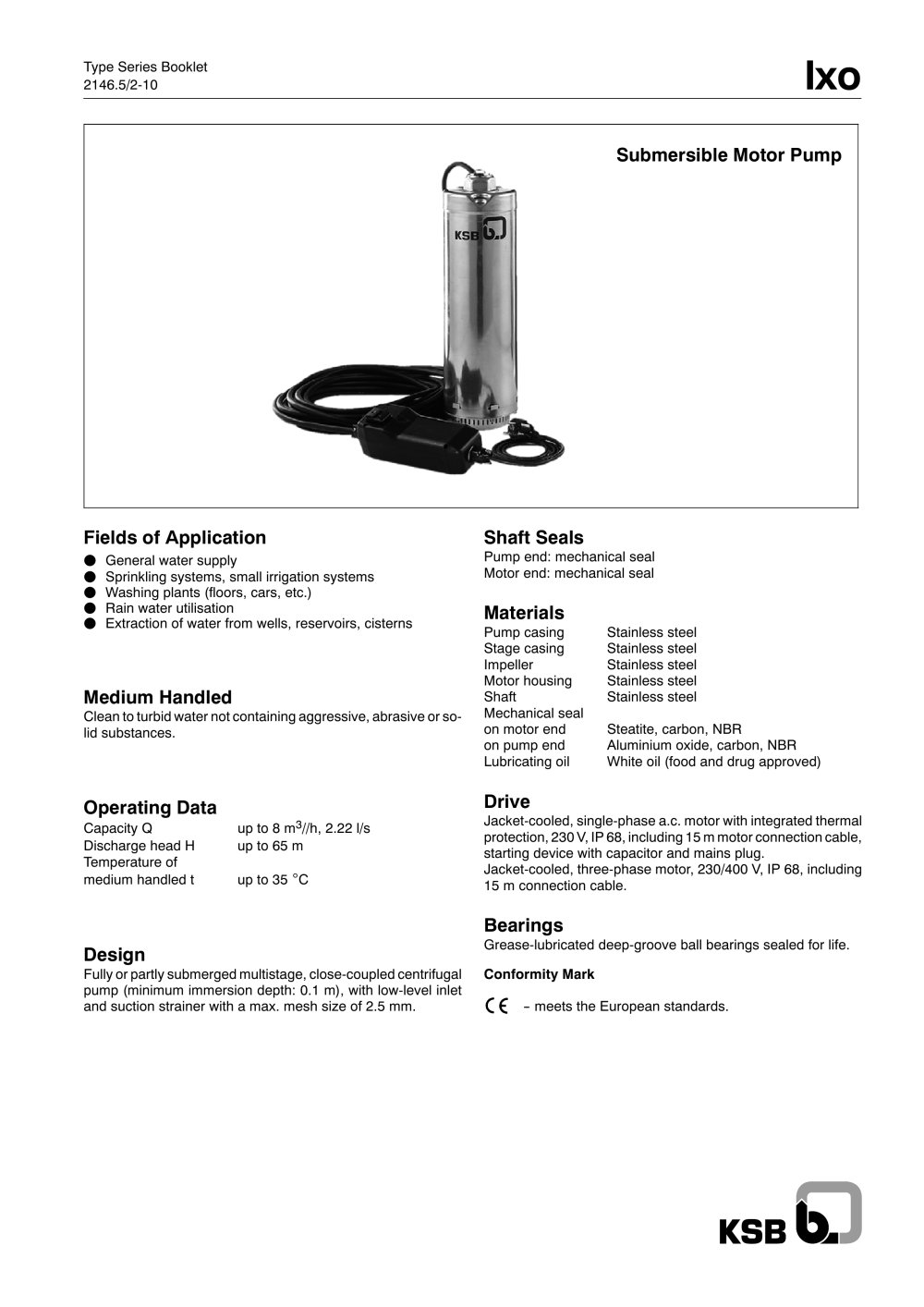

Type Series Booklet 2146.5/2-10 Ixo Submersible Motor Pump Fields of Application F General water supply F Sprinkling systems, small irrigation systems F Washing plants (floors, cars, etc.) F Rain water utilisation F Extraction of water from wells, reservoirs, cisterns Medium Handled Clean to turbid water not containing aggressive, abrasive or solid substances. Operating Data Capacity Q up to 8 m3//h, 2.22 l/s Discharge head H up to 65 m Temperature of medium handled t up to 35 °C Design Fully or partly submerged multistage, close-coupled centrifugal pump (minimum immersion depth: 0.1 m), with low-level inlet and suction strainer with a max. mesh size of 2.5 mm. Shaft Seals Pump end: mechanical seal Motor end: mechanical seal Materials Pump casing Stainless steel Stage casing Stainless steel Impeller Stainless steel Motor housing Stainless steel Shaft Stainless steel Mechanical seal on motor end Steatite, carbon, NBR on pump end Aluminium oxide, carbon, NBR Lubricating oil White oil (food and drug approved) Drive Jacket-cooled, single-phase a.c. motor with integrated thermal protection, 230V, IP 68, including 15mmotor connection cable, starting device with capacitor and mains plug. Jacket-cooled, three-phase motor, 230/400 V, IP 68, including 15 m connection cable. Bearings Grease-lubricated deep-groove ball bearings sealed for life. Conformity Mark -- meets the European standards.

Open the catalog to page 1

1 Power supply cable 1 Discharge line 3 Securing rope 4 Pressure gauge 5 Vent valve 6 Non-return valve 7 Gate valve Pump suspended Minimum immersion depth Horizontal installation Only possible for Ixo 45 and Ixo 48. The pump must be fully submerged. Ixo 3 Typical Installation Pump Accessories kg Stainless steel wire rope 15 m, with fastening elements 42 200 727 1.0 Fastening rope of nylon, 15 m 39 019 788 0.5 Non-return valve made of brass Double socket Rp 1 1/4, internal thread 01 041 318 0.5 Nipple joint made of brass R 1 1/4, external thread (required for direct connection between pump...

Open the catalog to page 3

Product Features to Our Customers’ Benefit Pump casing, stage casing, impeller, motor housing and shaft made of stainless steel Your benefit: D No corrosion problems D Extended service life No max. suction lift constraints since the pump is submerged in the medium handled Your benefit: D No priming time required D No suction hose required D Reliable water supply under unfavourable suction conditions (suction lift, suction line length) D Simple installation and dismantling D Low-noise operation Double-acting mechanical seal Your benefit: D Motor is safely separated from water D Extended...
